Your vehicle at a glance

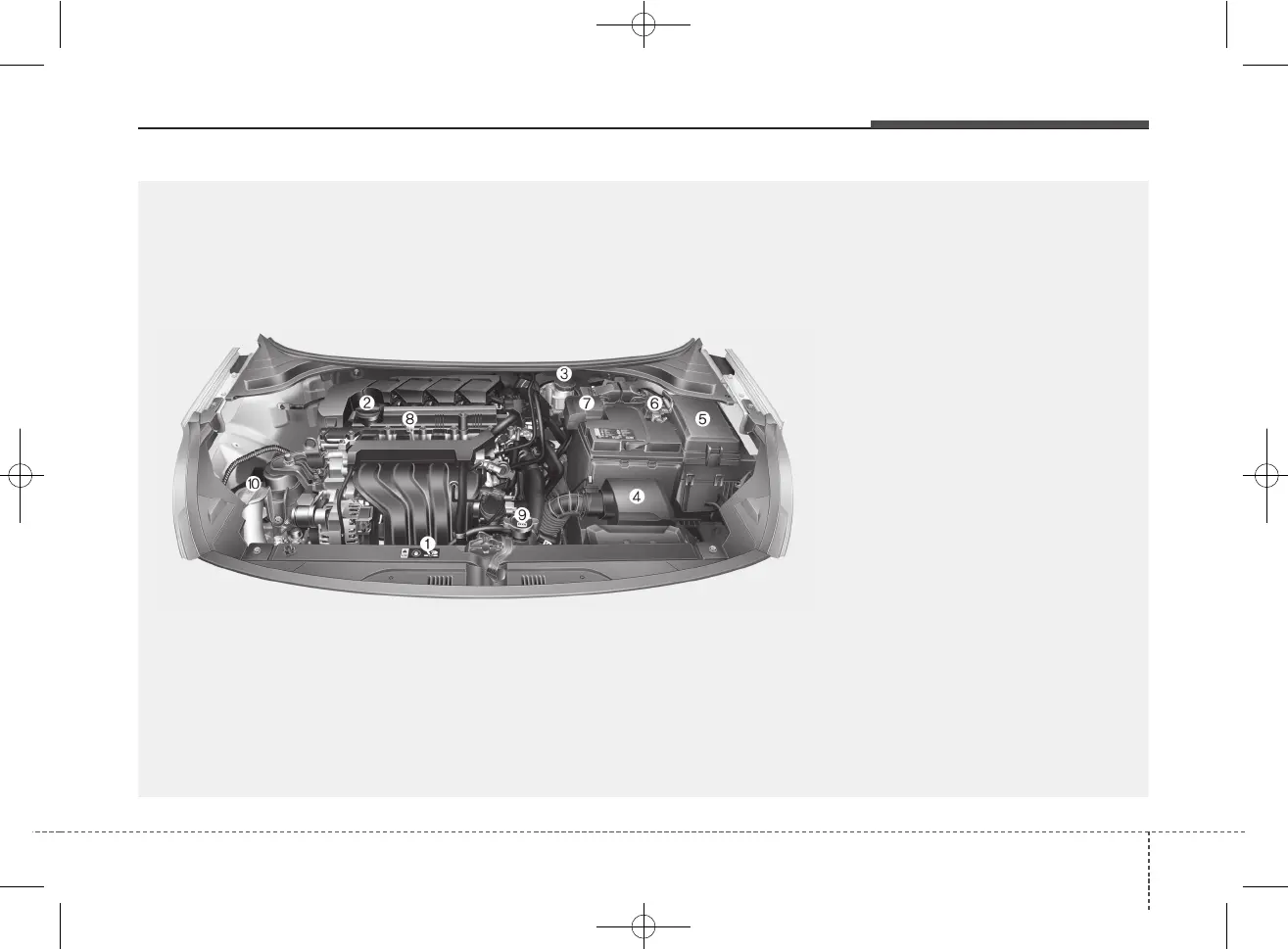

ENGINE COMPARTMENT
OSC078047N
■■
Smartstream G1.6
❈ The actual engine compartment in the vehicle may differ from the illustration.
1. Engine coolant reservoir...................7-25
2. Engine oil filler cap ...........................7-22
3. Brake / clutch fluid reservoir .............7-27
4. Air cleaner.........................................7-31
5. Fuse box ...........................................7-61
6. Negative battery terminal..................7-39
7. Positive battery terminal ...................7-39
8. Engine oil dipstick .............................7-21
9. Radiator cap .....................................7-26
10. Windshield washer fluid reservoir ...7-29
