Maintenance
4. Remove the bulb from the bulb
socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket
5. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
6. Install the socket in the headlamp
assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock
et into the headlamp assembly
and turn the socket clockwise.
7. Install the headlamp bulb cover by
turning it clockwise.

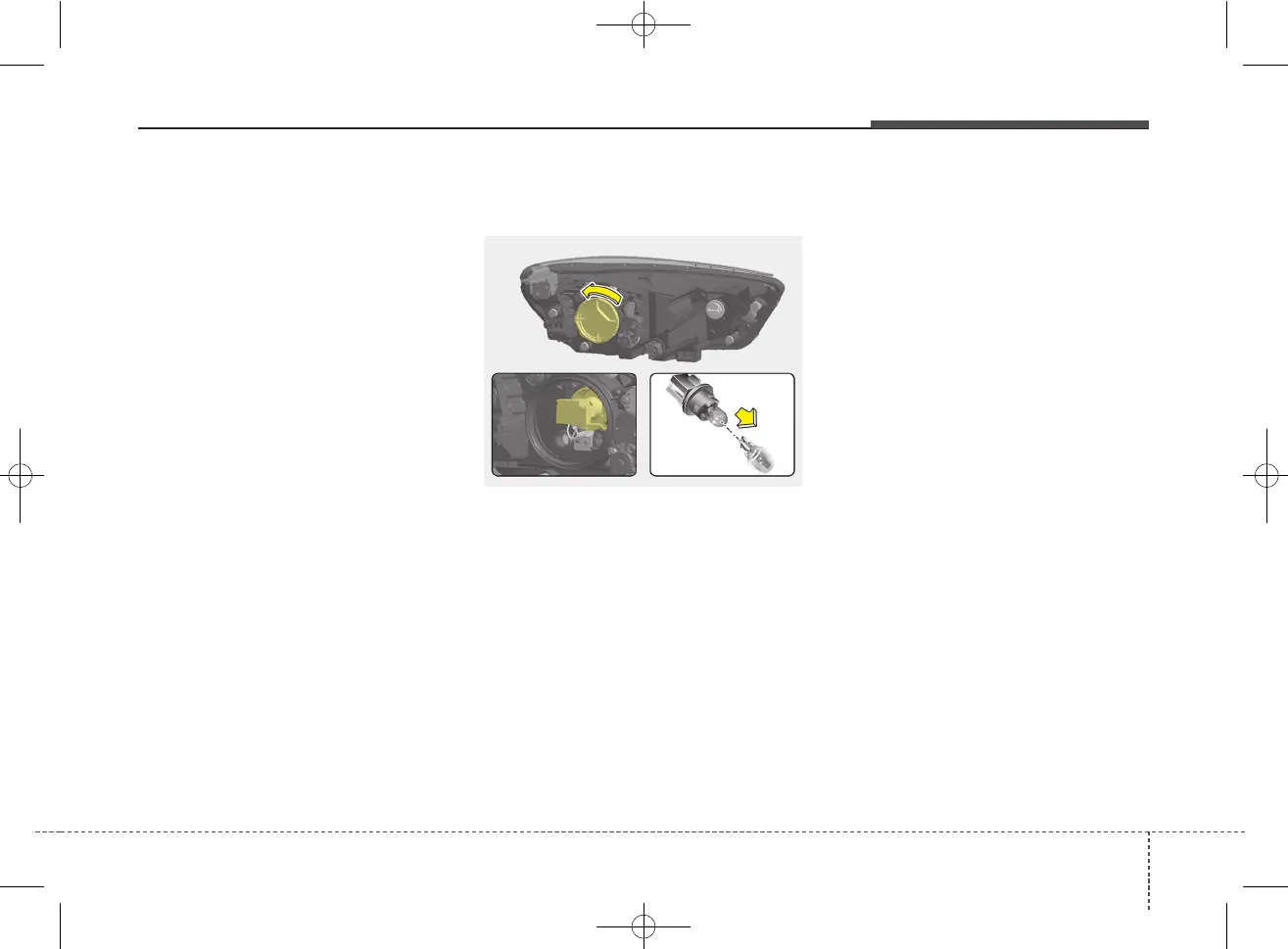

Position lamp bulb replace-
ment (Headlamp Type A)
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Remove the bulb-socket from the
headlamp assembly by turning the
bulb socket counterclockwise until
the tabs on the bulb socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from bulb socket
by pulling it out.
5. Insert a new bulb by inserting it
into the bulb socket.
6. Install the bulb socket in the head-
lamp assembly by aligning the
tabs on the bulb socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
7. Install the headlamp bulb cover by
turning it clockwise.
OSC070050N
