Chapter 1
:
Install
ation and wiring
P/N 3102351
-
EN • REV 005 • ISS 28DEC18
9
Table
3
: Batteries for
VS1
and
VS4
pan
els
Model
Rating
12V4A
12 volts
, 4.5 Ah
12V6A5
12 volts
, 7.2 Ah
12V10A
12 volts, 11 Ah
12V17A
12 volts
, 18 Ah
12V24A
12 volts, 26 Ah

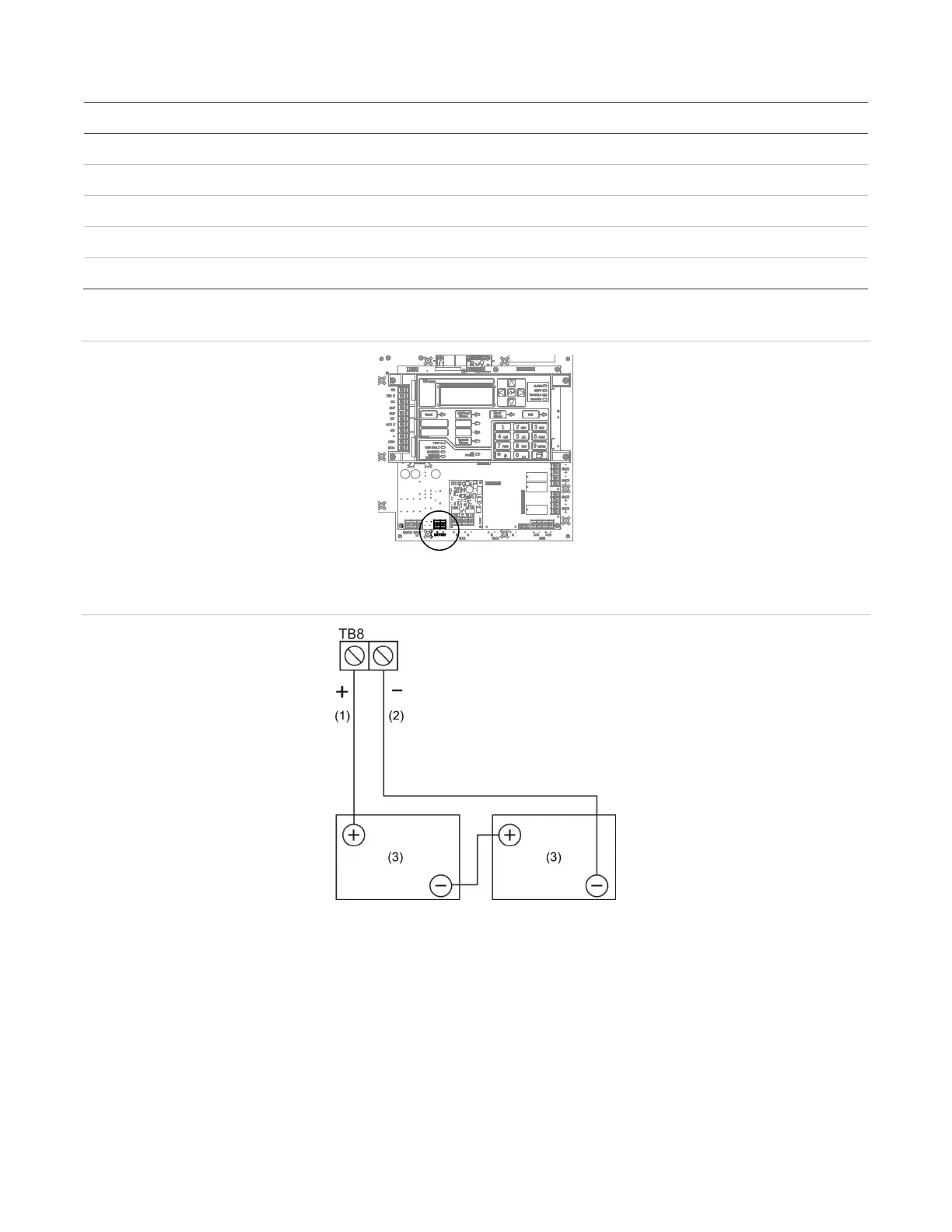

Figure
8
: Batte
ry wiring location
Figure
9
: Batte
ry wiring
(
1
)
Red
(
2
)
Black
(3)
12 VDC b
atter
y
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
Important Information
6
Minimum System Requirements
9
To Get Started
9
Chapter 1 Installation and Wiring
11
Panel Backbox Installation
12
Panel Electronics Installation
14
Panel Backbox Wire Routing
15
AC Power Wiring
16
Panel Transformer Wiring
17
Battery Wiring (TB8)
18
Notification Appliance Circuit Wiring (TB2)
20
Addressable Device Loop Wiring
22
Alarm, Trouble, and Supervisory Relay Wiring (TB3)
26
Remote Annunciator Wiring (TB4)
27
Auxiliary/Smoke Power Output Wiring
29
SA-DACT Wiring
31
SA-232 Wiring
33
SA-CLA Wiring
36
SA-ETH Wiring
37
CTM Module Wiring
38
RPM Module Wiring
40
Chapter 2 Front Panel Programming
43
UL/ULC Programming Requirements
45
Getting Started
47
Device Type Descriptions
59
Displaying the Program Menu
69
Setting the Time and Date
69
Setting Daylight Saving Time
70
Changing the Passwords
71
Restoring the Factory Default Settings
71
Setting up the Programmable Keys
72
Clearing the Event History Log
75
Updating the Firmware
76
Enabling RS-232 Communication
77
Restarting the Panel
77
Auto Programming the Panel
78
Performing Incremental Programming
84
Adding and Removing Devices from Programmed Systems
87
Advanced Programming
91
Device Programming
101
Chapter 3 System Operation
135
System Operation
135
Operation Overview
137
LCD Display Screen
138
System Leds
142
LED Display Expander Leds
143
Control Buttons
144
Component Descriptions
148
Events with Event Messages
149
Event ID Numbers and Descriptions
152
Resetting the Panel
157
Viewing Event Details
157
Silencing Notification Appliances
158
Silencing Panel and Annunciator Buzzers
158
Activating and Restoring Output Devices
160
Conducting a Lamp Test
160
Activating and Restoring Panel Nacs
161
Unlatching Latched Output Devices
161
Activating and Restoring Sensor Bypass
162
Activating and Restoring Gas Accelerated Response
163
Disabling and Enabling Devices
163
Disabling and Enabling Zones
164
Disabling and Enabling Panel Events
165
Disabling and Enabling Loop Events
167
Disabling and Enabling Panel Nacs
168
Disabling and Enabling the Dialer and Network
169
Initiating a Fire Drill
169
Conducting a Walk Test
170
Chapter 4 Reports
173
Reports
173
Basic Steps for Viewing and Printing Reports
174
History Report
174
Walk Test Report
175
Device Maintenance Report
176
Correlation Group Configuration Report
177
Correlation Groups Report
177
System Status Report
177
System Configuration Report
178
Zone Report
178
Device Details Report
179
Internal Status Report
179
Diagnostics Reports
180
Internal Fault Report
181
Canceling a Report
182
Releasing Report
182
Chapter 5 Diagnostics, Maintenance, and Testing
183
Preventive Maintenance Schedule
184
Flash Device LED
185
Control Panel Testing
186
Electronic Testing of a Device (Test Fire)
187
SA-DACT Testing
188
Conducting a Lamp Test
189
Using Hyperterminal
191
Replacing a Device in Alarm
193
Appendix A Panel Specifications
195
Control Panel Specifications
196
Appendix B Worksheets
199
Battery Calculation Worksheet
200
Notification Appliance Circuit Calculations Worksheet
204
Notification Appliance Voltage Drop Calculation Worksheet
210
RZI16-2 24V in Riser Maximum Wire Run Calculation
212
Device Loop Maximum Wire Length Worksheet
213
Correlation Groups Worksheet
219
Device Settings Worksheet
220
Loop Worksheet
223
Panel Configuration Worksheet
224
Panel Operation Worksheet
227
Zone Settings Worksheet
228
Appendix C Applications
231
Local Alarm Signaling Applications
232
Correlated Zone and System Alarm Signaling Applications
236
In-Suite Signal Silence Applications
241
Appendix D Device Types to Personality Codes Correlation
247
Appendix E Releasing Module
257
Specifications
260
Index
261
