40 TOS7200
REMOTE Terminal
The REMOTE terminal is a 6-pin mini-DIN connector on the front panel designed to allow
connection of an optional remote control box RC01-TOS or RC02-TOS.
Connecting a remote control box disables the START switch on the front panel.
MEMORY
VOLTAGE
RESISTANCE
TIMER
MEMORY VOLTAGE RESISTANCE TIMER
OUTPUT

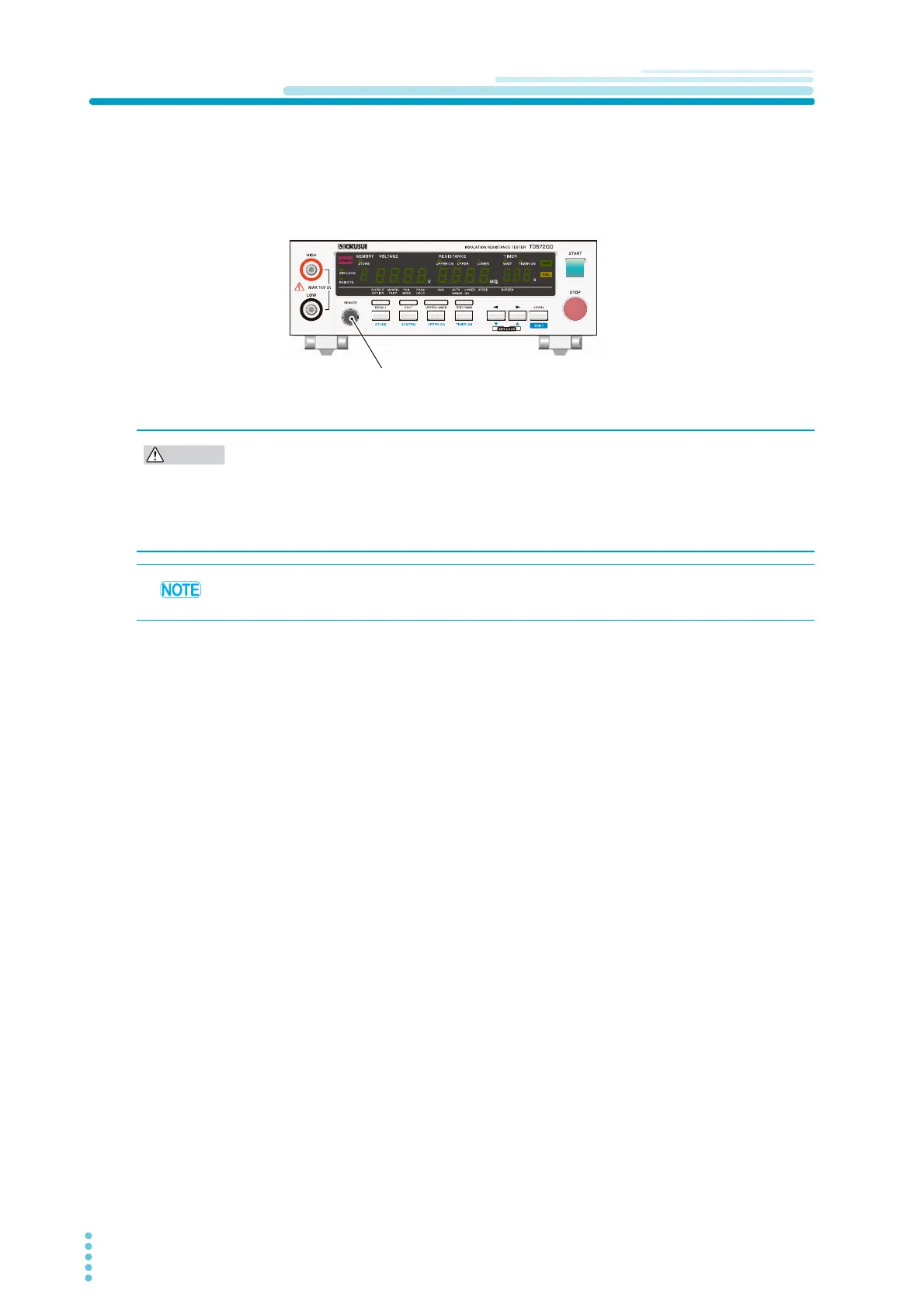

REMOTE terminal
(6-pin mini-DIN connector)
CAUTION
• To prevent damage to the tester, do not connect any component other than the dedicated
remote control boxes to the REMOTE terminal.
• Install signal wires more than 50 cm from the high voltage test leadwire or DUT. Avoid short-
circuiting the test voltage to a signal wire. If the test voltage is short-circuited to a signal
wire, the entire internal circuit may be destroyed.
Connection of a remote-control box to the tester requires the use of a DIN-Mini DIN adapter.
For DD-5P/6P DIN-Mini DIN adapters [84250], contact your Kikusui distributor/agent.
