TOS7200 47
SIGNAL I/O Connector
Recalling the panel memory

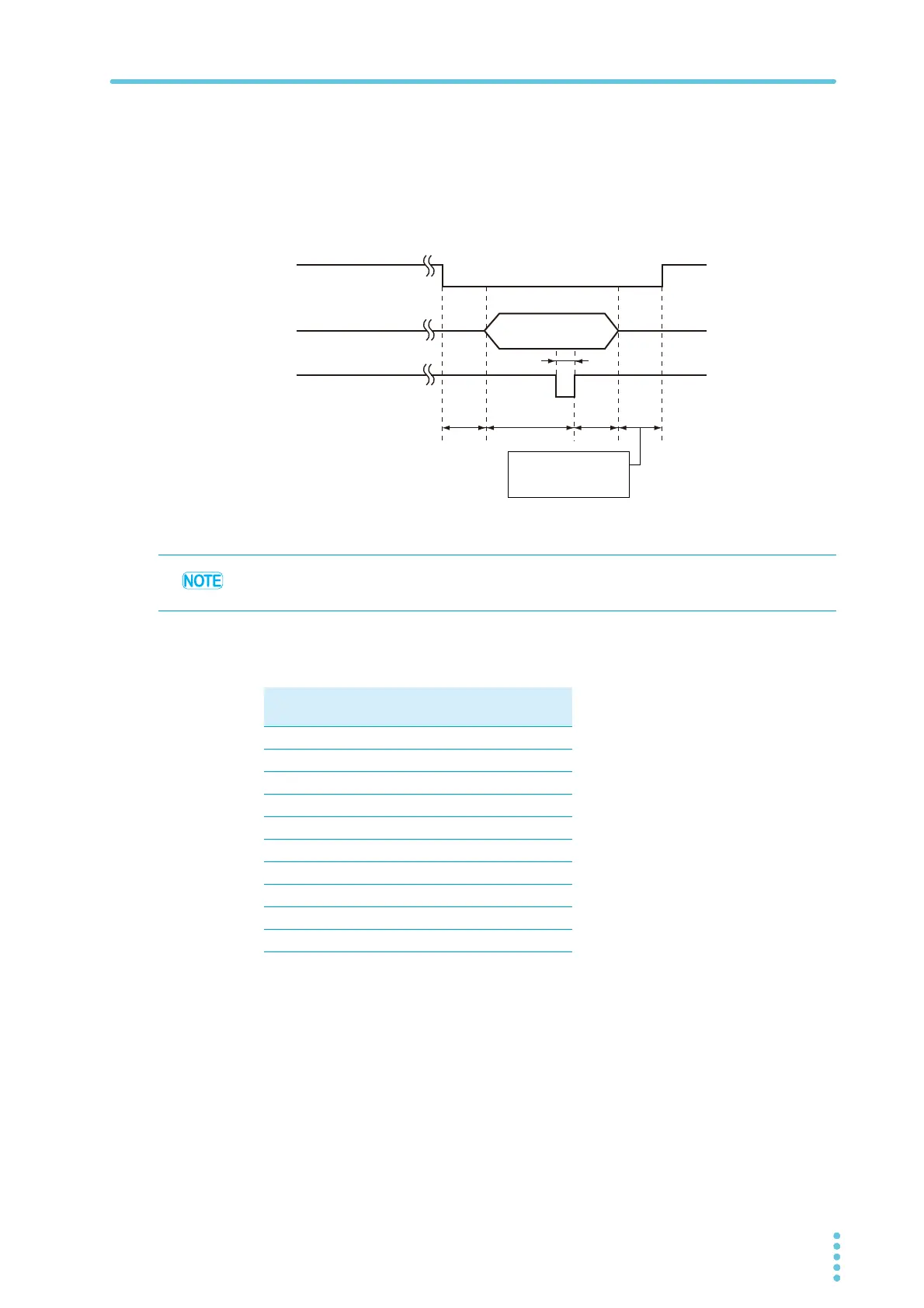

A PM signal and STB signal are processed with the timing specified below (make sure the
READY signal is at the Low level).
The relationship between the PM0 to PM3 signals and the memory numbers actually to be
recalled is as shown in Table below.
PM signals and memory numbers to be recalled
Strobe Signal
READY (OUT)
PM0-PM3 (IN)
STB (IN)
10 ms or more
10 ms
or more
10 ms
or more
5 ms
or more
The next signal input
requires an interval
of 10 ms or more.
The input terminal is pulled up to +12 V using a resistor. Opening the input terminal
effectively creates a high-level input.
PM3 PM2 PM1 PM0 Memory number to
be recalled
HHHH0
HHHL 1
HHL H2
HHL L 3
HL HH4
HL HL 5
HL L H6
HL L L 7
LHHH8
LHHL9
