8 TOS7200

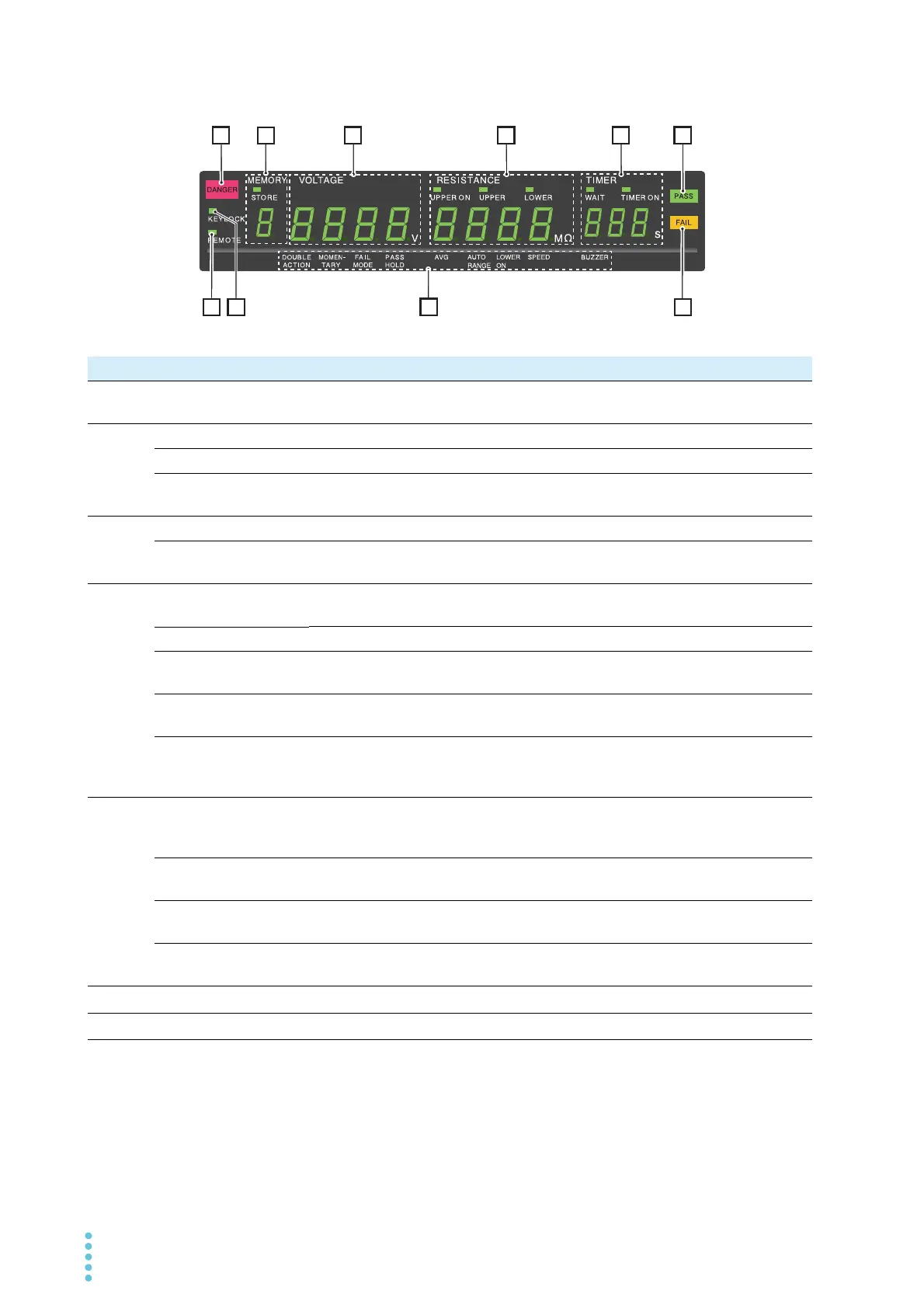

Display
No. Name Description See
1 DANGER lamp On (red) during testing and while voltage resides across the output
terminals.
p. 30
2 MEMORY Indicates panel memory settings. p. 36
STORE LED Lights when settings can be stored to panel memory. —
7-segment LED Indicates the number of a memory into or from which panel settings
are stored or recalled
—
3 VOLTAGE Indicates the test voltage. p. 23
7-segment LED Indicates the output voltage (during testing).
Indicates the test voltage setting (not during testing).
—
4 RESISTANCE Indicates the resistance (during testing).
Indicates the upper limit or lower limit setting (not during testing).
p. 24
UPPER ON LED Lights when the upper judgment is enabled. p. 27
UPPER LED Lights when the upper limit setting is displayed or when the
judgment result is UPPER FAIL.
p. 25
LOWER LED Lights when the lower limit setting is displayed or when the
judgment result is LOWER FAIL.
p. 24
7-segment LED Indicates the resistance measurement during testing (blinks when
the measurement range is exceeded) or indicates the upper or lower
limit setting otherwise.
—
5 TIMER Indicates the test time (during testing).
Indicates the judgment wait time or test time setting (not during
testing).
p. 28
WAIT LED Lit: The 7-segment LED displays the judgment wait time.
Not lit: The 7-segment LED displays the test time.
p. 29
TIMER ON LED Lights when the timer function is on.
Blinks when the judgment wait time is set longer than the test time.
p. 28
7-segment LED Indicates the countdown time when the timer is on and the elapsed
time when the timer is off (during testing).
—
6
PASS lamp
When the result of a pass/fail judgment is PASS, this LED lights.
p. 31
7
FAIL lamp
When the result of a pass/fail judgment is FAIL, this LED lights.
p. 32
