Kinematica MEGATRON MT 3100 S2 - Fittings for Product Inlet & Outlet

INSTRUCTION MANUAL
System
MEGATRON
®
Type
MT 3100 S
2
Issue
3.1 / 29.01.2019
Page
20
of
39
IF YOU DO NOT USE A QUENCH SYSTEM TS1, YOU HAVE TO
CONNECT A FLOW-THROUGH, UNPRESSURIZED COOLING
LIQUID PIPING (E.G. TAP WATER) AND A FLOW RATE ≤ 1 L/MIN

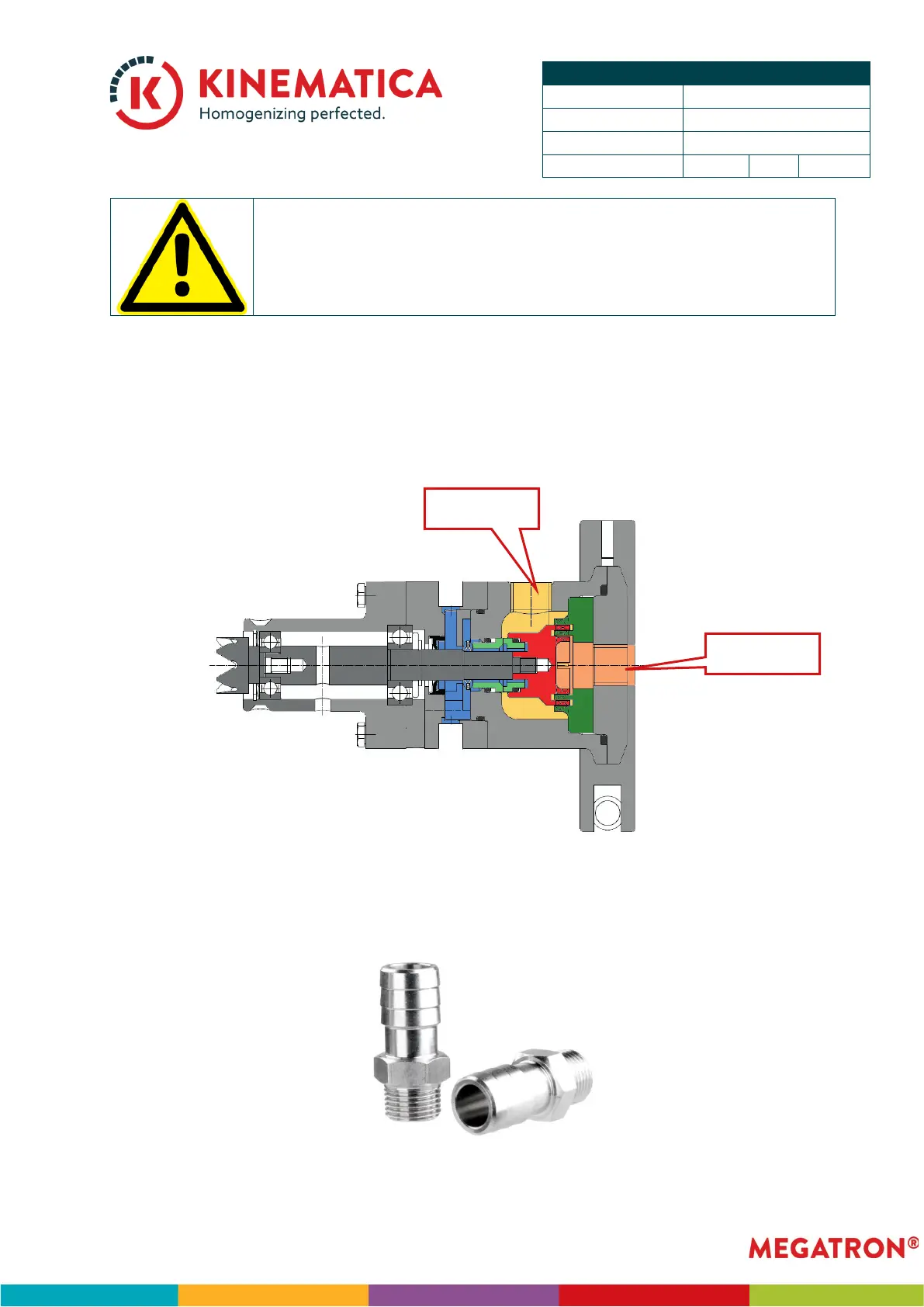

2.2.3 FITTINGS FOR PRODUCT INLET & OUTLET
The standard inlet and outlet connections at the working chamber are inside thread
G1/4”.
The MT 3100 S² working chamber is equipped with tube olive fittings Ø12/8 as stand-
ard. Other fittings available on request.
G1/4”
G1/4”
