Lubrication and Maintenance

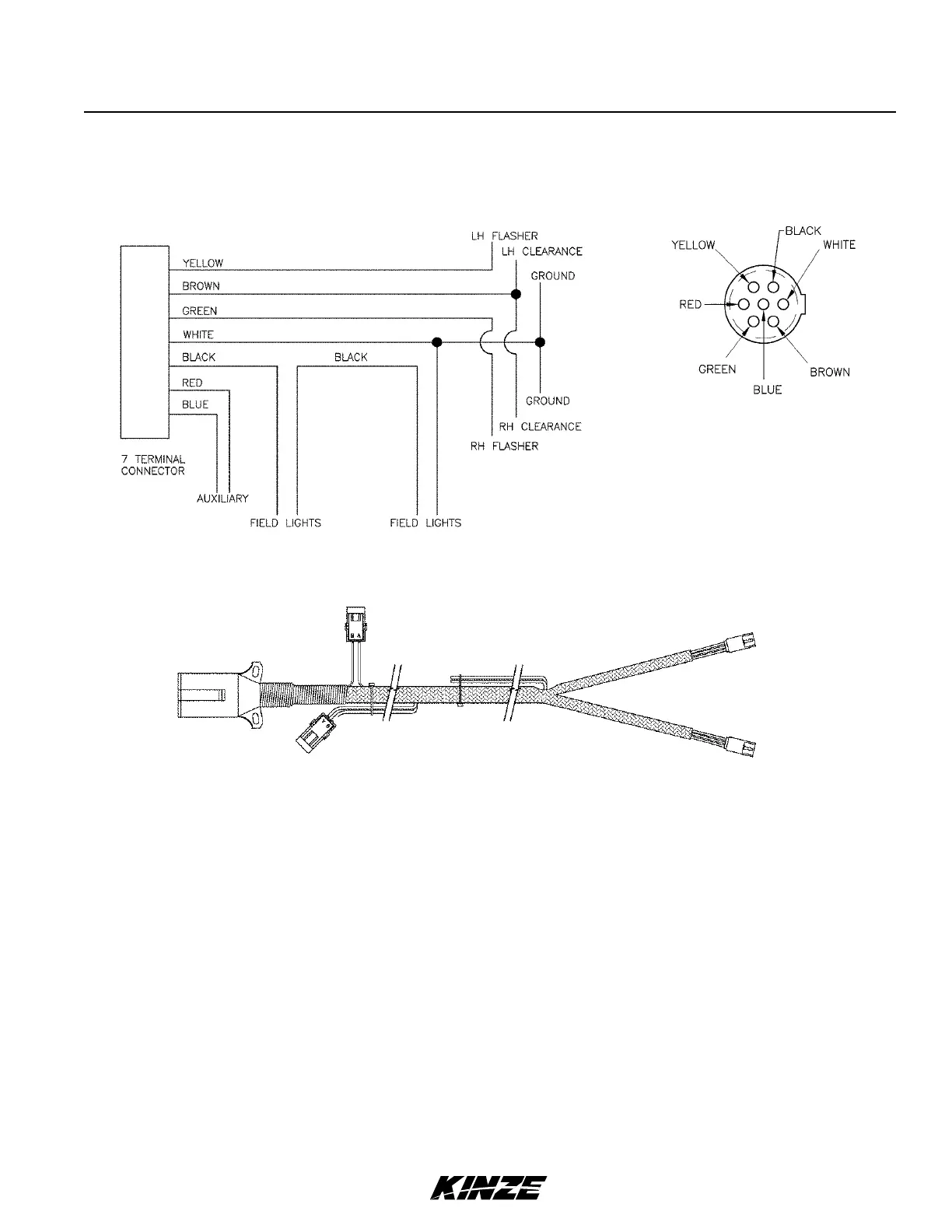

ELECTRICAL WIRING DIAGRAM FOR LIGHT PACKAGE
Machines with double light assemblies
* Optional customer-supplied auxiliary lights and wires may be wired into existing plug terminals.
Model 3600 Twin-Line Planter safety light package meets ASAE Standards. Check with your tractor manufacturer for
proper connection to your tractor.
To 2-pin on tractor harness
(Work light switch)
L.H. flasher/clearance
R.H. flasher/clearance
Work light
