Machine Operation

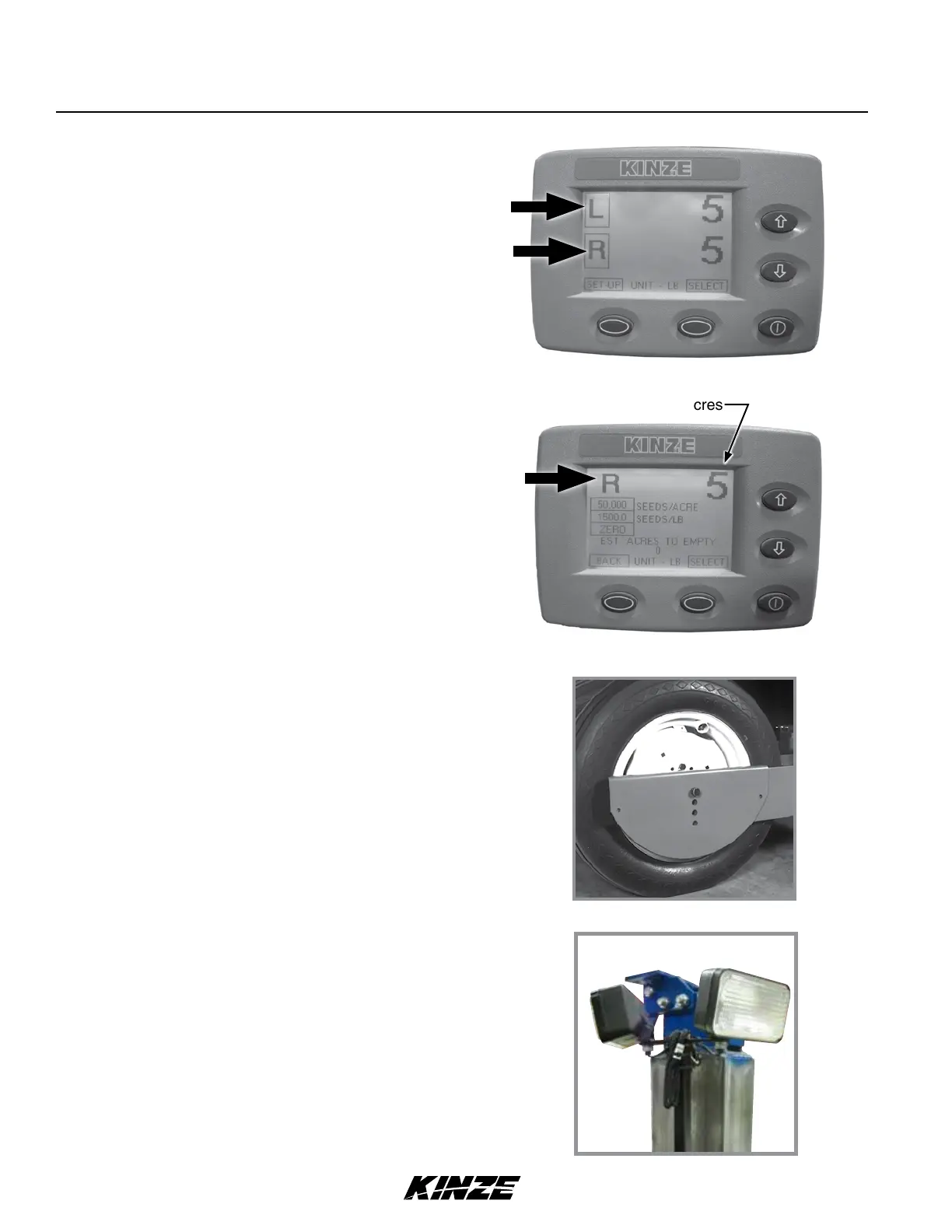

1. Highlight and select either L (left) or R (right) for the
appropriate input screen.
2. At input screen, L or R side is indicated at left side of screen
and seed weight or acres remaining is on right side.
3. Press arrow keys to select desired box; press
SELECT to darken and use arrow keys to change.
NOTE: Seed information entered must be accurate
for remaining estimated acres to calculate correctly.
• SEEDS/ACRE is population rate.
• SEEDS/LB value comes from seed specifications.
• ZERO is selected to zero hopper that is selected.
4. Select BACK to return to main screen.
ENTER SEED INFORMATION
Seed weight or acres
AUXILIARY WORK LIGHTS PACKAGE
Auxiliary work lights package includes two 50 watt, 3" x 5"
halogen flood lamps, mounting hardware, and a wiring harness
to plug into existing planter light harness.
Mounting varies with bulk fill and conventional planters.
Transport wheel rock guards are used on both sides of each
transport wheel when planter is used in rocky conditions.
Rock guards help prevent rocks from being picked up by
wheels and damaging adjoining row units.
ROCK GUARDS
Rock guard
Auxiliary work lights
