Kinze 3600 - FRAME MOUNTED COULTER (PULL ROW ONLY); DOWN PRESSURE ADJUSTMENT

M0259-01Model 3600
3-18
Rev. 9/17
TM
Row Unit Operation
RESIDUE WHEELS (FOR FRAME MOUNTED COULTER)
NOTICE
Tined wheel forward mounting positions cannot be used behind
3600 axles due to limited cklearance.
NOTE: Opening in weed
guard must face down.

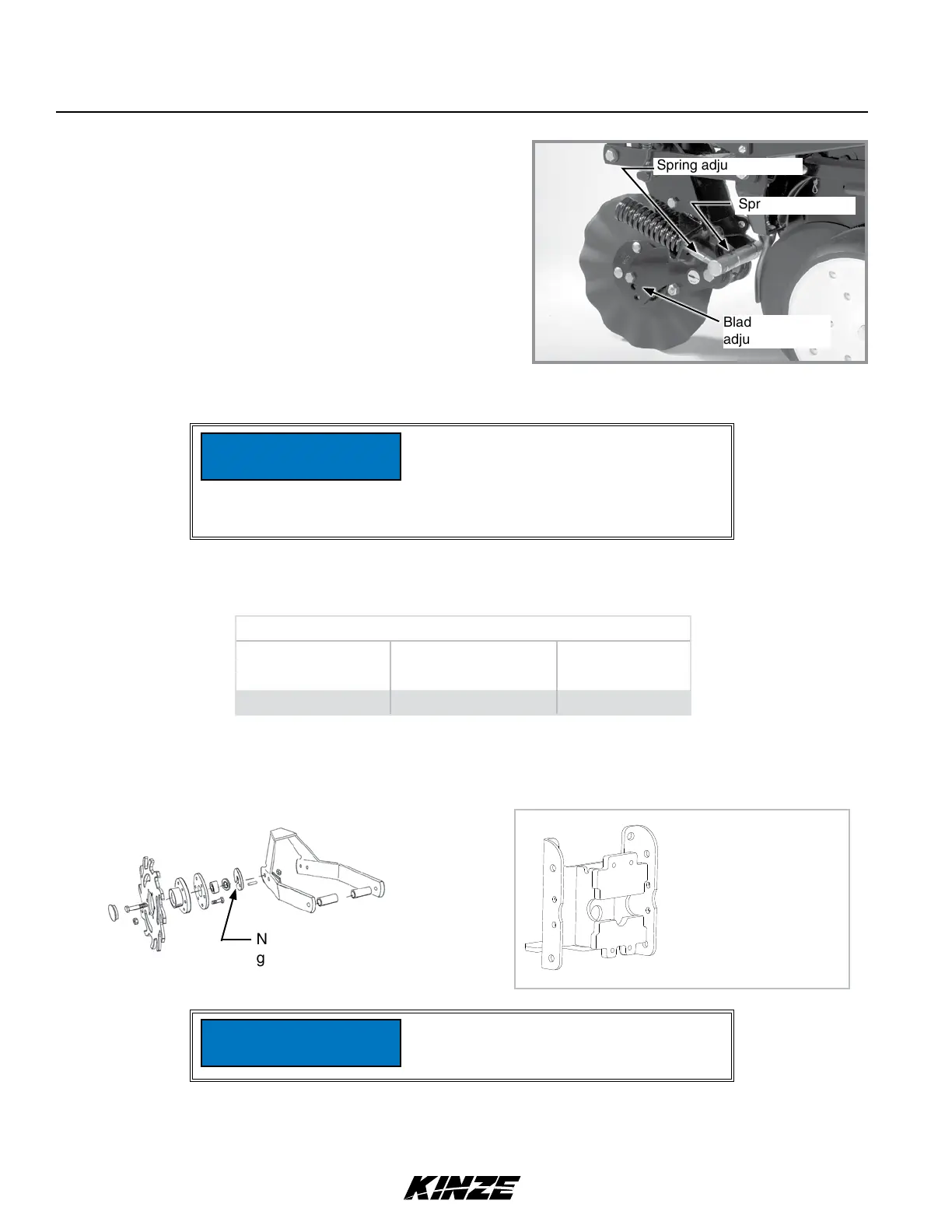

FRAME MOUNTED COULTER (PULL ROW ONLY)
Frame mounted coulters with 1" bubbled, 1" fluted (8 flutes) or ¾"
fluted (13 flutes) blades are used on pull row units only.
Springs provide down pressure on coulter for maximum penetration
while exerting less shock load on row unit.
Initial coulter blade location is in top hole. Relocate blade to one of
lower two holes (1" increments) as wear occurs or for deeper blade
operation.
DOWN PRESSURE ADJUSTMENT
Raise planter. Turn spring adjustment bolts clockwise to increase or counterclockwise to decrease down pressure. Set
both springs to specification shown in following table:
Frame Mounted Coulter Spring Downpressure Settings
End flush with
spring anchor bar
Extended ½" through
spring anchor bar
All threads used
275 lb (124.7 kg) 400 lb (181.4 kg) 500 lb (226.8 kg)
Frame mounted coulter adjustment
Spring adjustment bolt
Spring anchor bar
Blade depth
adjustment holes
NOTE: Four center row
units require special
mount and extension
brackets when using
Frame Mounted Coulter
W/Residue Wheels.
Excessive down pressure can damage
coulter components when coulter strikes
an obstacle. Do not set down pressure
higher than needed for consistent soil
penetration.
NOTICE
Tined wheel forward mounting positions
cannot be used behind 3600 axles due to
limited clearance.
NOTICE
