Kinze 3600 - Tractor Mounted PTO Pump and Oil Cooler Option

TM
Model 3600M0259-01
9/14 2-5
Machine Operation
The tractor mounted PTO pump and oil cooler option is for
tractors with less than required hydraulic output needed
to operate hydraulic-driven vacuum fan and other planter
hydraulic requirements.
A 1000 RPM PTO is required to operate the PTO-driven
hydraulic pump.
PTO pump option consists of a 1"-21 or 1¾"-20 spline 13.5
GPM 2000 psi tractor mounted pump, planter mounted 10
gallon capacity hydraulic reservoir with spin-on 10-micron
oil filter, vacuum fan mounted 15 GPM-rated oil cooler, and
required hydraulic valves, fittings, and hoses.
Vacuum fan assembly
Oil cooler
Hydraulic
motor

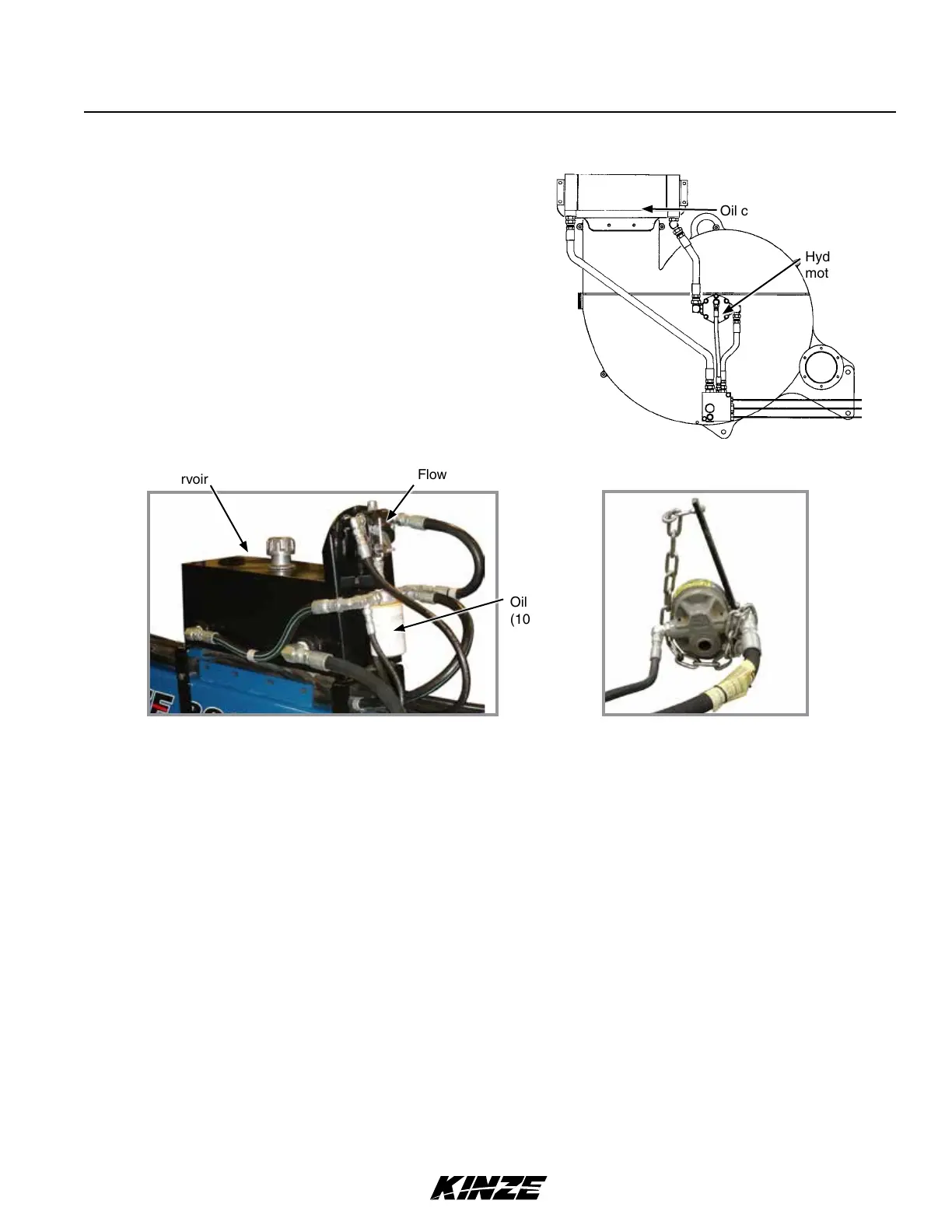

TRACTOR MOUNTED PTO PUMP AND OIL COOLER OPTION
PTO-driven hydraulic pump
(1" spline PTO pump shown)
Flow control valve
Oil filter
(10 Micron)
Reservoir
Hydraulic reservoir, flow control valve, and fittings
