Model 3600M0259-01
9/14 2-23

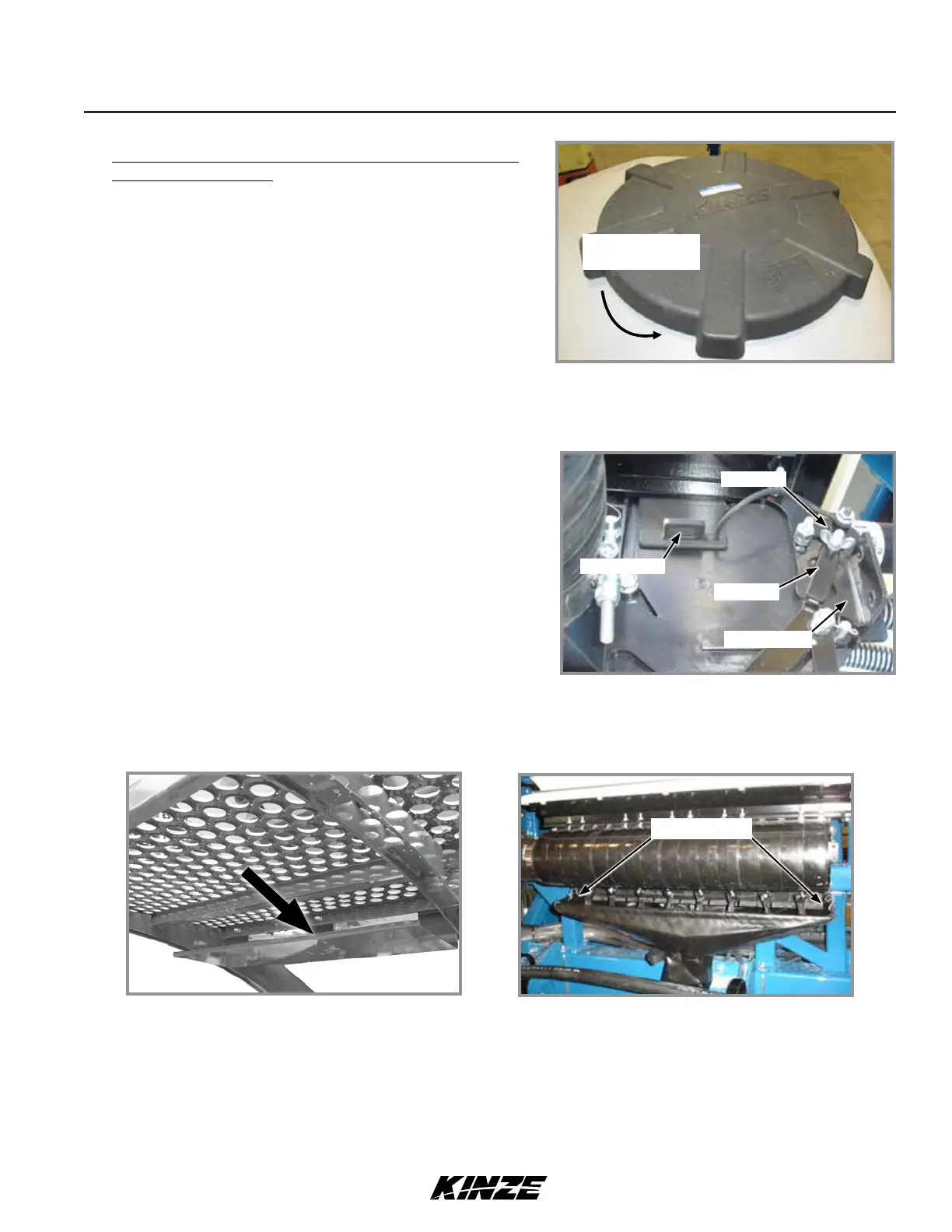

Machine Operation
BULK FILL ENTRAINER ACCESS
1. Shut down bulk fill system.
2. Loosen wing nut and turn retainer holding shutoff door
in its storage location.
3. Remove rubber plug closest to area in entrainer needing
attention.
4. Insert shutoff door into open slot and push into entrainer
at a slight upward angle.
5. When work is complete, remove shutoff door, return door
to storage location, and plug open slot.
Bulk fill entrainer (end view)
Rubber plug
Wing nut
Shutoff door
Retainer
Recommended pressures:
• Corn – 12 inches of water
• Soybeans – 10 inches of water
• Actual pressure needed is affected by seed size, shape, and coating.
Bulk fill tank lid latch
1. Before filling hoppers refer to “Row Unit Operation” for
additives information. Fill hoppers with seed, latch lids,
and secure with pin.
2. Start bulk fill system with tractor engine at idle.
3. Increase engine speed to full and set initial system
pressure using flow control valve.
4. Allow system to warm up and adjust pressure if necessary.
Counterclockwise
to open
BULK FILL TANKS - CLEAN OUT
Cleanout chute storage bracket
1. Remove bulk fill tank cleanout chute from storage location beneath catwalk.
2. Position tube of chute under entrainer and attach hooks on each end of entrainment assembly.
3. Open cleanout doors and empty tank.
4. Close all cleanout doors and return cleanout chute to storage location.
Cleanout chute installed
Chute hooks
