Kinze 3600 - BULK FILL SYSTEM

M0259-01Model 3600
2-22
Rev. 9/17
TM
Machine Operation

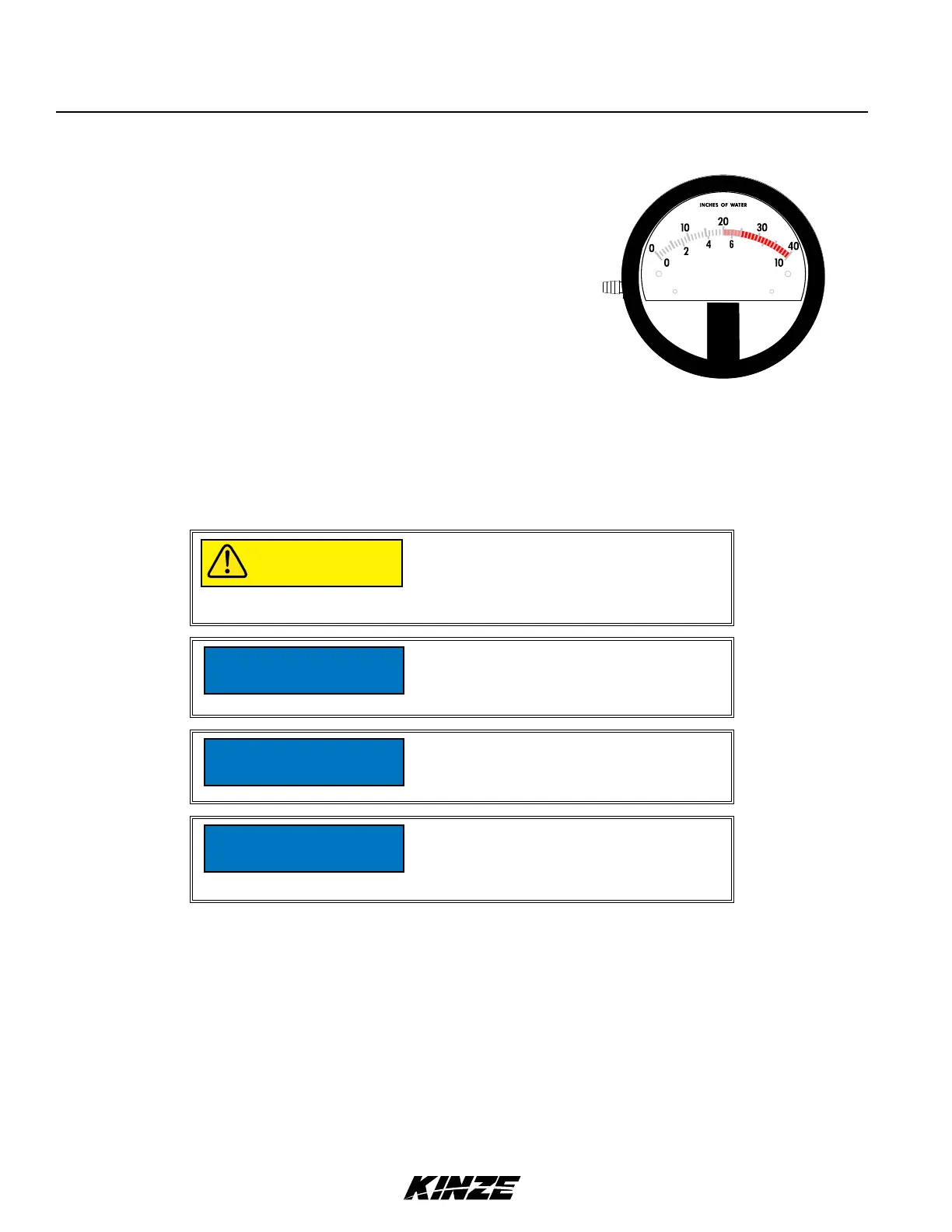

Analog vacuum or pressure gauge connects directly to vacuum
meter (vacuum) or bulk fill (pressure) manifold and is teed into
digital sending units.
Only adjustment is to “zero” needle with no vacuum or
pressure present. If there is a significant difference between
gauge and a reading taken at meters, a different manifold
location should be found to connect hose to gauge and digital
sending unit.
8
KILOPASCALS
MAX PRESSURE 15 PSIG (103 KPA)
ANALOG VACUUM OR PRESSURE GAUGE
Analog Gauge
NOTE: Analog gauges are identical EXCEPT for plug and hose barb locations in side of gauge housing.
DO NOT connect vacuum meter or bulk fill hose to wrong gauge. Check plug and hose barb installation if
readout is erratic or appears inaccurate.
BULK FILL SYSTEM
Seed flying out of disconnected delivery
tube at high velocity can cause injury.
Do not disconnect delivery tubes when
system is operating.
CAUTION
Foreign materials can plug system. Make
sure seed is clean and free of debris
when filling bulk fill hoppers.
NOTICE
Do not turn on system with tractor
engine at full speed or system damage
may occur.
NOTICE
Do not operate bulk fill system above
maximum system operating pressure of
20 inches of water or seed bridging may
occur.
NOTICE
