M0259-01Model 3600
2-4 9/14
TM
Machine Operation
TRACTOR REQUIREMENTS
Consult your dealer for information on horsepower requirements and tractor compatibility. Requirements vary with
planter options, tillage, and terrain.
A 12 volt DC electrical system is required on all sizes.
A minimum of two SCV remote hydraulic outlets are required on all sizes. One SCV is used for field lift and with a
control console switch operates raise to transport function. A second SCV using control console operates row markers
fold/unfold functions. Additional SCV's with a zero pressure case drain are needed for vacuum fan motor for seed
metering system, Hydraulic Drive, and Wing Down Pressure (if installed without vacuum or bulk fill).
Maximum hydraulic flow rate of 13 GPM @ 2000 PSI is required to operate vacuum fan motor.
1. Torque transport wheel "- 18 lug nuts to 180 ft-lb (244 N-m).
2. Inflate tires to the following specifications:
Transport (center section) 255-70R 22.5 (“224” rim)
75 psi (517.1 kPa) recommended/75 psi (517.1 kPa) max.
Transport (center section) 255-70R 22.5" (“276” rim)
75 psi (517.1 kPa) recommended/100 psi (689.4 kPa) max.
Ground drive (wings) 7.50" x 20" 40 psi (275.7 kPa)
Contact drive 50 psi (344.7 kPa).
Liquid fertilizer piston pump 7.60" x 15" 40 psi (275.7 kPa)

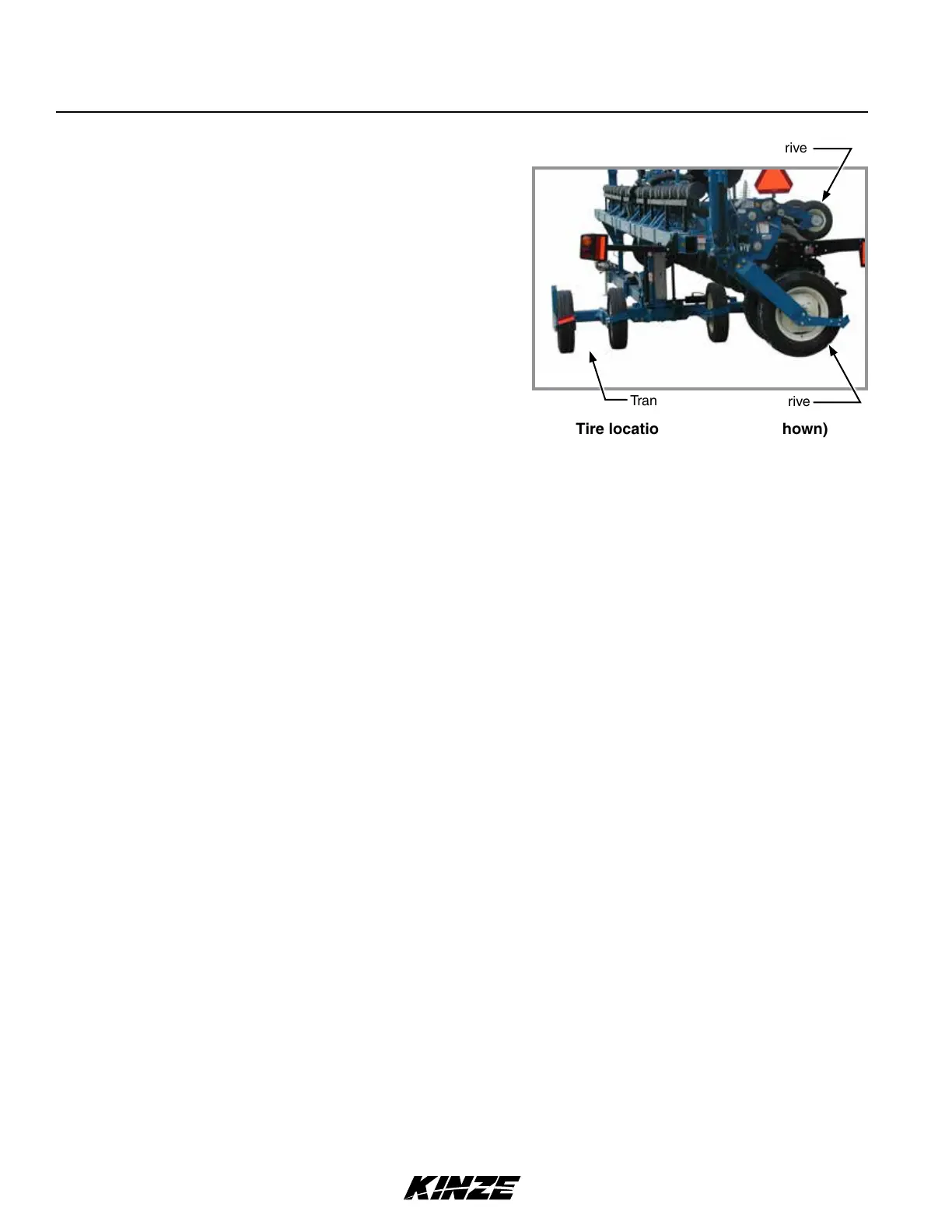

Tire locations (not all tires shown)
Contact drive
Transport
Ground drive
3. Lubricate planter and row units following instructions in lubrication and Maintenance section of this manual.
4. Check all drive chains for proper tension, alignment, and lubrication.
