Row Unit Operation
Straight drop in-furrow placement
4½" slope-compensating bander
14" rear banding

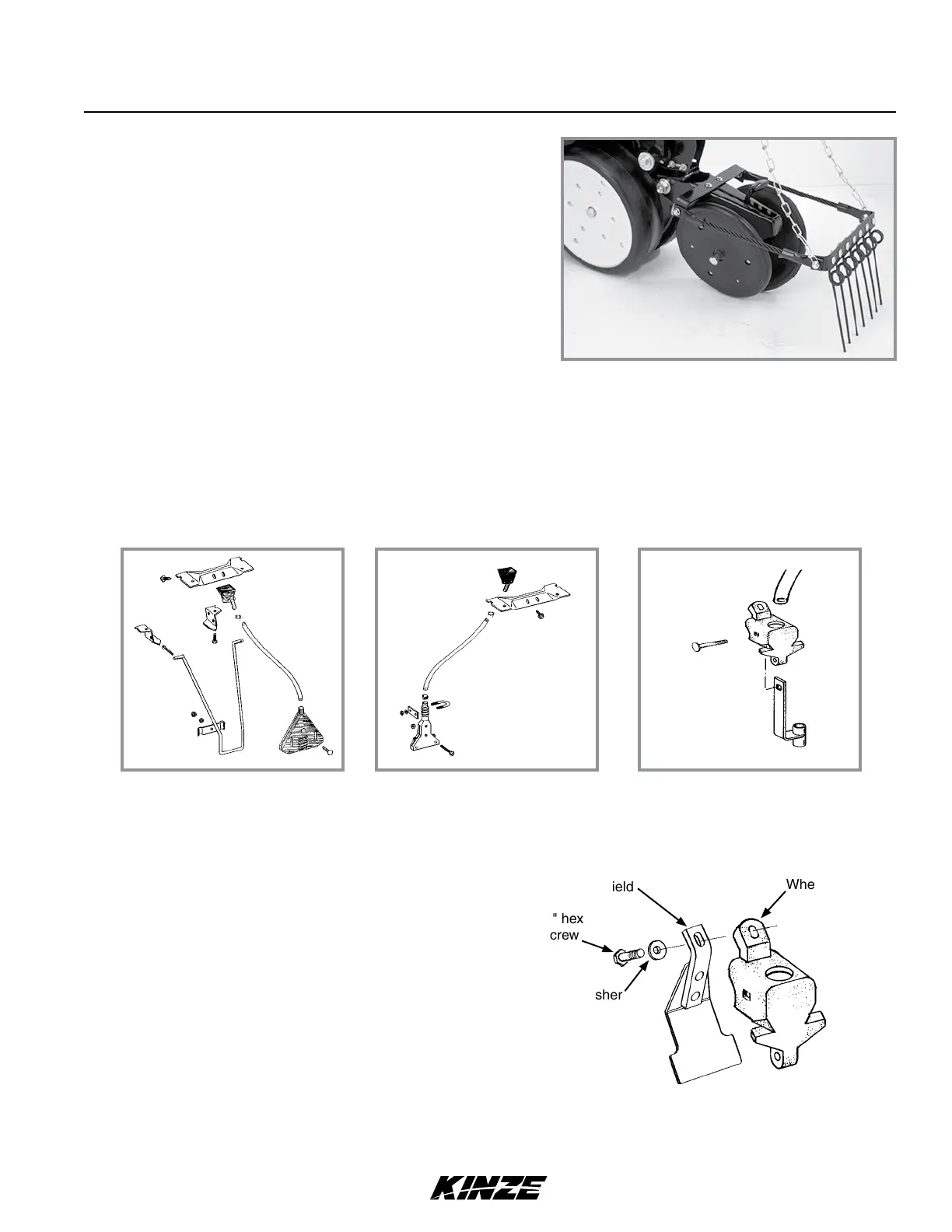

GRANULAR CHEMICAL BANDING OPTIONS
Granular chemical banding options allow 4½" slope-compensating banding, straight drop in-furrow placement or 14"
rear banding.
NOTE: Granular chemical rear bander is not compatible with covering discs/single press wheel option.
Optional granular chemical bander shield is installed
on underside of wheel arm stop to shield crop residue
from lodging in granular chemical bander.
GRANULAR CHEMICAL BANDER SHIELD
"-16 x 1½" hex
head cap screw
Wheel arm stop
Bander shield
Hardened washer
Granular chemical bander shield installation
Spring tooth incorporator smooths soil behind row unit and
incorporates granular chemicals.
Adjust two mounting chains on each spring tooth incorporator
so there is approximately " slack in chain when unit is
lowered to planting position.
NOTE: Spring tooth incorporator is not compatible with
covering discs/single press wheel option.
SPRING TOOTH INCORPORATOR
Spring tooth incorporator
