Kinze 3600 - VALVE BLOCK - LOCATED ON HITCH

TM
Model 3600M0259-01
9/14 6-41
Lubrication and Maintenance

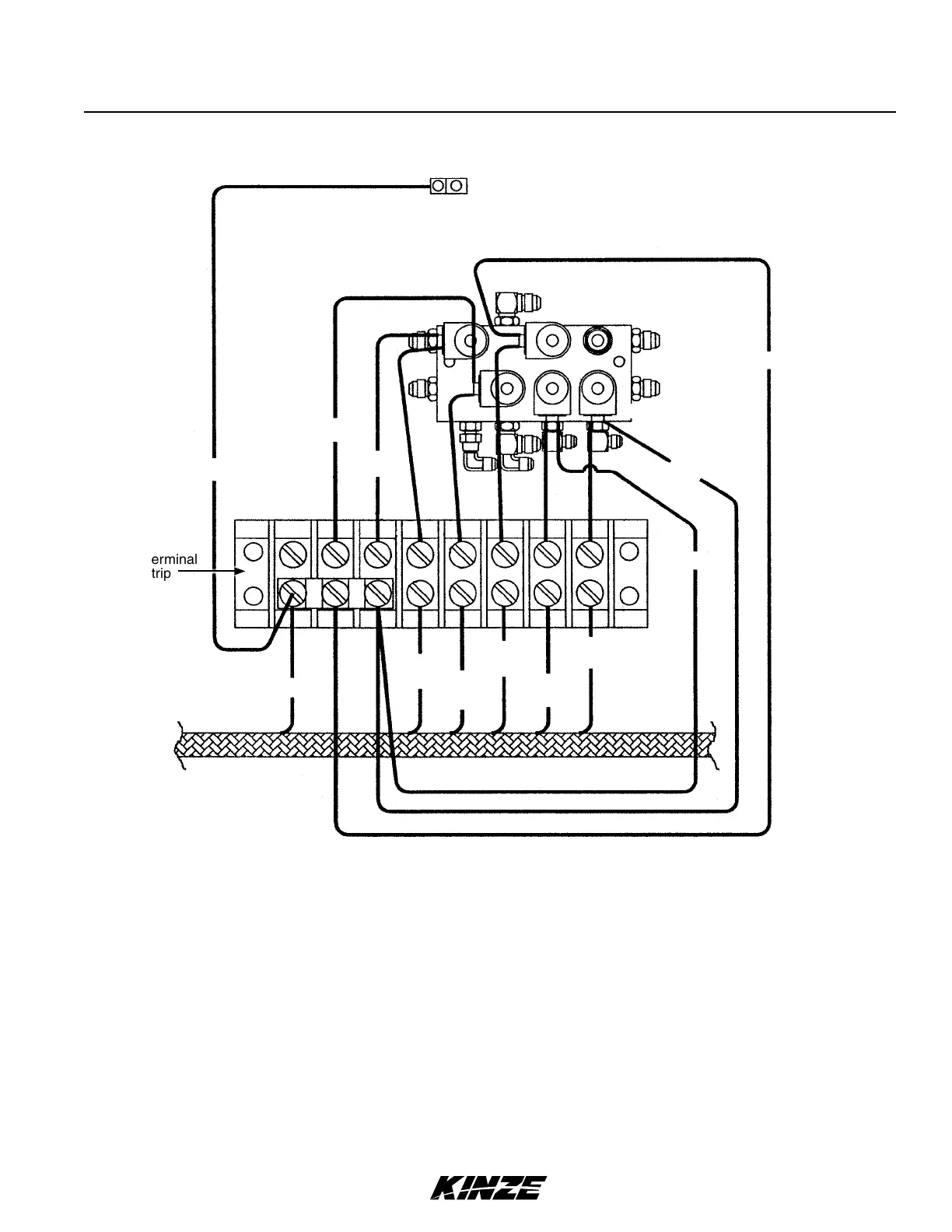

VALVE BLOCK - LOCATED ON HITCH
1. BLACK/RED - Pin “C” (Ground)
2. BLUE/RED - Pin “B” (Rotate) - Port V9
3. BLUE/RED - Pin “B” (Rotate) - Port V12
4. ORANGE/RED - Pin “A” (Tongue) - Port V10
5. ORANGE/RED - Pin “A” (Tongue) - Port V13
6. ORANGE/RED - Pin “A” (Tongue) - Port V14
Terminal
strip
Ground
Ground
GREEN
2. BLUE/
RED
Ground
Ground
Ground
Ground Clamp
- Attached To
Valve Block
1. BLACK/RED
3. BLUE/
RED
4. ORANGE/
RED
6. ORANGE/
RED
5. ORANGE/
RED
V9
V12
V11
V10
V13
V14
