Signal ISO Wire/Color PMM TBC PCM CAN Mux A Mux B
TBC Power 6 Twisted Quad Red - B - - - -
TBC Ground 7 Twisted Quad Black - D - - - -
ISO CAN H 8 Twisted Quad Yellow 31 E - - - -
ISO CAN L 9 Twisted Quad Green 32 F - - - -
ECU Power 4 Red 4, 5, 8 - 11 - - -
ECU Ground 2 Black 14, 15 - 12 - - -
LOAD Power 3 Red - - 1, 2, 3, 4 - - -
LOAD Ground 1 Black - - 5, 6, 7, 8 - - -
MUX A Power - Jacketed 3-Cond White 12 - - - A -
MUX A Ground - Jacketed 3-Cond Black 3 - - - B -
MUX A Signal - Jacketed 3-Cond Green 28 - - - C -
PROP CAN H - Twisted Pair Yellow 34 - - 1 - -
PROP CAN L - Twisted Pair Green 35 - - 2 - -
MUX B Power - Jacketed 3-Cond White 23 - - - - A
MUX B Ground - Jacketed 3-Cond Black 26 - - - - B
MUX B Signal - Jacketed 3-Cond Green 7 - - - - C

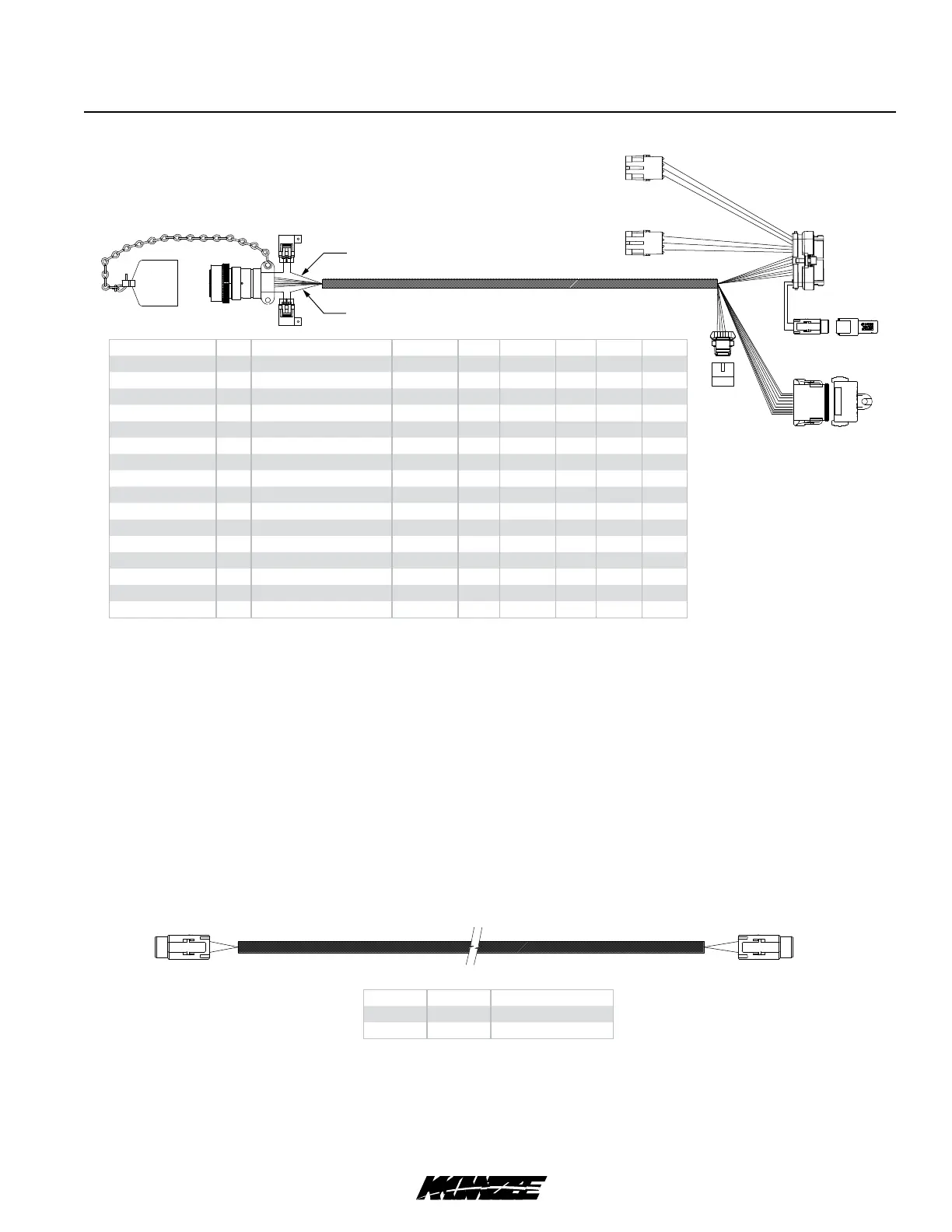

ISOBUS IMPLEMENT CABLE
ISO
PMM
MUX B
MUX A
10A Fuse
20A Fuse
TBC
PCM
CAN
Signal CAN Wire/Color
CAN H 1 Twisted Pair Yellow
CAN L 2 Twisted Pair Green
ISOBUS CAN JUMPER CABLE
TWISTED PAIR YELLOW
CAN
WIRE/COLORSIGNAL
TWISTED PAIR GREEN
1
2CAN L
CAN H
