M0259-01Model 3600
2-8 9/14
TM
Machine Operation

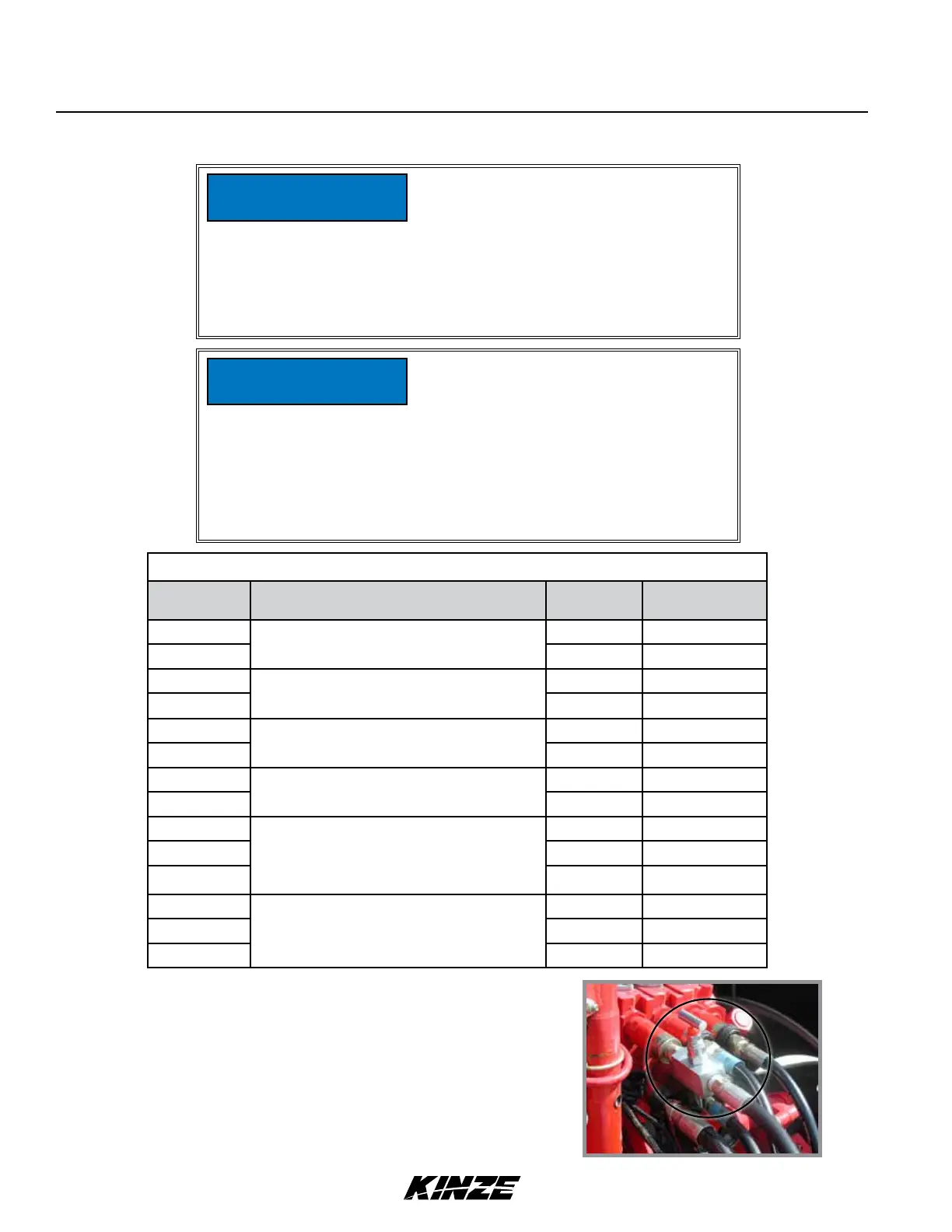

PLANTER TO TRACTOR HYDRAULIC CONNECTIONS
Color/Label Machine
Function
Hose Size Function
Red AA Field Lift ½" Pressure
Red BB ½" Return
Blue AA Planter Fold & Row Marker " Return
Blue BB " Pressure
Black RR Seed Rate Hydraulic Drive
(Vacuum)
¾" Return
Black PP ½" Pressure
Black RR Seed Rate Hydraulic Drive (Mechanical) ½" Return
Black PP " Pressure
Green RR Vacuum Fan ¾" Return
Green PP ½" Pressure
Orange CD
" Case Drain
Yellow RR Bulk Fill System Pressure Fan ¾" Motor Return
Yellow PP ½" Pressure
Orange CD
¼" Case Drain
G1K426 needle valve kit
For tractors not equipped with a method for finite adjustment of
hydraulic flow, Flow Control Needle Valve Kit G1K426 is available
from Kinze Repair Parts through your Kinze Dealer.
NOTE: Set adjustable flow outlet (SCV) to full flow position.
Connect hydraulic motor case drain to
a case drain return line with zero PSI
on tractor. Failure to connect to a return
with zero PSI will cause hydraulic motor
shaft seal damage. DO NOT connect
hydraulic motor case drain to a SCV
outlet or motor return circuit connection.
Contact tractor manufacturer for specific
details on “zero pressure return”.
NOTICE
Always connect hydraulic motor return
hose to tractor motor return port. Do not
connect to tractor SCV unless through
a motor spool or hydraulic motor failure
can occur. If a motor return port is
not available on the tractor, the SCV
controlling the bulk fill system MUST
be in the float position before planter is
moved in planting or field raised position
when bulk fill system is not in use.
NOTICE
5. Connect hydraulic hoses to tractor ports in a sequence familiar and comfortable to the operator.
