Machine Operation

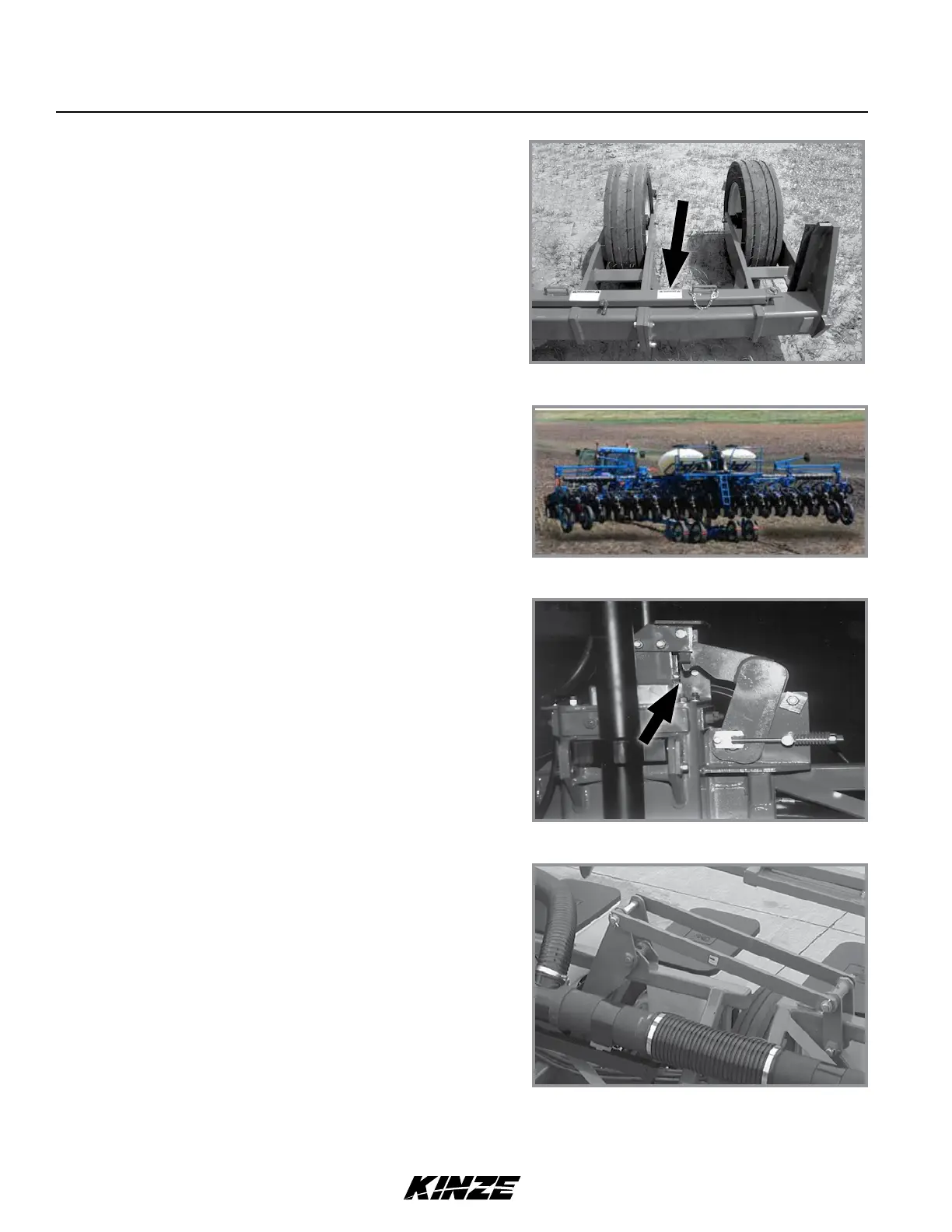

Storage position
3. Remove manual safety lockup from under front center
lift cylinder and place it in storage location on left
side of planter axle.
4. Hold control console “ROTATE/TONGUE” switch in
“ROTATE” and operate hydraulic control to unfold planter.
Transport latch automatically releases.
5. Raise planter 1"-2". Safety hook will release and snap away
from catch pin on top of pivot post.
NOTE: Raising planter too high resets hook mechanism
and sequence must be repeated.
6. Slowly lower planter to ground.
Wing lock
Rotate from transport to field
7. Hold control console “RAISE/WING LOCK” switch in “WING
LOCK” position and operate hydraulic control to release
wing locks.
Safety hook release
