Kioti CK20 - Adjusting Handbrake (Only EU-CK20)

12-14 CK20
196OC53A

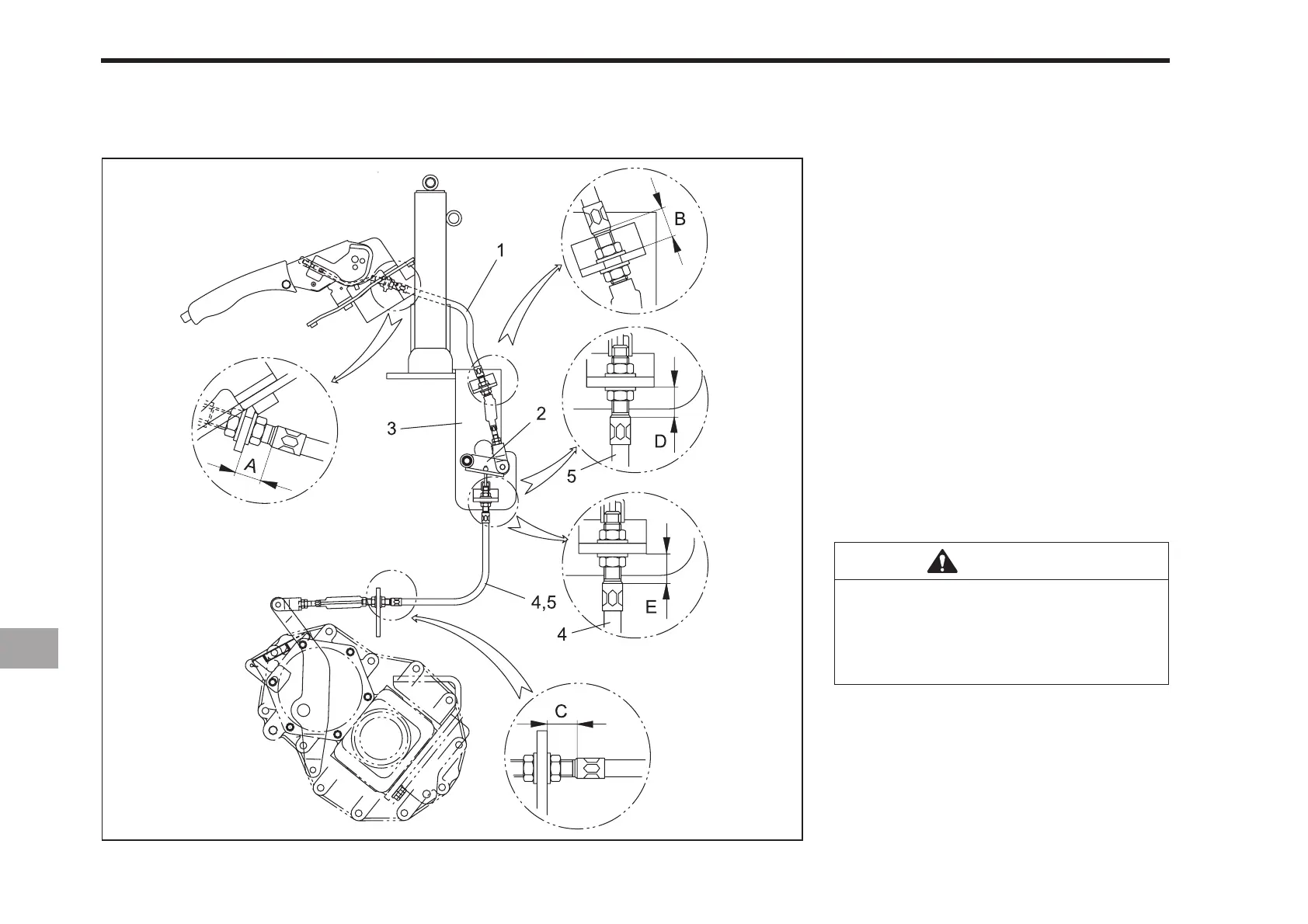

ADJUSTING HANDBRAKE
(only EU-CK20)
(1) Parking Brake Wire
(2) Parking Brake Bracket
(3) Parking Brake Bracket 1
(4) Parking Brake Wire 1
(5) Parking Brake Wire 3
1. Please adjust the parking brake wire
by following the assembling dimen-
sions as shown.
(A) : 19 mm (B) : 17 mm
(C) : 15 mm
(D) : End play Adjustment
(E) : End play Adjustment
2. Please be careful not to bend the
parking brake wire for assembling it.
3. Please fasten the nut securely not to
be loosen the parking brake wire.
4. Please assemble the ballof wire to
keep on moving freely.
CAUTION
The adjustment of the parking
brake wire should be followed by
adjusting the end play of the brake
pedal.
