OPERATING THE TRACTOR 7-9

CK20

196O715A

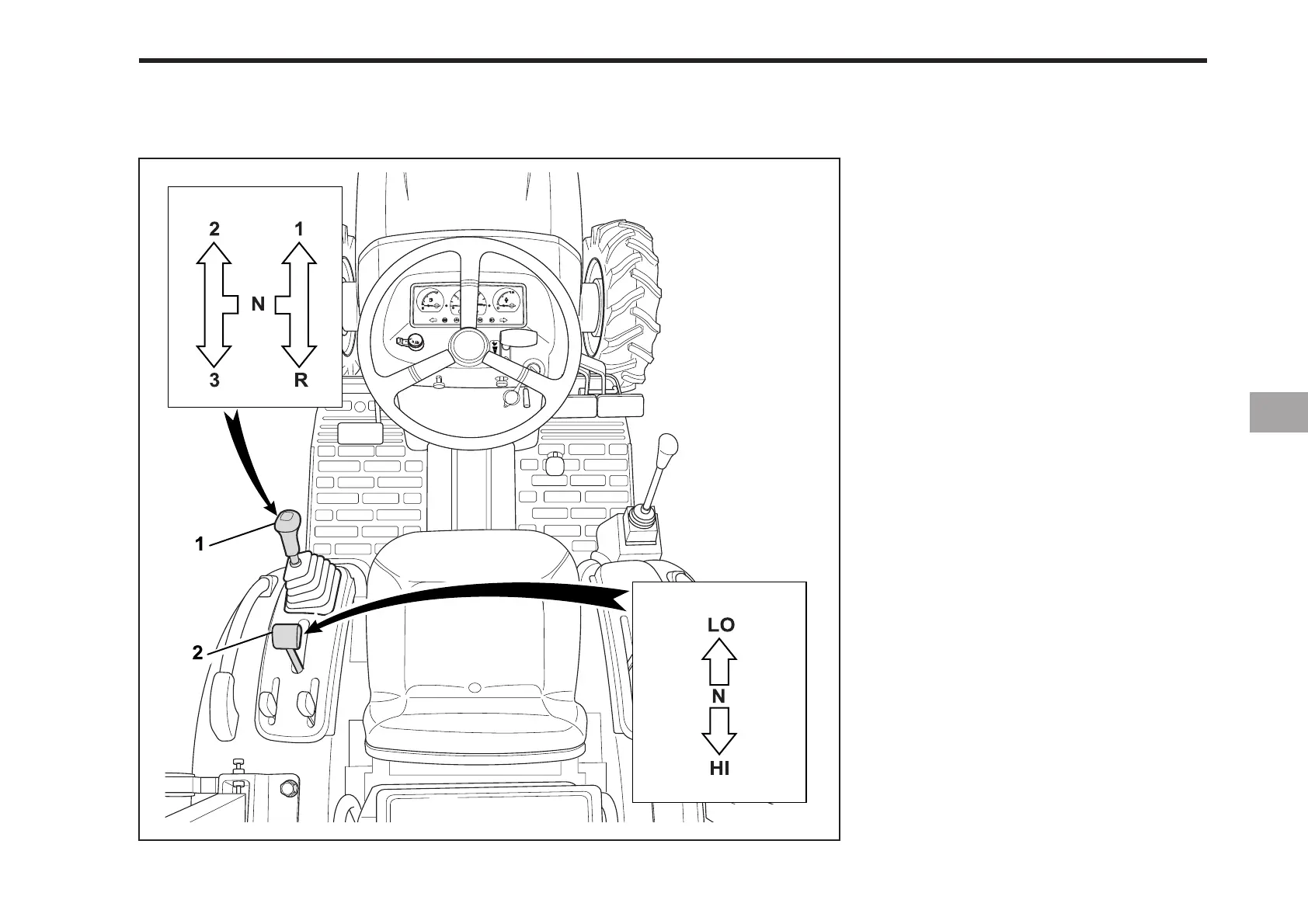

(1) Main Gear Shift Lever

(2) Range Gear Shift Lever (Hi-Lo)

(N) NEUTRAL POSITION

HI - HIGH

LO - LOW

SELECTING THE TRAVEL SPEED.
