Kioti CK20 - TREAD

TIRES, WHEELS AND BALLAST 10-3

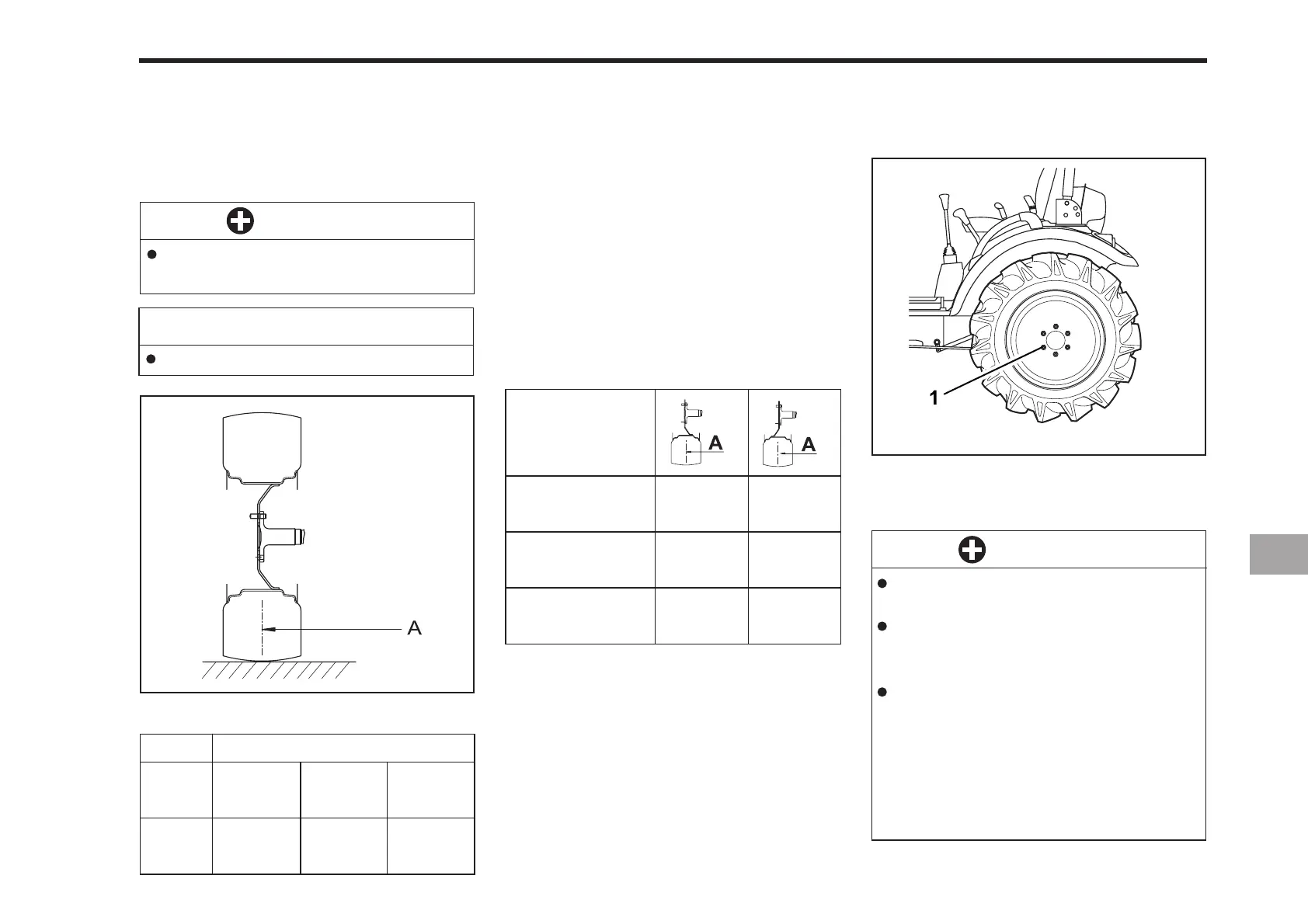

196OA01A
Front tread can not be adjusted.
TREAD
FRONT WHEELS
NOTE
IND… for Industrial
IMPORTANT
Do not turn front discs to obtain
wider tread.
Models
Tires
Tread
6 - 12
Farm
909 mm
(35.8 in.)
23x8.50-12
Turf
1,014 mm
(39.9 in.)
23x8.50-12
IND
1,014 mm
(39.9 in.)
CK 20, CK20H
CK20, CK20H
9.5 - 16 Farm
CK20, CK20H
33x12.5-16.5Turf
CK20, CK20H
12 - 16.5 IND
REAR WHEELS
-
-
935 mm
(36.8 in.)
995 mm
(39.2 in.)
1,015 mm
(40 in.)
Models
Rear wheel tread width can be adjusted
as shown with the standard equipment
tires.
To change the tread width.
1. Remove the wheel rim and the disk
mounting bolts.
2. Change the position of the rim and disk
to the desired position, and then tighten
the bolts.
196OA04A
IMPORTANT
Always attach tires as shown in
the drawings.
If not attached as illustrated,
transmission parts may be
damaged.
When re-fitting or adjusting a
wheel, tighten the bolts to the
following torques then recheck
after driving the tractor 200 m (200
yards) and thereafter according
to service interval.
(See “MAINTENANCE” section)
(1) 215 N·m (22 kgf·m, 160 lbs·ft)
890 mm
(35 in.)
A: Tread
(A) Tread
