OPERATION 5-17
CONNECTING HYDRAULIC ACCESSORIES
- DOUBLE ACTING VALVE (IF EQUIPPED)
C86O521A
DK651
DK751/801/901

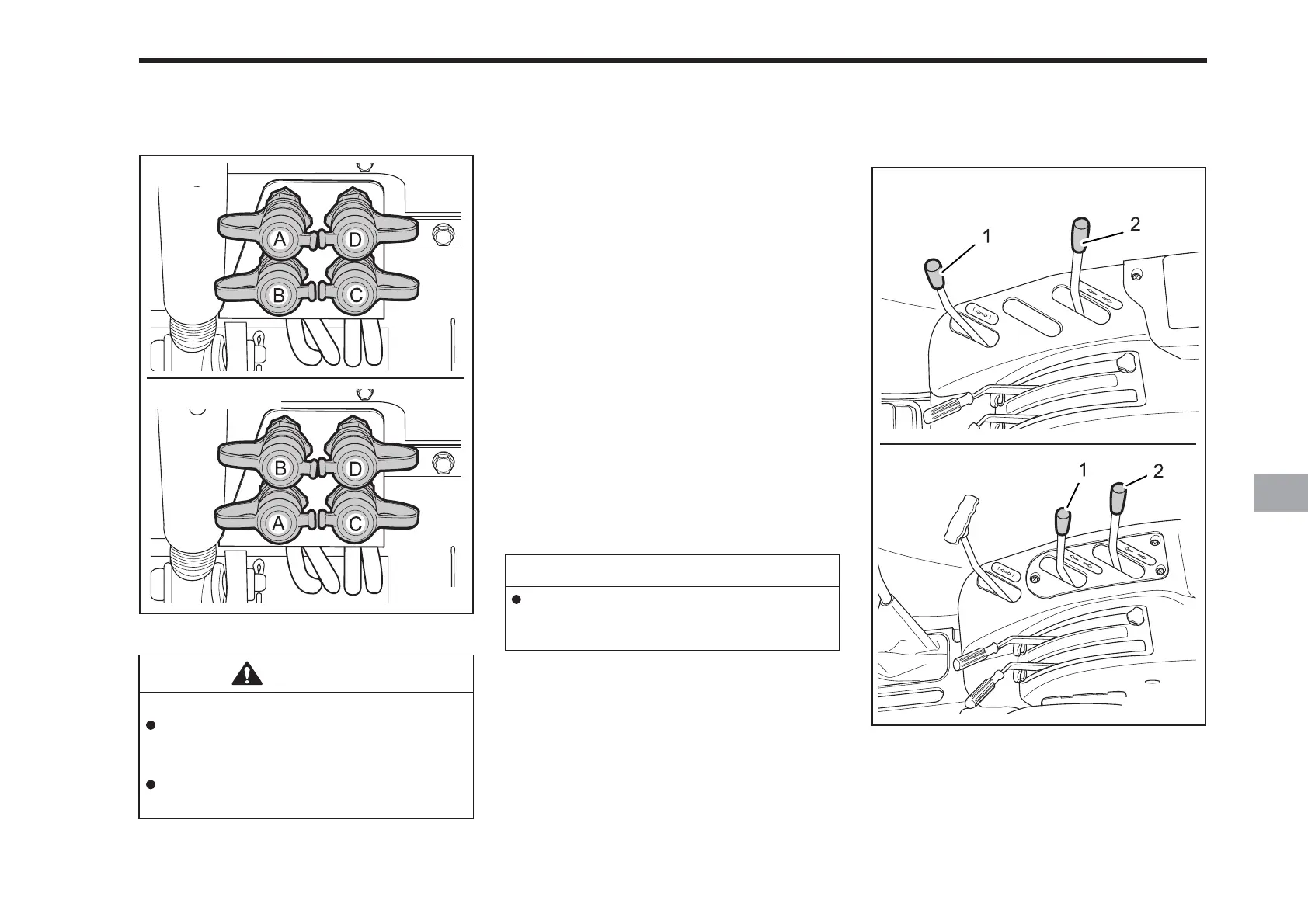

OPERATION OF DOUBLE ACTING HY-
DRAULIC CONTROL VALVE
C86O522A
(1) Lever1 (2) Lever2
DK651
DK751/801/901
CAUTION
To avoid personal injury:
Stop the engine and relieve pres-
sure before connecting or dis-
connecting lines.
Do not use your hand to check
for leaks.
CONNECTING
1. Clean both couplers.
2. Remove dust plugs.
3. Insert the implement coupler to the trac-
tor hydraulic coupler.
4. Pull the implement coupler slightly to
make sure couplers are firmly
connected.
DISCONNECTING
1. Clean the couplers.
2. Relieve pressure by moving hydraulic
control levers with engine shut off.
Pull the hose straight from the hydrau-
lic coupler to release it.
3. Clean oil and dust from the coupler,
then replace the dust plugs.
Your local KIOTI Dealer can supply
parts to adapt couplers to hydraulic
hoses.
