Kirisun DP405 Service Manual

DP405 Service Manual

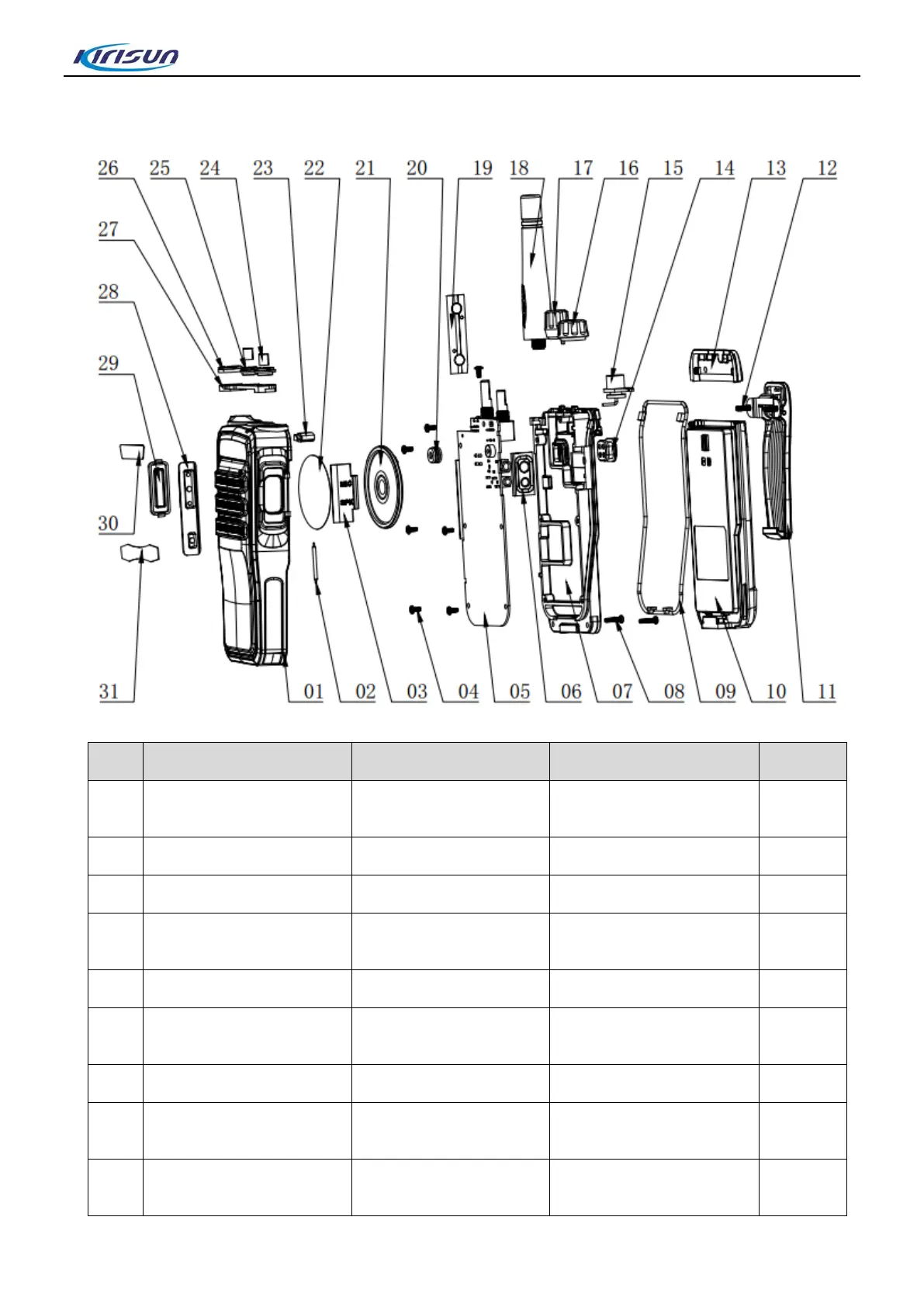

5.6. Exploded View
No. Material No. Material Name Description Quantity
1 7MHP-4169-01B-W0 DP405 front cover PC365，black+grey,
textured
1
2 7MJS-4038-01A-W0 S760 shaft SUS304; 1
3 7MHP-4097-01A-W0 S565 earphone cover TPU, black, textured 1
4 7SMF-020040M-SZYB-N
M2*4 cross machine
screw
Hardened
iron,Φ2mm*4mm
8
5 Motherboard PCBA DP405 PCBA 1
6 7MHP-4097-02A-W0
Earphone jack
waterproof pad
TPU; black, textured 1
7 7MHL-4141-01A-N Aluminum Shell ADC12; nickel-plated; 1
8
7SMF-020080M-MHHT-N
1
M2*8 torx machine
screw
Hardened
iron,Φ2mm*8mm
2
9 7MHR-4038-02A-W0 Main waterproof ring
Silica gel; black,
high-gloss
1
19

Kirisun DP405 Specifications

General

Brand	Kirisun
Model	DP405
Category	Two-Way Radio
Language	English
