Kirisun DR600 Service Manual

DR600 Service Manual

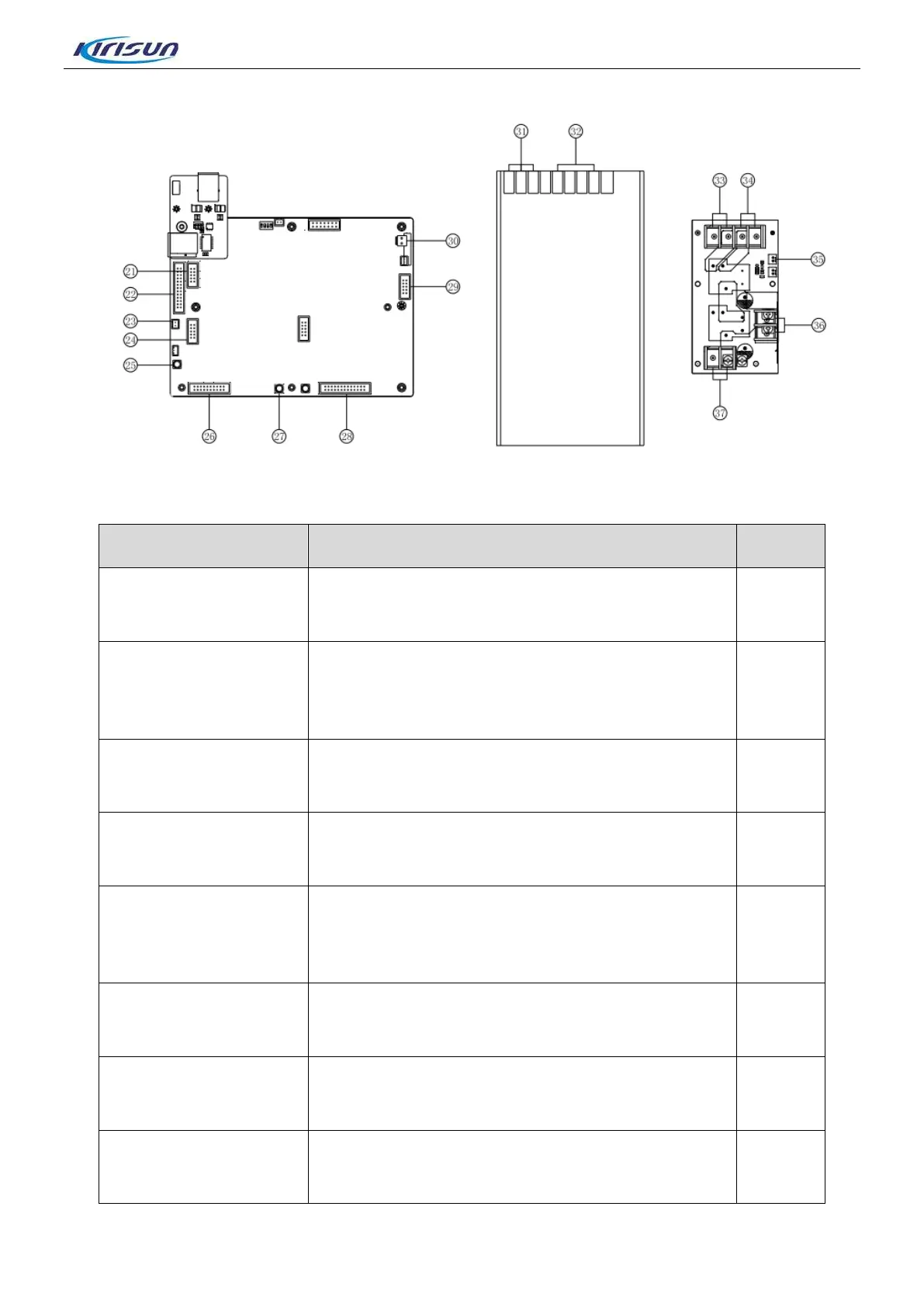

Material NO. Name, Specification and Model of Material Wiring
3CR7-BNC-185 BNC RF coaxial line of DR600, SMA-C-J1.5 to BNC, line
type RG141A/U, line length 175mm
8-20
3CR7-N-60 N-
shaped headed RF coaxial line of DR600, one
YD3.650.346 end and one evenly-
cut end, line type
SFF-50-1.5-1, line length 60mm
11-12
3CR7-SMA-230 RF coaxial line 2 of DR600, SMA-JB3 to SMA-JWB3-1,
line type RG141A/U, line length 150mm
14-17
3CR7-S4224-01A RF coaxial line 4 of DR600, SMA-C-
JW1.5 to
SMA-C-JW1.5, line type SFF-50-1.5-1, line length 60mm
19-27
3WPD-S4071-A1 Power cable 1, 3-pin 3-
color, 158mm 16AWG, one
cold-
pressed terminal and one round terminal, Mingxin
brand
6-31
3WPD-S4224-B1 Power cable 2, 2-pin, black line 420mm in length, red line
1150mm in length, 1*2.5mm
2
, two round terminals
32-34
3WPD-S4224-C1 Power cable 3, 2-pin, 380mm in length, 1*2.5mm
2
, one
round terminal and one peeled tin-dipped terminal
7-33
3WPD-S4224-D1 Power cable 4, 2-pin, 650mm in length, 1*2.5mm
2
, one
round terminal and one peeled tin-dipped terminal
13-37
38
