Kirisun T60 User Manual

5
2. Using the Accessories

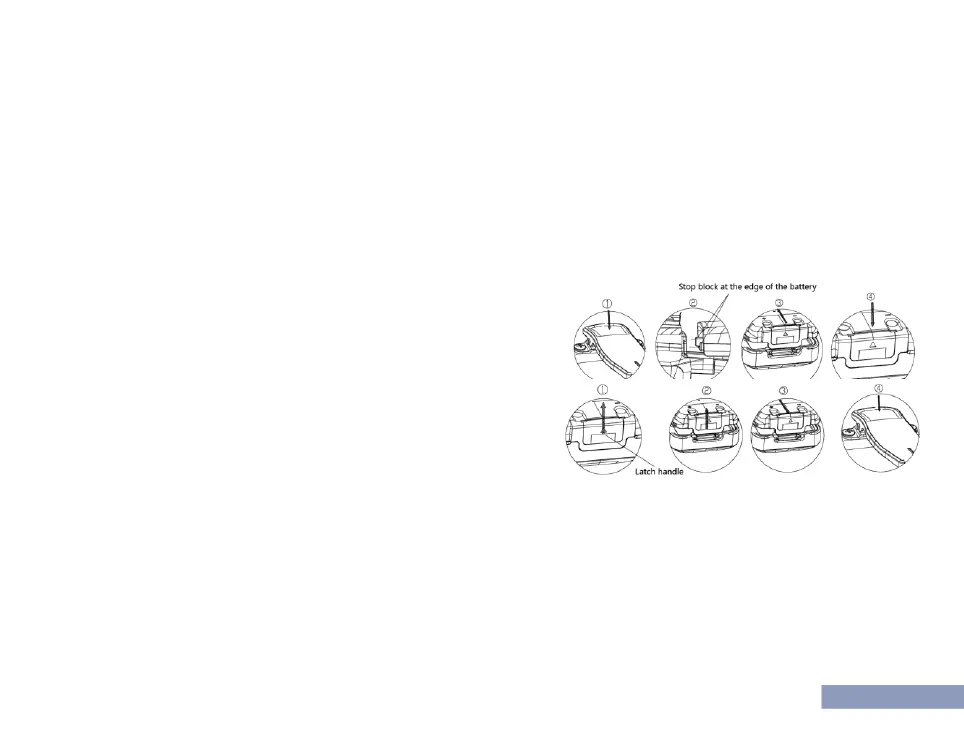

2.1 Installing/Uninstalling the Battery
◆Installing the Battery
(1) Press the upper part of the belt clip gently so that it goes up. (Figure ①)
(2) Align the battery with the battery holder at the back of the radio, and then insert the battery.
(Figure ②)
(3) Push the battery in the direction indicated until the latch
is in position. (Figure ③)
(4) Press the upper part of the battery until it is latched.
(Figure ④)
◆Uninstalling the Battery
(1) Power off the radio.
(2) Slide the latch in the indicated direction, and the battery will go up. (Figures ① and ②)
(3) Slice the battery in the indicated direction to take it down. (Figure ③) If the belt clip is installed,
please first press the upper part of it so that it goes up.

Kirisun T60 Specifications

General

Brand	Kirisun
Model	T60
Category	Two-Way Radio
Language	English
