Klark Teknik square one dynamics - Side Chain EXT KEY Inputs

Getting started
Square ONE Dynamics 9
Side chain EXT KEY inputs
The electronically balanced side chain inputs are on stereo 1/4” TRS connectors. Inserting a mono jack plug
will automatically unbalance the input.

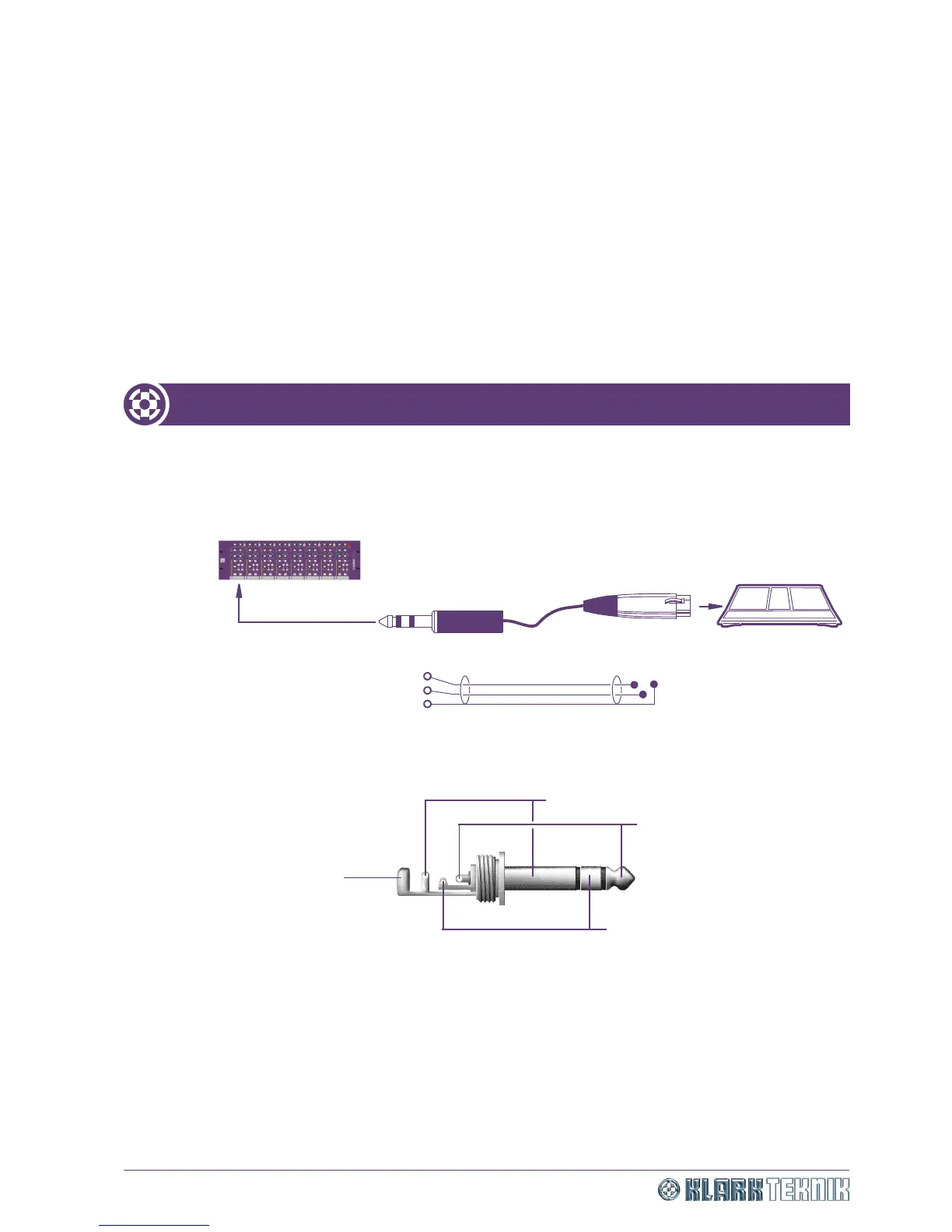

Figure 1: Side chain EXT KEY input connection details
Figure 2: 1/4” TRS connector wiring details
Female XLR
Tip
Ring
Sleeve
Tip Sleeve Ring
Female XLR
1
2
3
Console
To E XT KE Y so c ke t
(rear of Square ONE
Dynamics unit)
Sleeve: ground/shield
Tip: hot
Ring: Cold
Strain relief clamp
