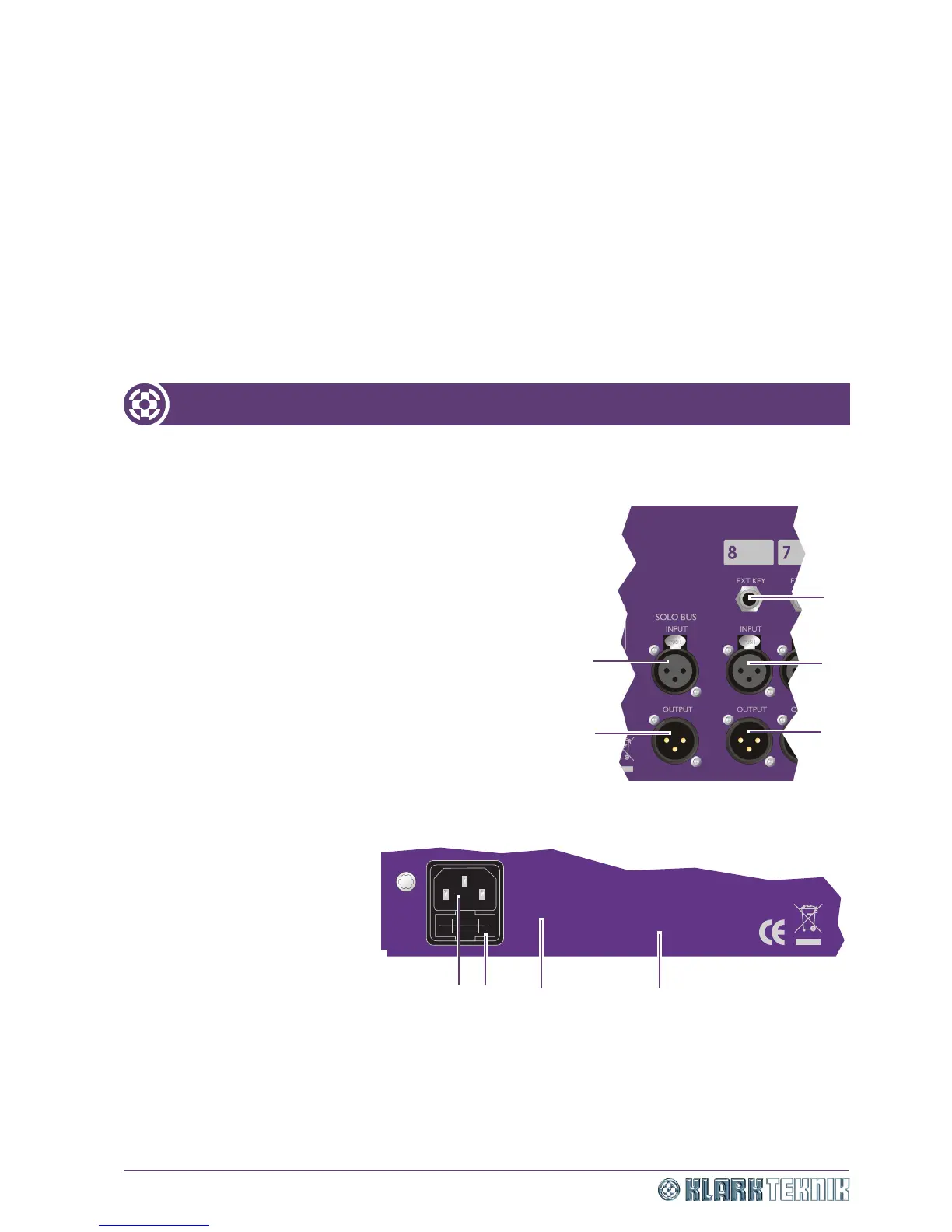

Rear panel
Square ONE Dynamics 15
Audio connections
Please refer to “Connecting the audio cables” on page 8 for pin assignments.
1 EXT KEY socket: For 1/4” TRS, balanced jack socket, one per
channel.
2 Channel INPUT socket: Female XLR connector.
3 Channel OUTPUT socket: Male XLR connector.
4 SOLO BUS OUTPUT socket: Male XLR connector.
5 SOLO BUS INPUT socket: Female XLR connector.
Mains supply
1 IEC socket: Auto voltage
sensing, switch mode power supply that
operates where the nominal mains
voltage is in the range 100V AC to
240V AC.
2 Fuse drawer: Contains the
mains fuse at the rear of a
two-compartment drawer. The front
compartment provides room for a spare.
Always replace the mains fuse with the
same type and rating; see “Checking/
replacing the mains fuse” on page 42 for details.
3 Supply voltage and fuse specifications: Details of the supply voltage and the mains fuse are printed here.
4 Fuse warning information: Details on replacing the mains fuse with the same type is printed here.
1
2
4 3
5
TO REDUCE RISK OF FIRE, REPLACE WITH SAME TYPE OF FUSE.
100-240V
AC~50-60Hz 35W
FUSE: 5x20mm
T3.15A L250V
SUPPLY
MOUNT IN RACK ONLY
VOLTAGE
4321
