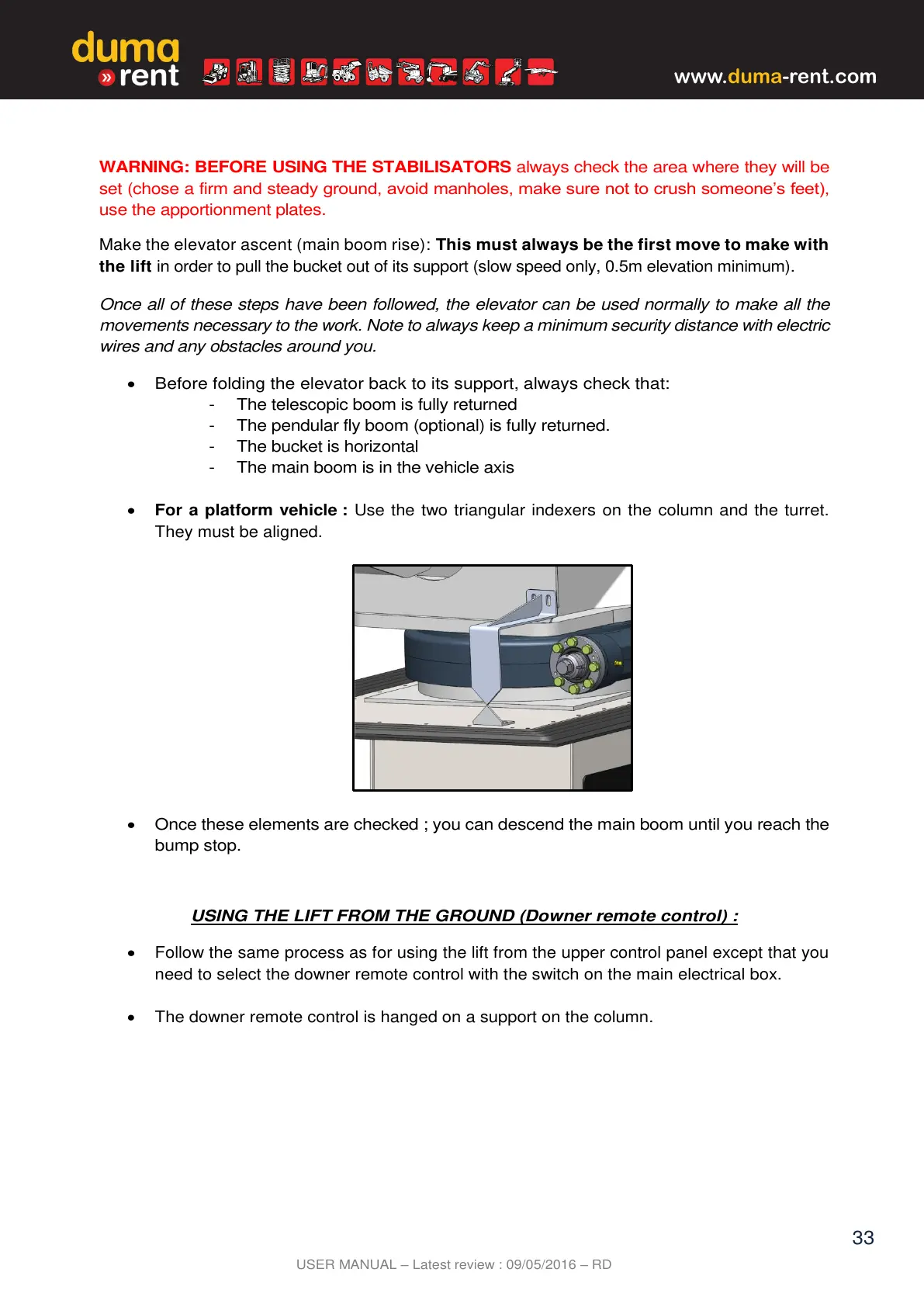

WARNING: BEFORE USING THE STABILISATORS
always check the area where they will be
set (chose a firm and steady ground, avoid manholes, make sure not to crush someone’s feet),
use the apportionment plates.
Make the elevator ascent (main boom rise): This must always be the first move to make with
the lift in order to pull the bucket out of its support (slow speed only, 0.5m elevation minimum).
Once all of these steps have been followed, the elevator can be used normally to make all the
movements necessary to the work. Note to always keep a minimum security distance with electric
wires and any obstacles around you.
Before folding the elevator back to its support, always check that:
- The telescopic boom is fully returned
- The pendular fly boom (optional) is fully returned.
- The bucket is horizontal
- The main boom is in the vehicle axis
For a platform vehicle : Use the two triangular indexers on the column and the turret.
They must be aligned.
Once these elements are checked ; you can descend the main boom until you reach the
bump stop.
USING THE LIFT FROM THE GROUND (Downer remote control) :
Follow the same process as for using the lift from the upper control panel except that you
need to select the downer remote control with the switch on the main electrical box.
The downer remote control is hanged on a support on the column.
