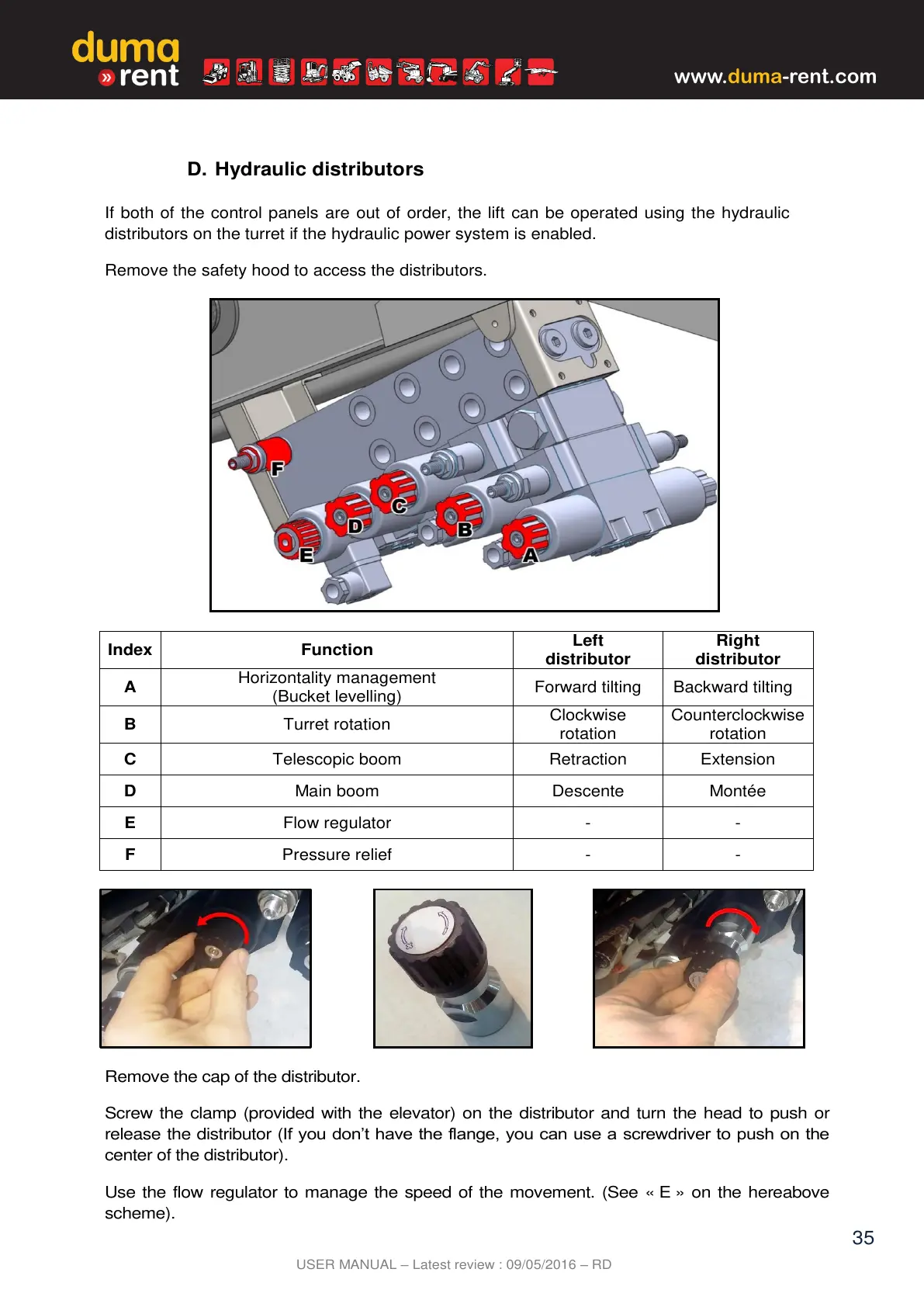

D. Hydraulic distributors
If both of the control panels are out of order, the lift can be operated using the hydraulic
distributors on the turret if the hydraulic power system is enabled.
Remove the safety hood to access the distributors.
Remove the cap of the distributor.
Screw the clamp (provided with the elevator) on the distributor and turn the head to push or
release the distributor (If you don’t have the flange, you can use a screwdriver to push on the
center of the distributor).
Use the flow regulator to manage the speed of the movement. (See « E » on the hereabove
scheme).
