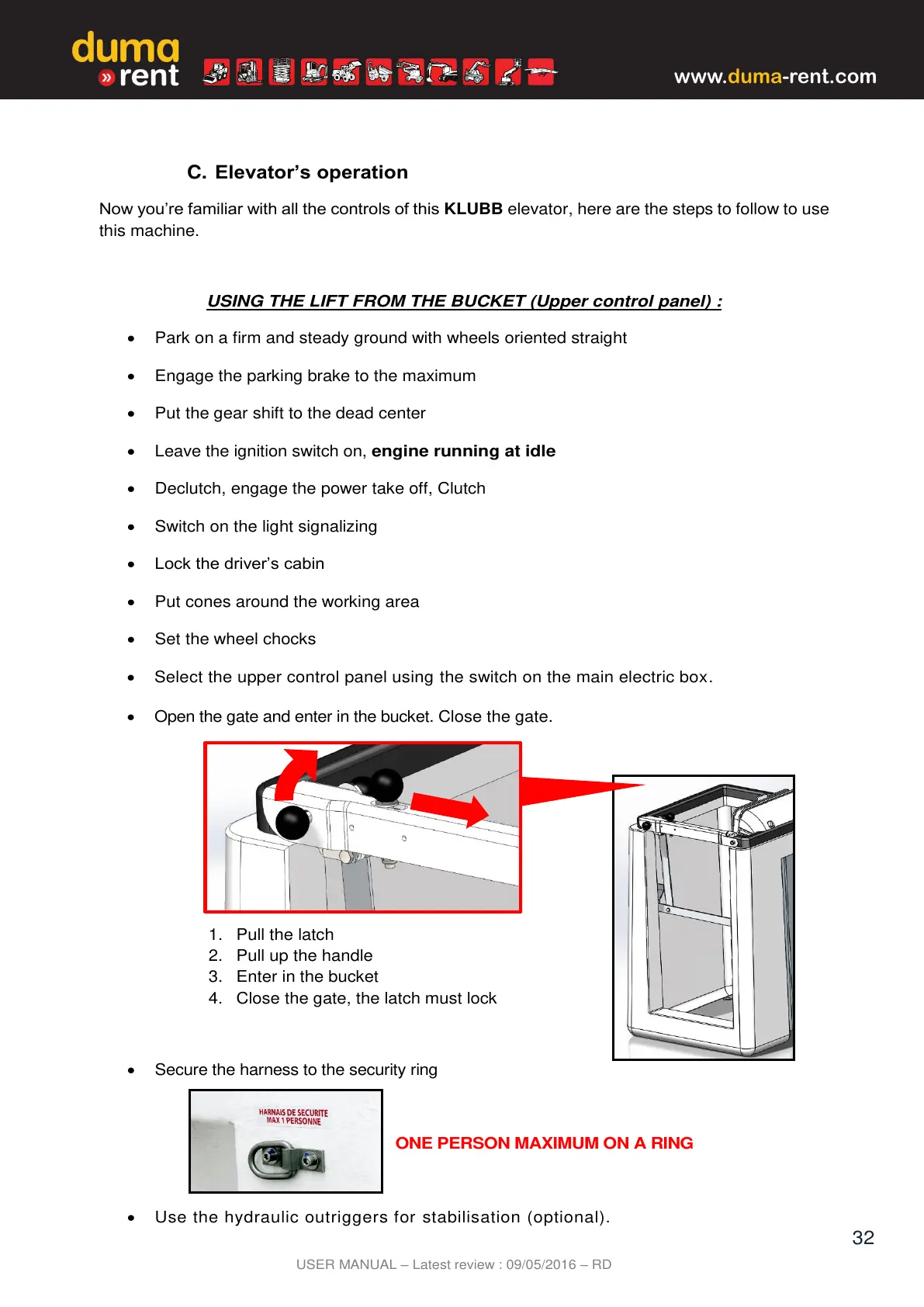

C. Elevator’s operation
Now you’re familiar with all the controls of this KLUBB elevator, here are the steps to follow to use
this machine.
USING THE LIFT FROM THE BUCKET (Upper control panel) :
Park on a firm and steady ground with wheels oriented straight
Engage the parking brake to the maximum
Put the gear shift to the dead center
Leave the ignition switch on,
engine running at idle
Declutch, engage the power take off, Clutch
Switch on the light signalizing
Lock the driver’s cabin
Put cones around the working area
Set the wheel chocks
Select the upper control panel using the switch on the main electric box.
Open the gate and enter in the bucket. Close the gate.
1. Pull the latch
2. Pull up the handle
3. Enter in the bucket
4. Close the gate, the latch must lock
Secure the harness to the security ring
ONE PERSON MAXIMUM ON A RING
Use the hydraulic outriggers for stabilisation (optional).
