USER MANUAL – Latest review : 09/05/2016 – RD

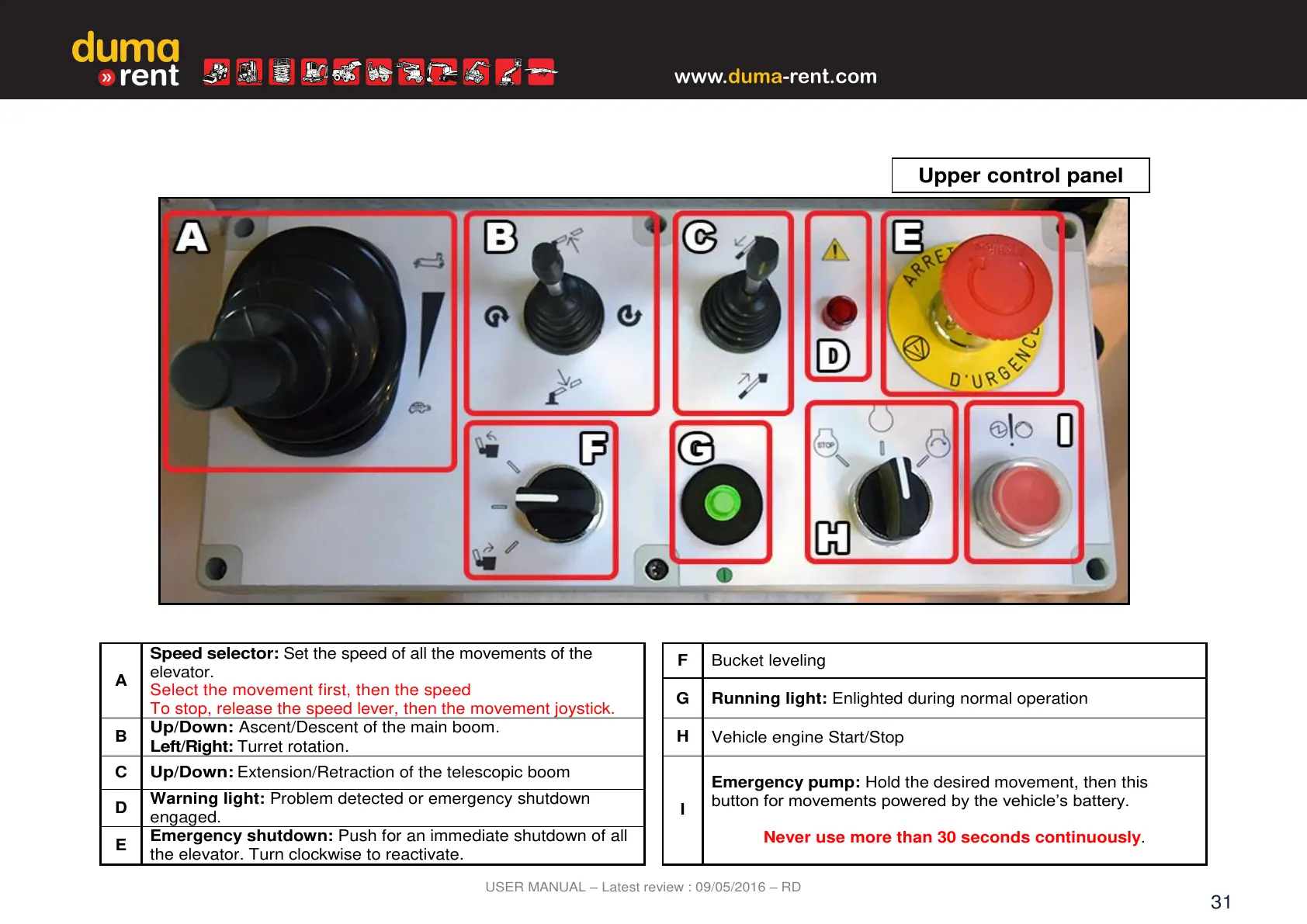

Speed selector:
Set the speed of all the movements of the
elevator.
Select the movement first, then the speed
To stop, release the speed lever, then the movement joystick.
Running light: Enlighted during normal operation
Up/Down:
Ascent/Descent of the main boom.
Left/Right:
Turret rotation.
Vehicle engine Start/Stop
Up/Down:
Extension/Retraction of the telescopic boom
Emergency pump: Hold the desired movement, then this
button for movements powered by the vehicle’s battery.
Never use more than 30 seconds continuously.
Warning light: Problem detected or emergency shutdown
engaged.
Emergency shutdown: Push for an immediate shutdown of all
the elevator. Turn clockwise to reactivate.
