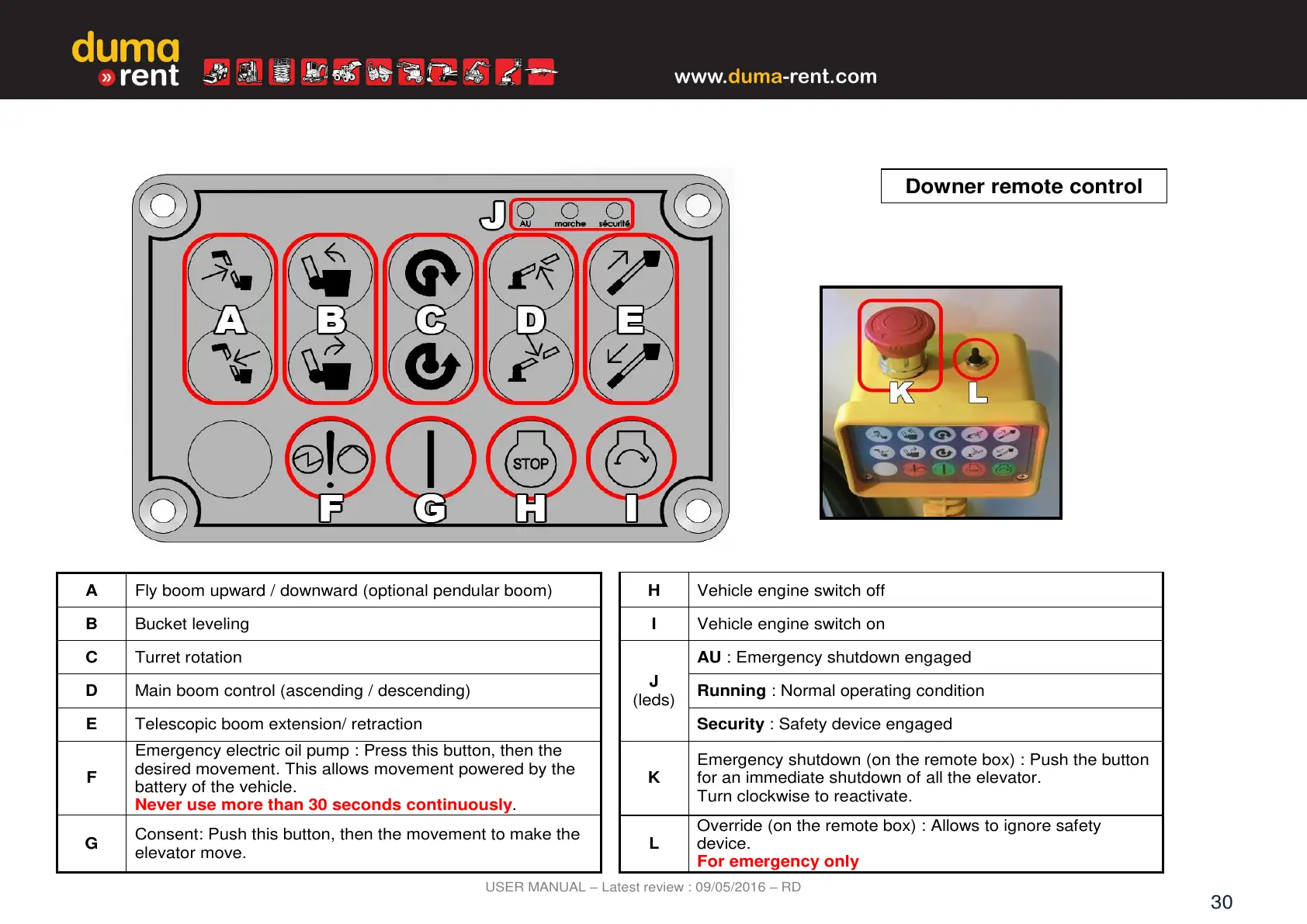

USER MANUAL ā Latest review : 09/05/2016 ā RD
Fly boom upward / downward (optional pendular boom)
Vehicle engine switch off
AU : Emergency shutdown engaged
Main boom control (ascending / descending)
Running : Normal operating condition
Telescopic boom extension/ retraction
Security : Safety device engaged
Emergency electric oil pump : Press this button, then the
desired movement. This allows movement powered by the
battery of the vehicle.
Never use more than 30 seconds continuously.
Emergency shutdown (on the remote box) : Push the button
for an immediate shutdown of all the elevator.
Turn clockwise to reactivate.
Consent: Push this button, then the movement to make the
elevator move.
Override (on the remote box) : Allows to ignore safety
device.
For emergency only
