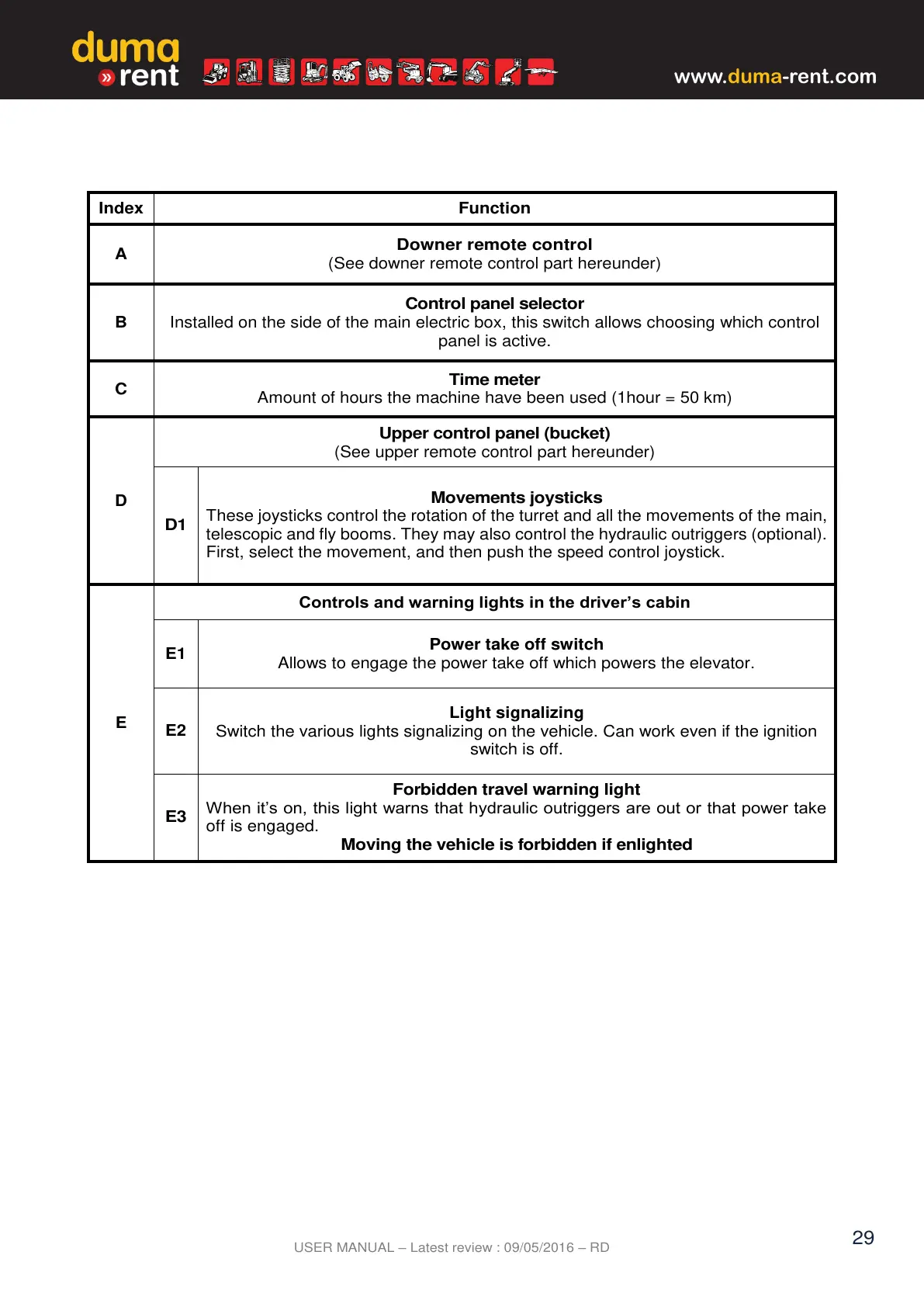

USER MANUAL – Latest review : 09/05/2016 – RD
Downer remote control
(See downer remote control part hereunder)
Control panel selector
Installed on the side of the main electric box, this switch allows choosing which control
panel is active.
Time meter
Amount of hours the machine have been used (1hour = 50 km)
Upper control panel (bucket)
(See upper remote control part hereunder)
Movements joysticks
These joysticks control the rotation of the turret and all the movements of the main,
telescopic and fly booms. They may also control the hydraulic outriggers (optional).
First, select the movement, and then push the speed control joystick.
Controls and warning lights in the driver’s cabin
Power take off switch
Allows to engage the power take off which powers the elevator.
Light signalizing
Switch the various lights signalizing on the vehicle. Can work even if the ignition
switch is off.
Forbidden travel warning light
When it’s on, this light warns that hydraulic outriggers are out or that power take
off is engaged.
Moving the vehicle is forbidden if enlighted
