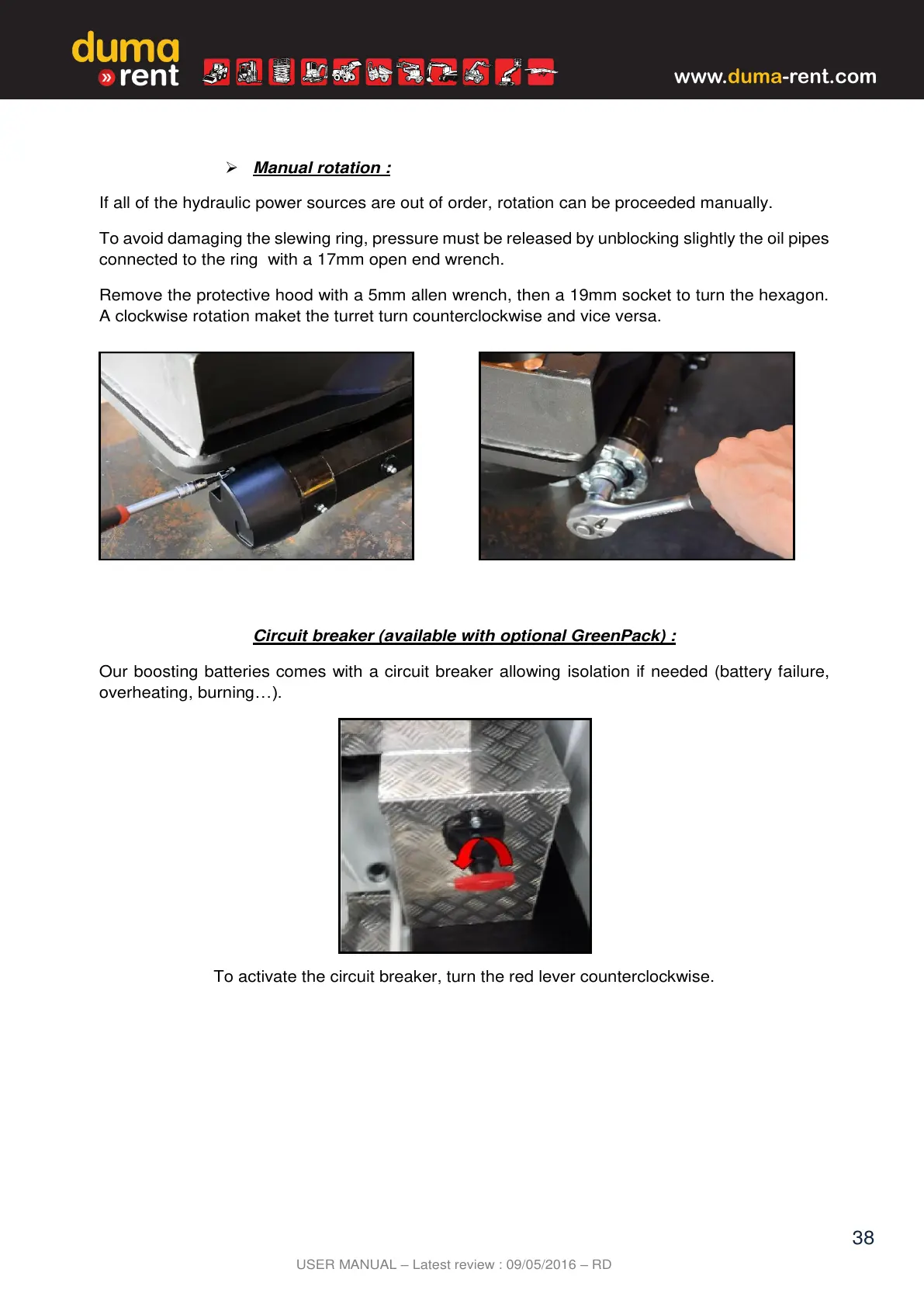

Manual rotation :
If all of the hydraulic power sources are out of order, rotation can be proceeded manually.
To avoid damaging the slewing ring, pressure must be released by unblocking slightly the oil pipes
connected to the ring with a 17mm open end wrench.
Remove the protective hood with a 5mm allen wrench, then a 19mm socket to turn the hexagon.
A clockwise rotation maket the turret turn counterclockwise and vice versa.
Circuit breaker (available with optional GreenPack) :
Our boosting batteries comes with a circuit breaker allowing isolation if needed (battery failure,
overheating, burning…).
To activate the circuit breaker, turn the red lever counterclockwise.
