LABOPORT Pumps and Systems System overview
Translation of original Operating Instructions, english, KNF 121211-121345 01/10 9

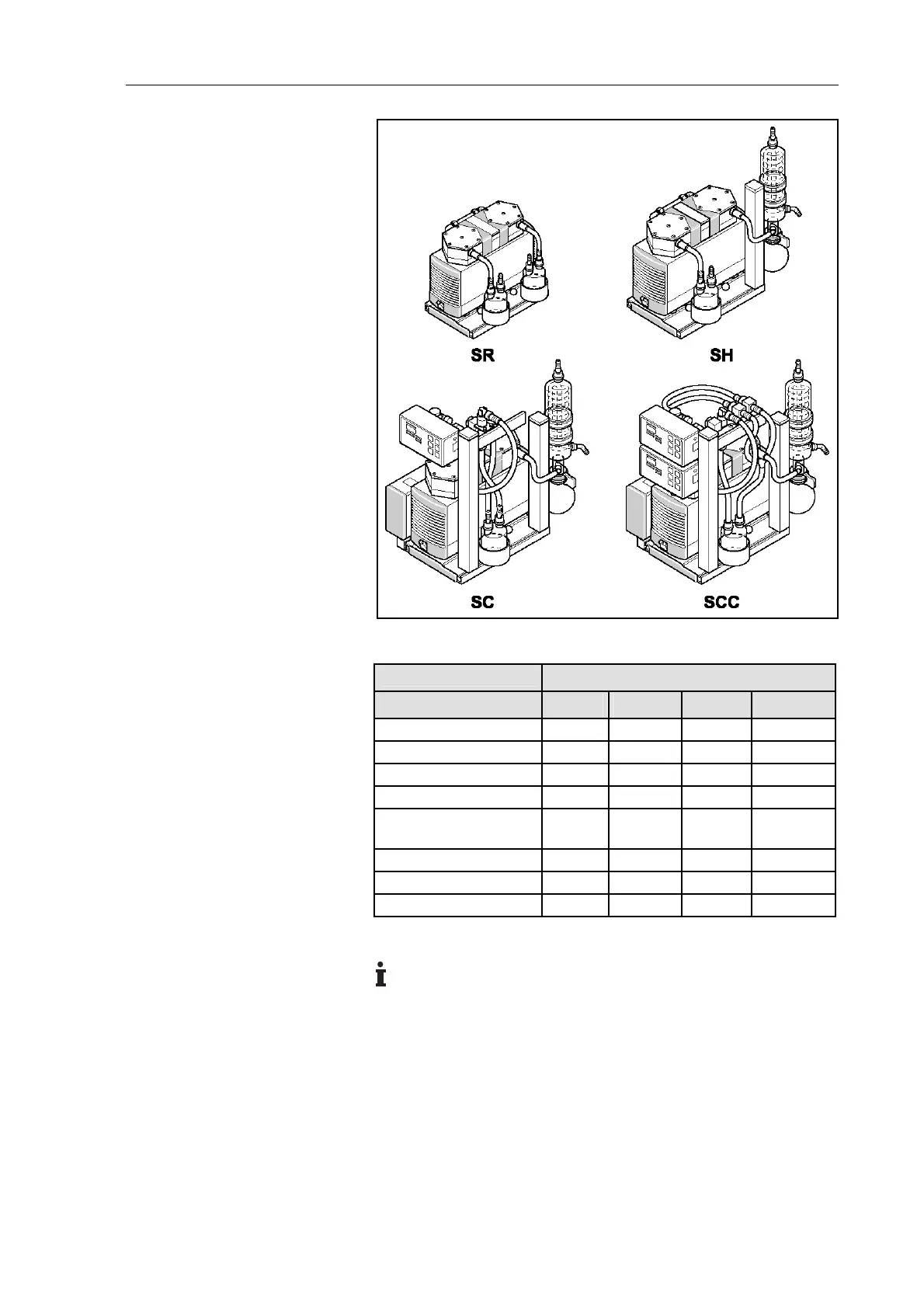

Fig. 3: LABOPORT Systems
System
Module SR... SH... SC... SCC...
Pump X X X X
Baseplate X X X X
2 separators X
1 separator X X X
High performance
condenser
X X X
Electrical supply unit X X
1 vacuum controller X
2 vacuum controllers X
Tab. 2
Each pump and all systems can be expanded modularly up to
a full system SCC… (see chapter 7.7, page 28).
