System overview LABOPORT Pumps and Systems
8 Translation of original Operating Instructions, english, KNF 121211-121345 01/10
4. System overview
1 Electrical supply unit
2 Vacuum controller
3 Vent valve at vacuum
controller
4 On/off switch of vacuum
controller
5 Pump vent valve
6 Vacuum valve
7 High performance con-
denser
8 Hose connector
9 Angled nozzle for coolant
10 Spring clamp
11 Flask for condenser
12 Support for high perform-
ance condenser
13 Locating pin for pump
14 Separator
15 Holder for Separator
16 Support for vacuum control-
ler
17 Baseplate
18 Vacuum pump
19 On/off switch of pump

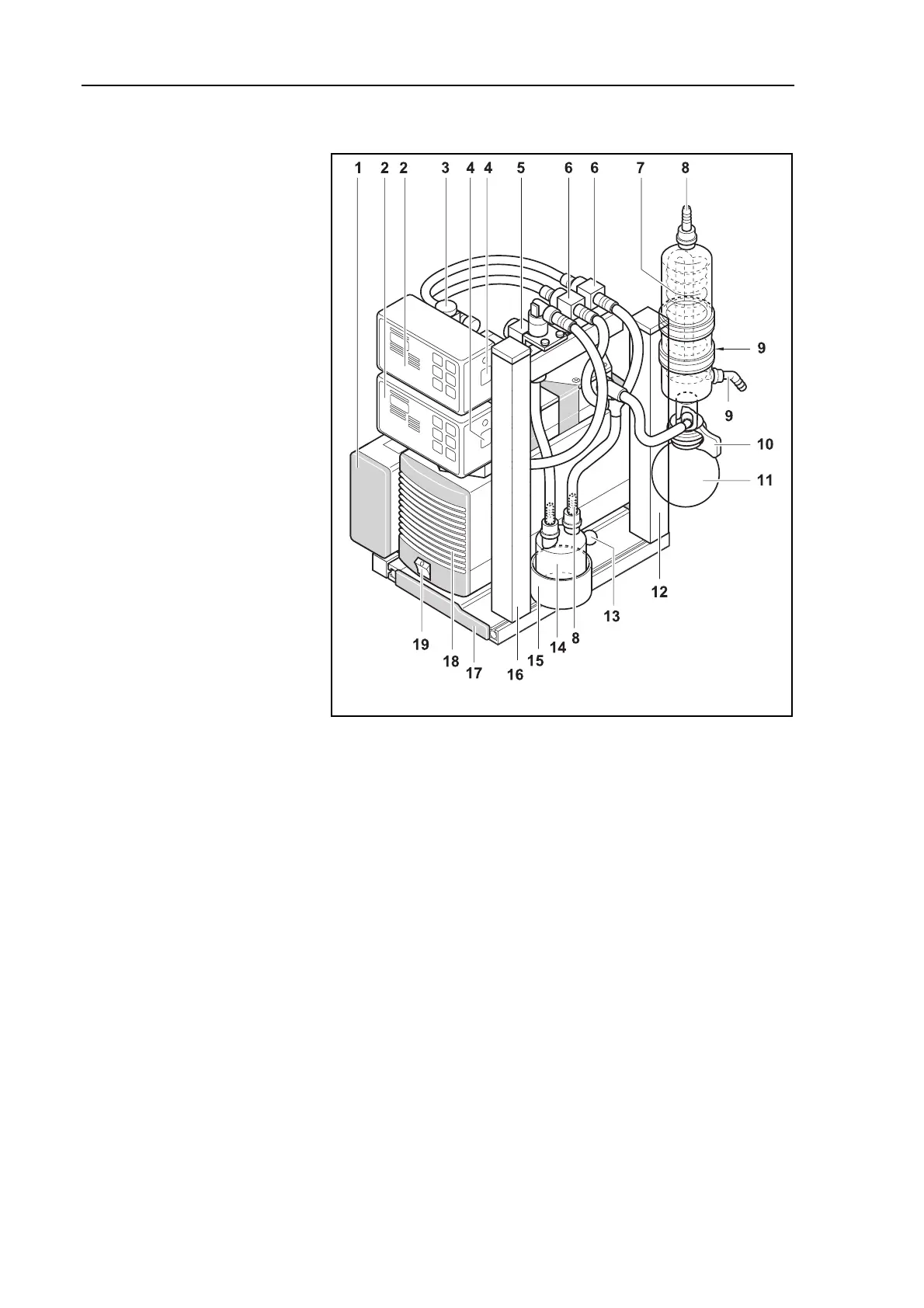

Fig. 2: Full expanded LABOPORT System SCC..., for example pump
model N 840.3 FT.18 (symbolic)
