Kodak 2100 - Floor-Mounted Unit (Optional)

9/2007 SM700_K2100_03_en 2-5
Floor-mounted Unit (Optional)

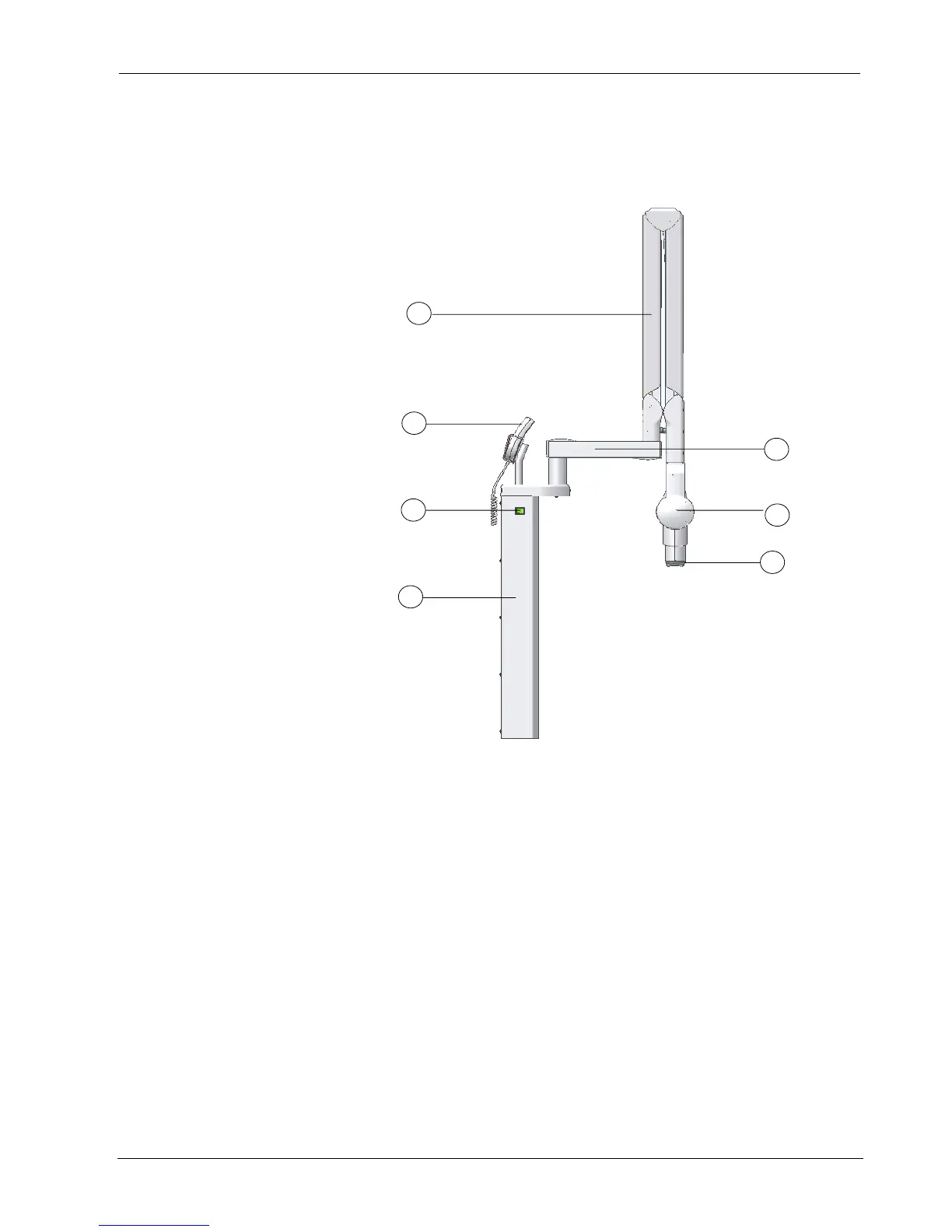

Figure 6. KODAK 2100 Intraoral X-ray System floor-mounted unit
a. High-frequency x-ray generator
b. Floor column containing the high-frequency x-ray generator’s
control electronics
c. Timer/control unit for the x-ray generator
d. Scissor arm
e. On/off switch with built-in light
f. Rectangular collimator
g. Extension arm
