9/2007 SM700_K2100_03_en 2-1
2
System Overview
Components

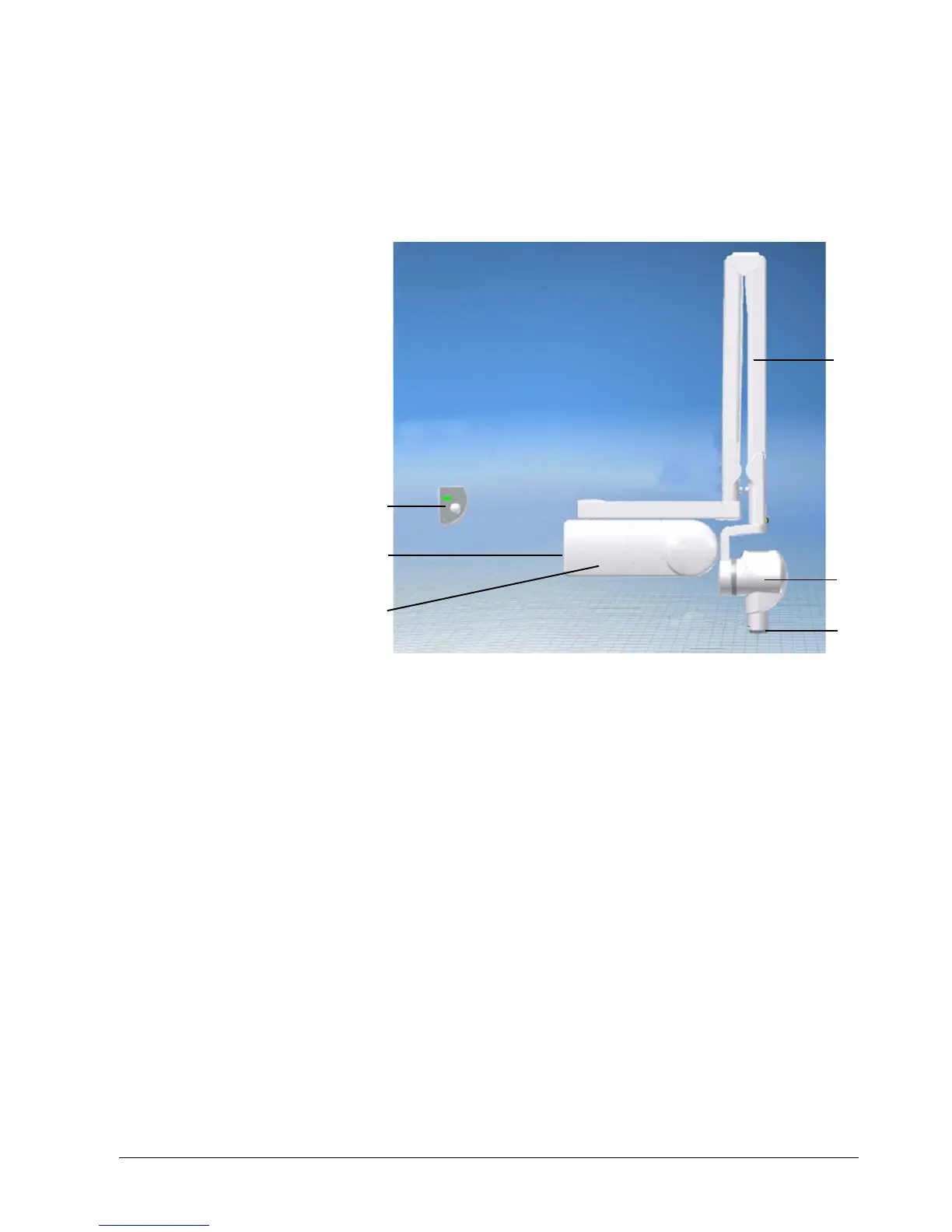

Figure 1. KODAK 2100 Intraoral X-ray System
a. High-frequency x-ray generator
• Transformer and associated electronics, and an oil-bathed x-ray tube
• Beam-limiting device
• Radiation diameter – 6 cm (2 3/8 in.)
•
Distance from x-ray tube focal spot to skin – 20 cm
(7 7/8 in.
)
• Handle to facilitate positioning
b. Wall framework
• Contains the high-frequency generator’s control electronics designed to
support its mechanical stand
c. Control timer unit
• Selection of exposure times
• Self-test of the microprocessor each time the unit is activated
• Alarm during incorrect operation
• Digital icon that reduces the exposure time range if you are using a
Kodak RVG sensor
a
b
d
f
c
e
