Equipped X-ray Generator

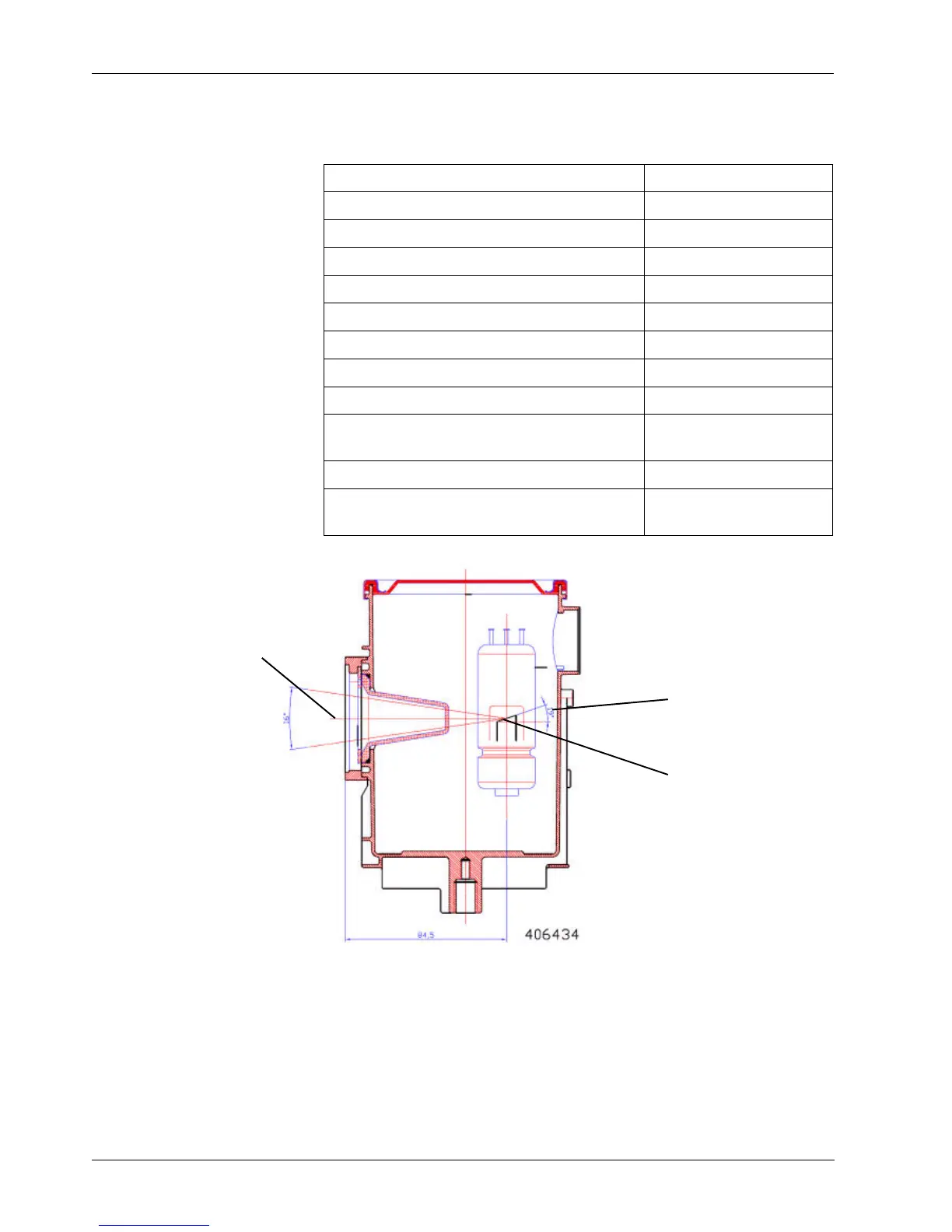

Figure 16. X-ray generator
a Reference axis
b Target angle
c Focal point
Table 15. Equipped x-ray generator
IEC standard 60601-2-28 (1993) Conform
Type of protection against electric shocks Class I
Degree of protection against electric shocks Type B
Rated value of inherent filtration 1.5 mm (0.059 in.) eq. Al
Rated value of additional filtration 1.0 mm (0.039 in.) eq. Al
Rated value of total filtration 2.5 mm (0.098 in.) eq. Al
Beam-limiting cone, focal spot/skin distance 20 cm (7 7/8 in.)
Maximum accumulated heat 32,500 J
Maximum continuous thermal dissipation 7 W
Amount of leaking radiation at maximum rate
during one hour of use
< 0.25 mGy
Maximum field of symmetrical radiation 6 cm (2 3/8 in.) diameter
Position and tolerances of the focal point on the
reference axis
0 mm +/-0.5 mm (0.020 in.)
a
c
b
