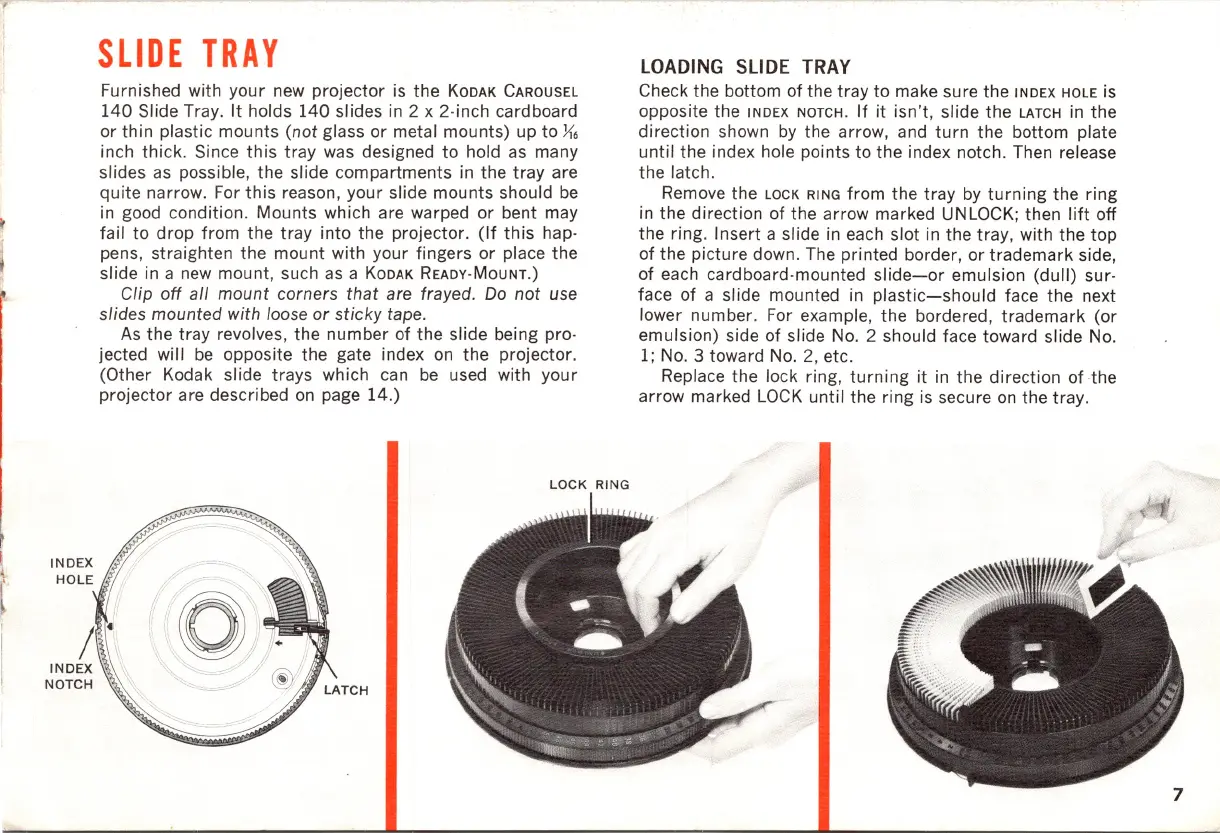

SLIDE TRAY
Furnished with your new projector is the KODAK CAROUSEL
140 Slide Tray. It holds 140 slides in 2 x 2·inch cardboard
or thin plastic mounts
(not glass or metal mounts) up to J{6
inch thick. Since this tray was designed to hold as many
slides
as possible, the slide compartments in the tray are
quite narrow. For
this reason, your slide mounts should be
in good condition. Mounts which are warped or bent may
fail
to drop from the tray into the projector. (If this hap·
pens, straighten the mount with your fingers or place the
slide
in a new mount, such as a KODAK READY· MOUNT.)
Clip off all mount corners that are frayed. Do not use
slides mounted with loose or sticky tape.
As the tray revolves, the number of the slide being pro-
jected will
be opposite the gate index on the projector.
(Other Kodak slide trays which can be used with your
projector are described
on page 14.)
LOCK RING
LOADING SLIDE TRAY
Check the bottom of the tray to make sure the INDEX HOLE is
opposite the
INDEX NOTCH. If it isn't, slide the LATCH in the
direction shown
by the arrow, and turn the bottom plate
until the index hole points to the index notch. Then release
the latch.
Remove the LOCK RING from the tray by turning the ring
in the direction of the arrow marked UNLOCK; then
lift off
the ring. Insert a slide
in each slot in the tray, with the top
of the picture down. The printed border, or trademark side,
of each cardboard-mounted
slide-or emulsion (dull) sur-
face of a slide mounted in plastic-should face the next
lower number. For example, the bordered, trademark (or
emulsion) side of slide
No.2 should face toward slide No.
1; No.3 toward No. 2, etc.
Replace the lock ring,
turning it in the direction of the
arrow marked
LOCK until the ring is secure on the tray .
