Scanner components The Kodak i2800 and i2600 Scanners have a graphical display and
look like the illustration below. The Kodak i2400 Scanner is the same as
the illustration below except there is a function window which is smaller
than the graphical display.

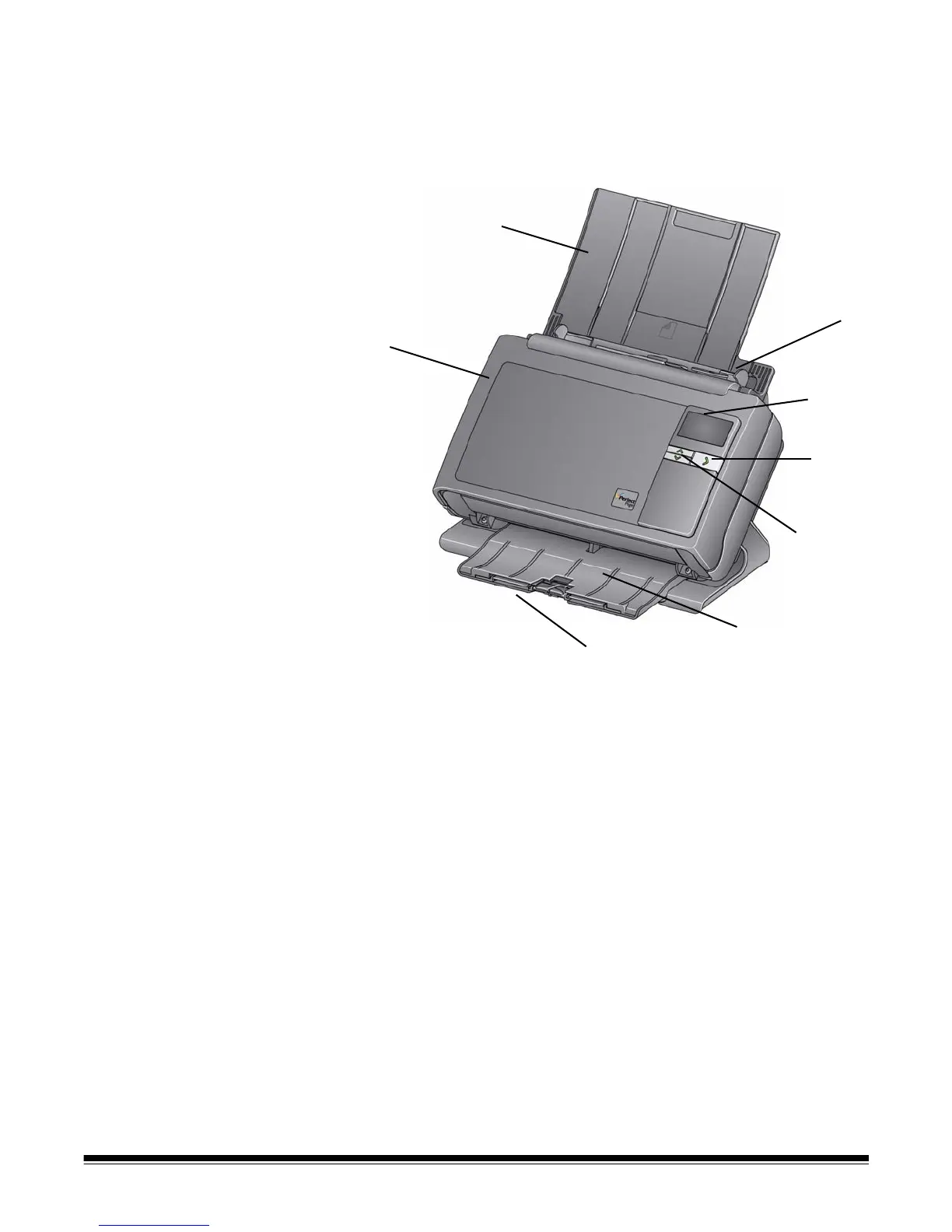

Front view
1 Scanner cover — provides access to internal components; such as,
the imaging area and the feed and separation modules.
2 Input tray — depending on your scanner model, the input tray holds
up to the following number of documents (20 lb./80 g/m
2
):
i2400: 50
i2600: 75
i2800: 100
The input tray can be extended to accommodate documents longer
than 27.9 cm (11 inches).
3 Side guides — can be moved in and out to accommodate the size
of the documents you are scanning.
4 Function window/Graphical display — displays 0 - 9. These
numbers correspond to a predefined function. U or E is displayed if
an error is encountered. If you have a Kodak i2600 or i2800 Scanner,
messages will also be displayed.
5 LED/Start button — illuminates to indicate scanner status (i.e.,
power on) and launches the selected application that is associated
with the displayed number in the Function window.
1
2
3
4
5
6
7
8
