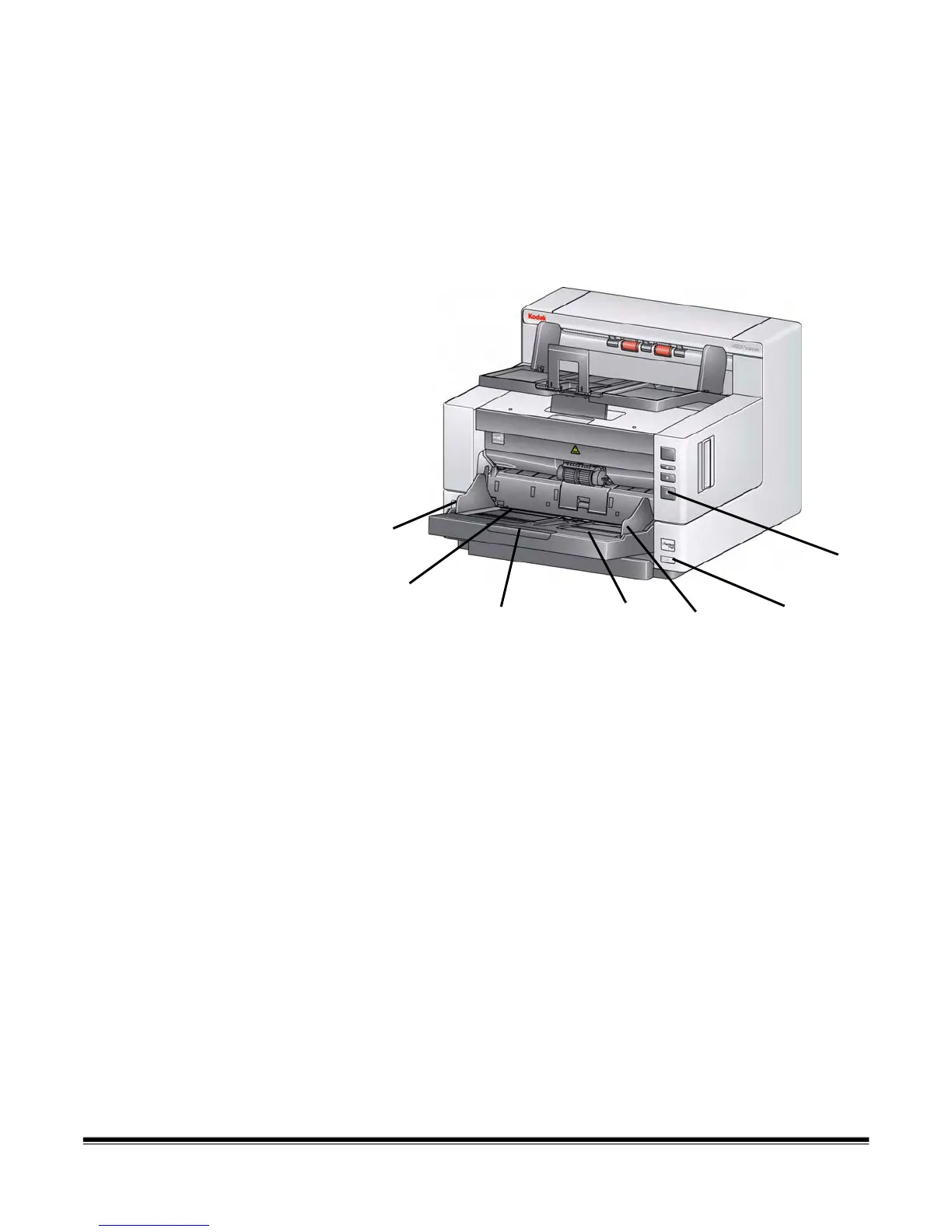

11 Stop/Pause button — press once to temporarily pause scanning (the
Start/Resume button can then be used to resume scanning). Press twice
to stop scanning. The red LED on this button indicates a possible error
condition has been detected (i.e., document jam).
12 Power button — press to turn the scanner on or press and hold for one
second to turn the scanner off.
13 Input Elevator side guides — slide the guides in or out to accommodate
the document size you want to scan. Side guides can be left-, center- and
right-adjusted to accommodate documents of various widths. The side
guides can also be locked into position if desired.
14 Input Elevator— holds up to 500 documents (20 lb/75 g/m
2
) in place.
The input elevator can be set to accommodate stacks of 25-, 100-, 250-
or 500-documents. The input elevator can be folded up when it is not in
use.
15 Input Elevator extender — pull this extender out to accommodate
documents longer than 35.6 cm (14 inches).
16 Print location indicators — there are detents at the edge of the input
elevator to indicate where the print positioning will be on the paper.
17 Gap release toggle switch — push in to adjust the space between the
feed module and separation module for documents that require special
handling.
