Koden CVS-833 - External Dimensions and Weight

CVS-833/833C Chapter 3
Specification
3.5 External dimensions and weight
External dimensions: Width x Height x Depth
External dimensions: 241mm x 238mm x 123mm
Weight: 3.5 kg (7.7lb)
Front side

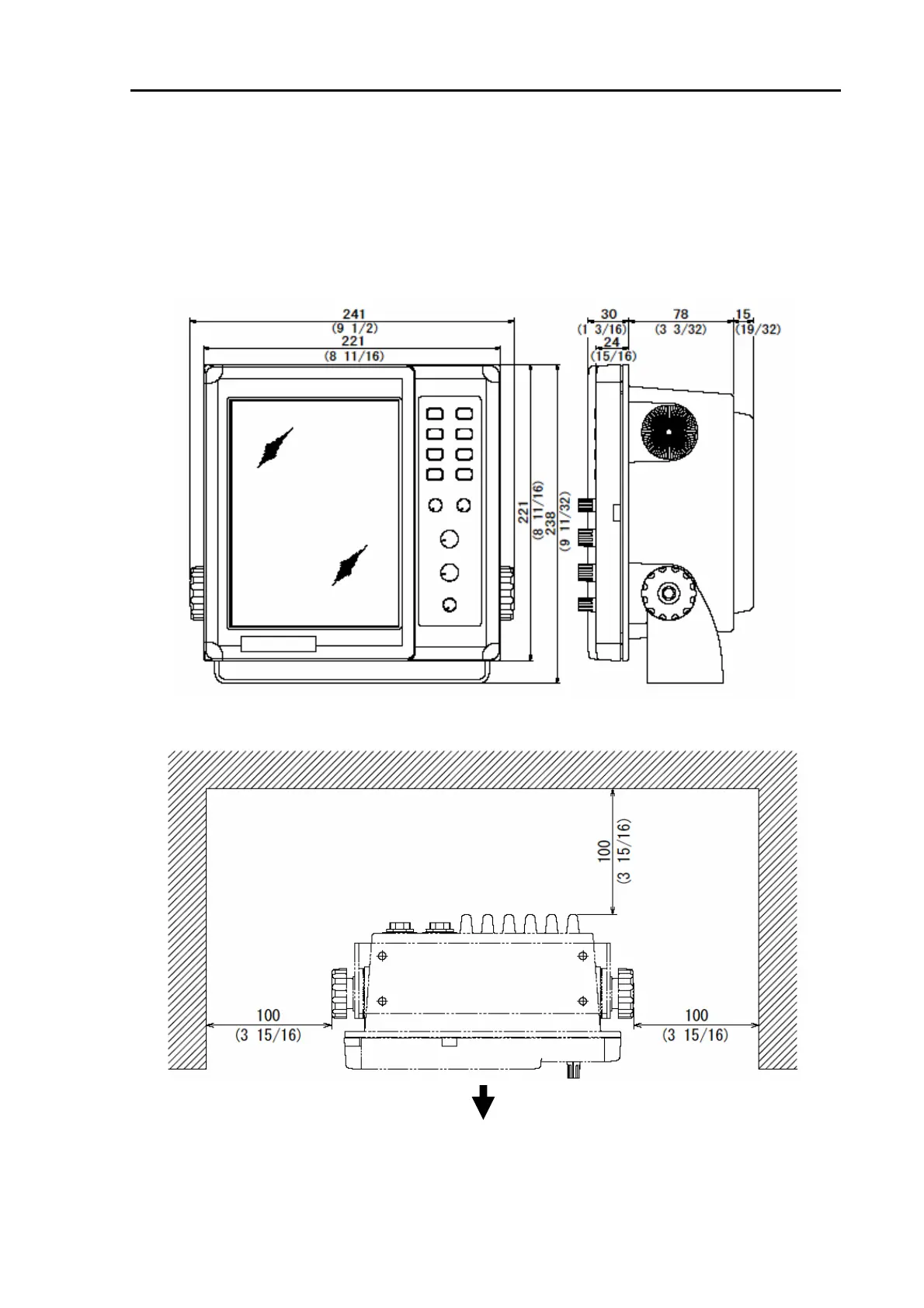

Figure 3.1External dimensions of the Receiver-Indicator unit
93132902-01 3-3
