CVS-833/833C Chapter 5
Basic Operation
5.5.1 Default display

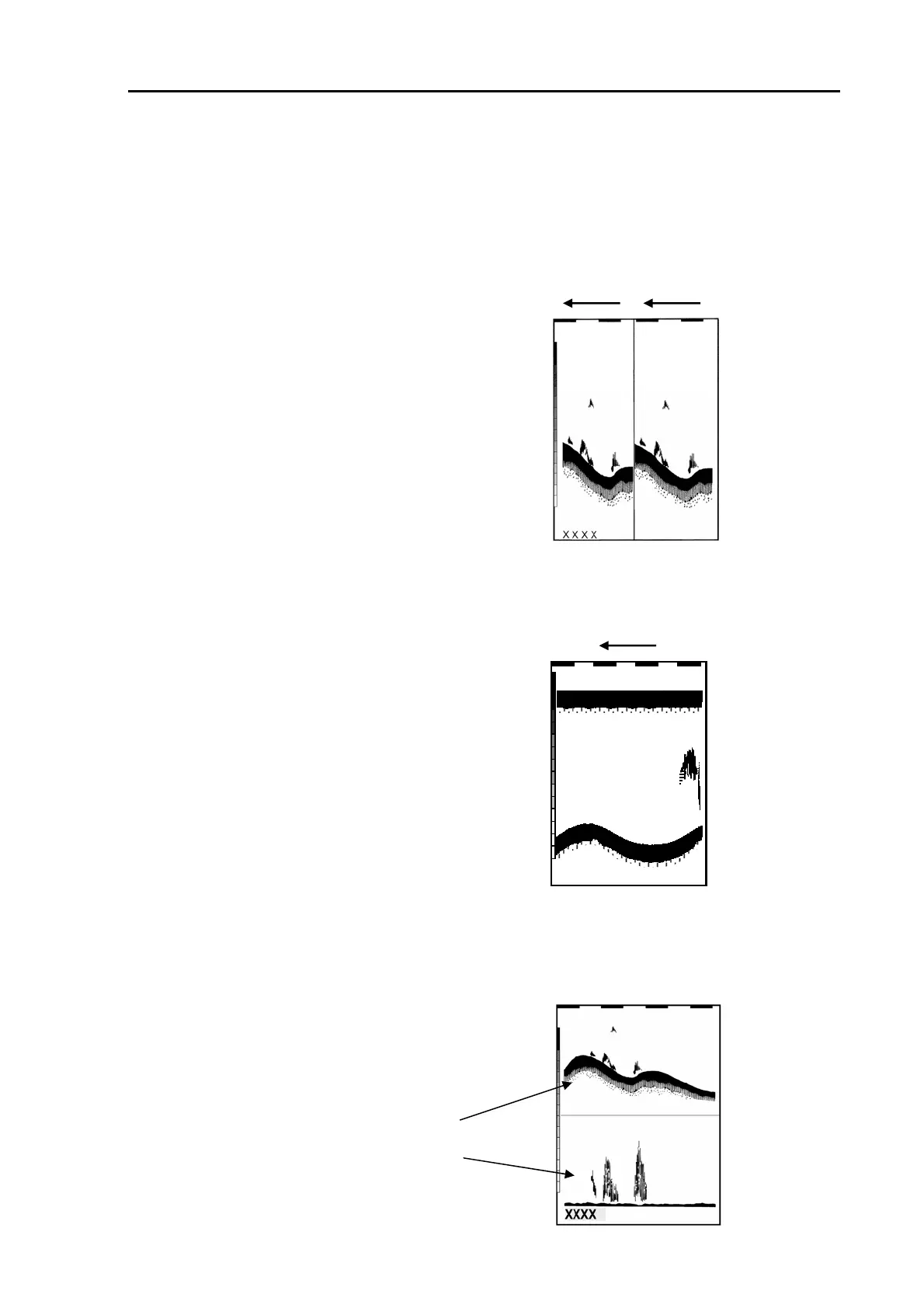

The following figures illustrate the default displays, which are selected by the image mode switch. To
change the display, refer to Para 6.11.3 “Setting display mode”.
5.5.1.1 DUAL FREQ
50kHz
Picture scrolls from right to left
H
L
5.5.1.2 NORMAL (HF/LF)
Displays a dual frequency images in
normal mode, 50 KHz at the left side
and 200 KHz at the right side.
A single screen of High Frequency (200 KHz) or
Low Frequency (50 KHz) image.
Normal Dual frequency
Picture scrolls from right to left.
5.5.1.3 NORMAL/BTM (HF/LF)
Displays normal display (High or Low, selected by
the Image Mode switch) on the upper half and
bottom zoom display on the lower half side of the
screen.
Normal display
Bottom zoom display
