5.5.2.2 NORMAL (HF/LF)

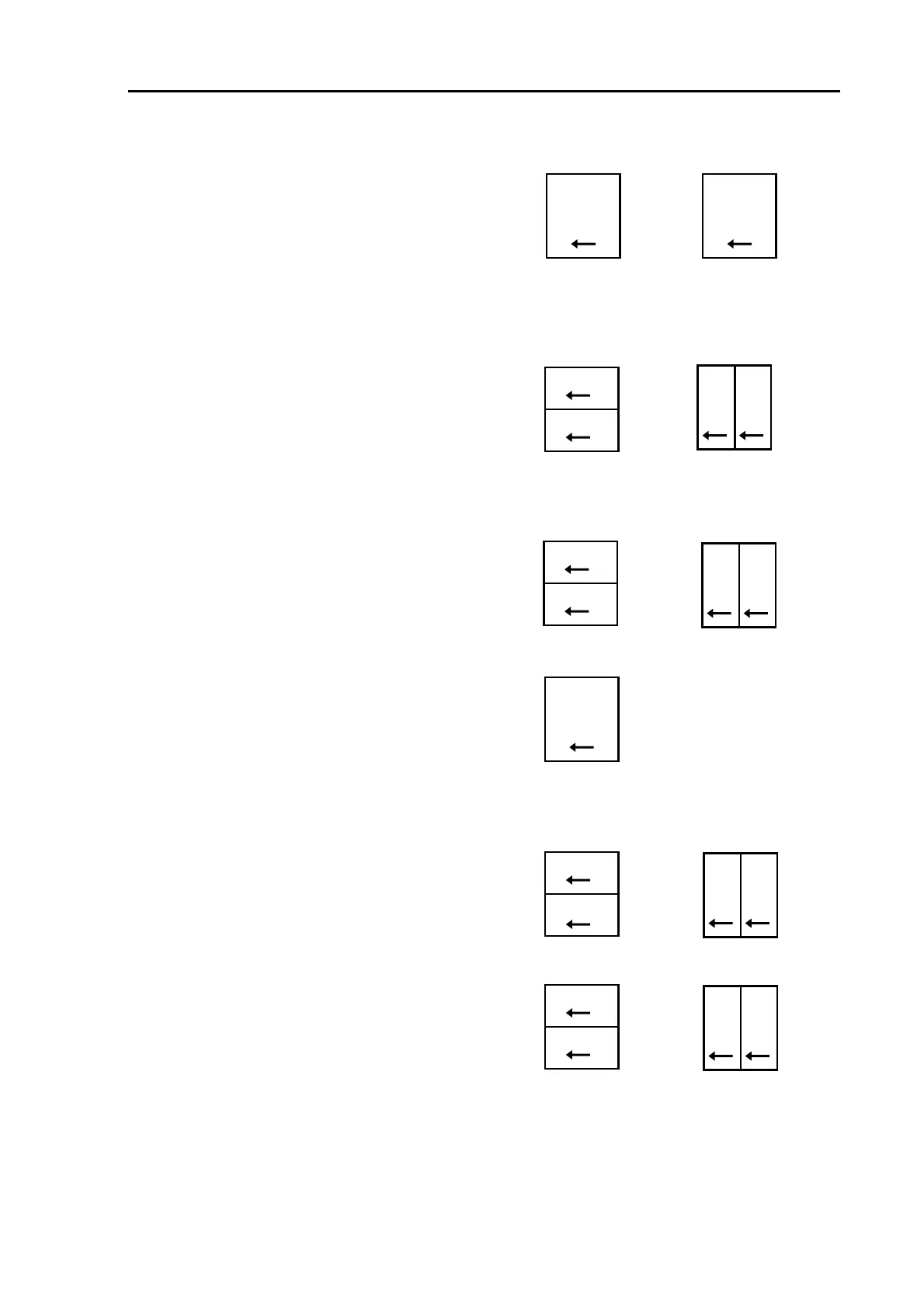

NORMAL (HF): A single High frequency image
HIGH
High freq normal
LOW
Low freq normal
NORMAL (LF): A single Low frequency image
5.5.2.3 NORM/BTM (HF)
ZOOM
HIGH
ZOOM | NORM
ZOOM
HIGH
NORM / ZOOM: Horizontally split, one way scroll
ZOOM | NORM: Vertically split, one way scroll
ZOOM / NORM: Horizontally split, one way scroll
NORM / ZOOM
NORM | ZOOM: Vertically split, one way scroll
ZOOM
Bottom Zoom
ZOOM / NORM
ZOOM
HIGH
ZOOM
HIGH
NORM: High frequency Normal Image.
ZOOM: Sea bottom fixed zoomed or
Sea bottom sediment zoom.
NORM | ZOOM
Open Menu7 and select the BTM Zoom image.
The Bottom Zoom image is shown in a single display.
HIGH
ZOOM
NORM / ZOOM
ZOOM
HIGH
ZOOM | NORM
5.5.2.4 NORM/ZOOM (HF)
NORM / ZOOM: Horizontally split, one way scroll
ZOOM | NORM: Vertically split, one way scroll
ZOOM / NORM: Horizontally split, one way scroll
NORM | ZOOM: Vertically split, one way scroll
NORM: High frequency Normal image
ZOOM: Partial zoom image
HIGH
ZOOM
NORM | ZOOM
ZOOM
HIGH
ZOOM / NORM
