CVS-833/833C Chapter 4
Installation

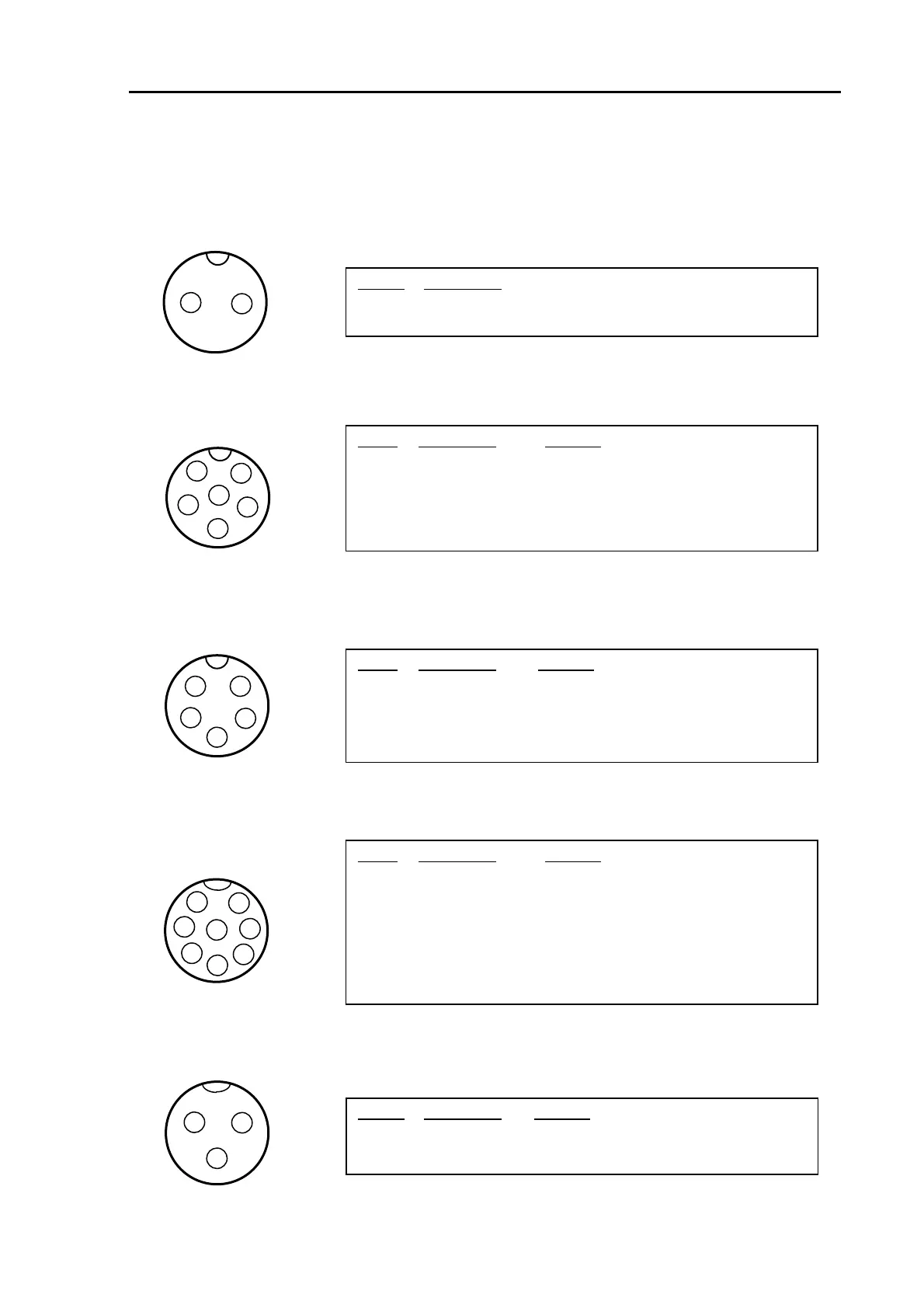

The pinouts of each connector are shown in the following figures, which is viewed from the top side.
J1
(10.8 – 31.2 VDC)
2
1
Pinout Signal name
1 DC Mains (+)
2 DC Mains (-)
J2
(SER DATA)
1
2
4
5
3
6
Pinout Signal name Remarks
1 GND
2 SER OUT(SIG) Serial signal out (+OP)
3 SER OUT(RTN) Serial signal out (-OP)
4 SER IN(SIG) Serial signal in (+IP)
5 SER IN(RTN) Serial signal in (-IP)
6 NC
1
2
3
4
5
J3
(EXT F/F)
Pinout Signal name Remarks
1 EXT.TRIG Sync trigger input from external sounder
2 GND Ground
3 Zero TRIG OUT Zero trigger output
4 NC
5 NC
1
3
J5
(TD)
2
Pinout Signal name Remarks
1 TD1 Transducer signal IN/OUT
2 TD SH Transducer signal (Shield)
3 TD0 Transducer si
g
nal IN/OUT
1
6
2
3
4
5
7
8
J4
(TRIDUCER
/SPD&TEMP)
Pinout Signal name Remarks
1 SPD (Pulse) Speed pulse input
2 SPD (+B)) + DC supply for speed sensor
3 TD Transducer signal IN/OUT
4 SH Transducer signal (Shield)
5 TD Transducer signal IN/OUT
6 TEMP Temperature signal in
7 TEMP Temperature signal in
8 SPD (GND) Ground
