20
Setting of ≪Core Diameter≫ and ≪Blade Move Back≫ of a ≪Basics≫ screen is usually applied
to a Front and a back end likewise, but when You’d like to establish it separately respectively, it's
used.

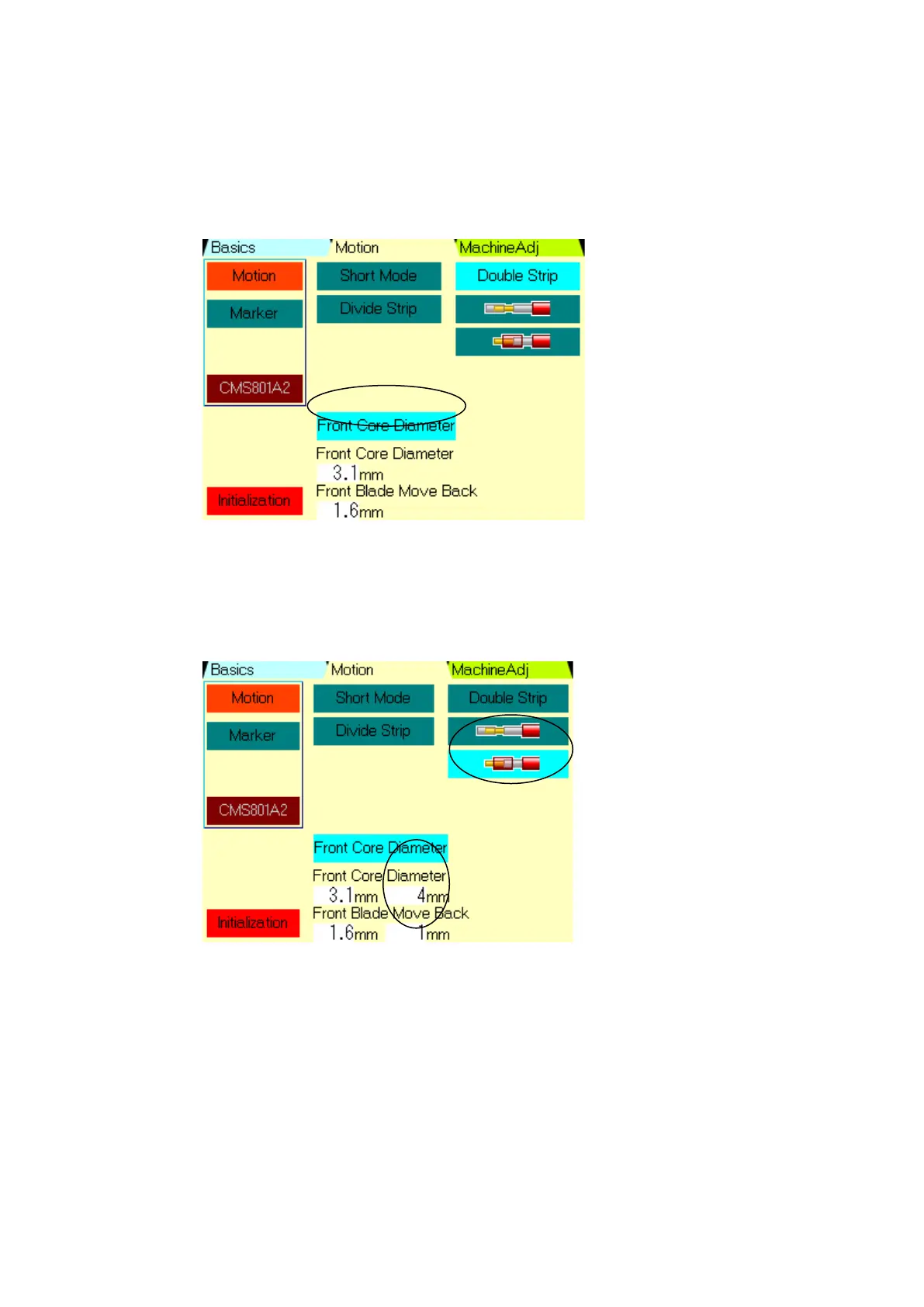

On the≪Motion≫screen,Set the ≪Front Core Diameter≫
Select≪Front Core diameter≫, ≪Front Core Diameter≫≪Front Blade Move Back≫ is shown to
a screen. It can be established by the 0.01mm unit respectively.
≪Front Core Diameter≫ and ≪Front Blade Move Back≫ of outside insulation can also be
established now at the time of setting of <<Double Strip>>.
In case of setting on an upper figure ,A front core diameter is 3.1mm and Blade Move Back is 1.6mm,
and A diameter of outside insulation is 4mm, and Blade Move Back of outside insulation is 1mm.
