Kohler Decision-Maker 3000 Operation

TP-6694 9/20 137
SiteTech I/O Name
Optional Dry Contact Board
Connection
Analog Input C1
P36 Analog Input VN1/VP1
Analog Input C2
P36 Analog Input VN2/VP2
Digital Input C1
Digital Input C2
Digital Input C3
Digital Input C4
TB6 DI1
TB6 DI2
TB6 DI3
TB6 DI4
Digital Output C1
TB7 K1
Digital Output C2
TB7 K2
Digital Output C3
TB8 K3
Digital Output C4
TB8 K4
Digital Output C5
TB9 K5
Digital Output C6
TB9 K6
Digital Output C7
TB10 K7
Digital Output C8
TB10 K8
Digital Output C9
TB11 K9
Digital Output C10
TB11 K10
Digital Output C11
TB12 K11
Digital Output C12
TB12 K12
Digital Output C13
TB13 K13
Digital Output C14
TB13 K14

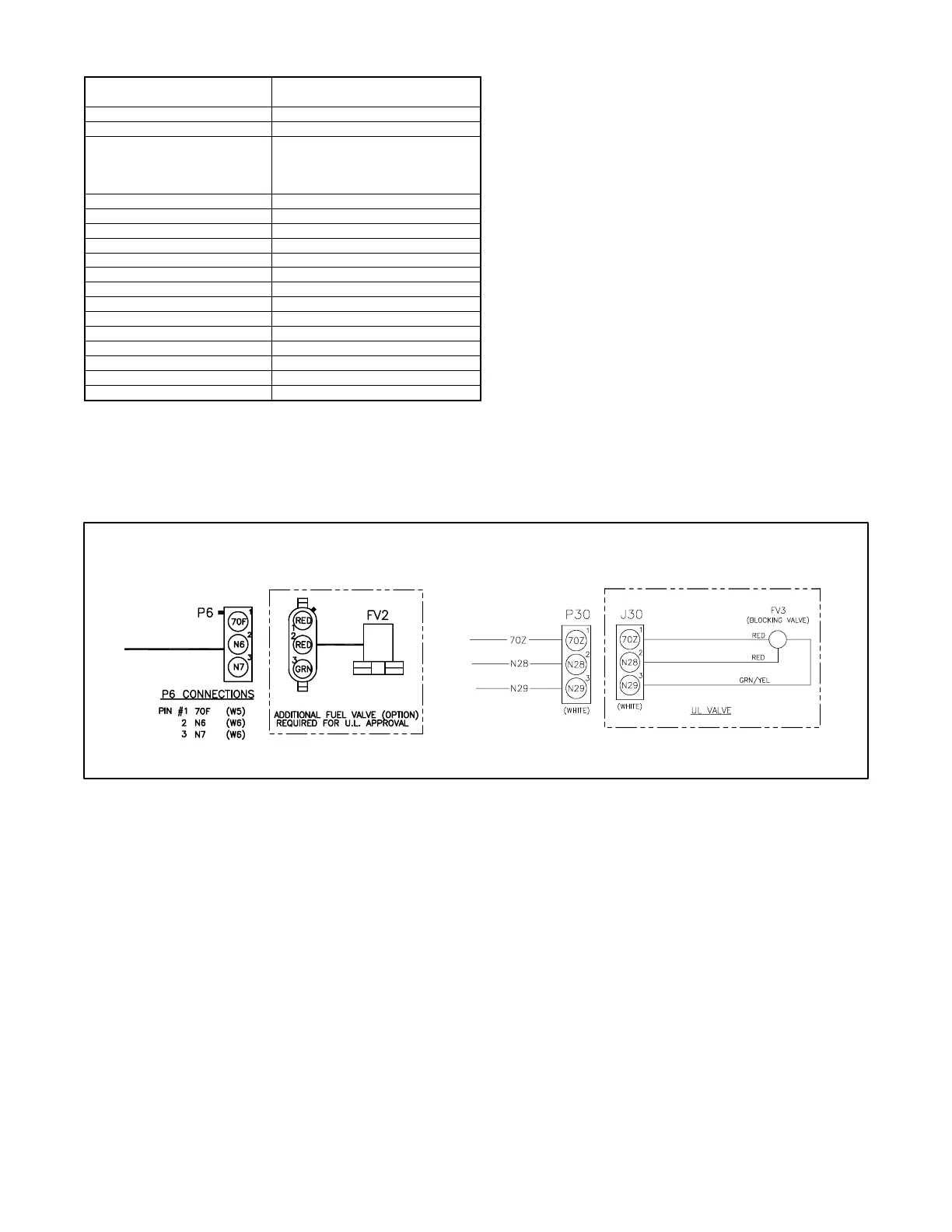

Figure 67 Optional Inputs and Outputs with Dry Contact Kit
6.1.5 Gas Fuel Valve Kit
This section provides the wiring information for an additional gas fuel valve kit required for UL Approval. See the figure below.
Refer to the respective generator set wiring diagrams for additional information and for LP liquid applications.
Figure 68 Gas Fuel Valve Kit Connections
Typical for PSI, GM, and Doosan Engines KG80–KG125, KG80R–KG125R
(KG6208TA Engine) Connections
Note: UL fuel valve is standard on KG40-KG60 (KG6208).
