34 TP-6694 9/20

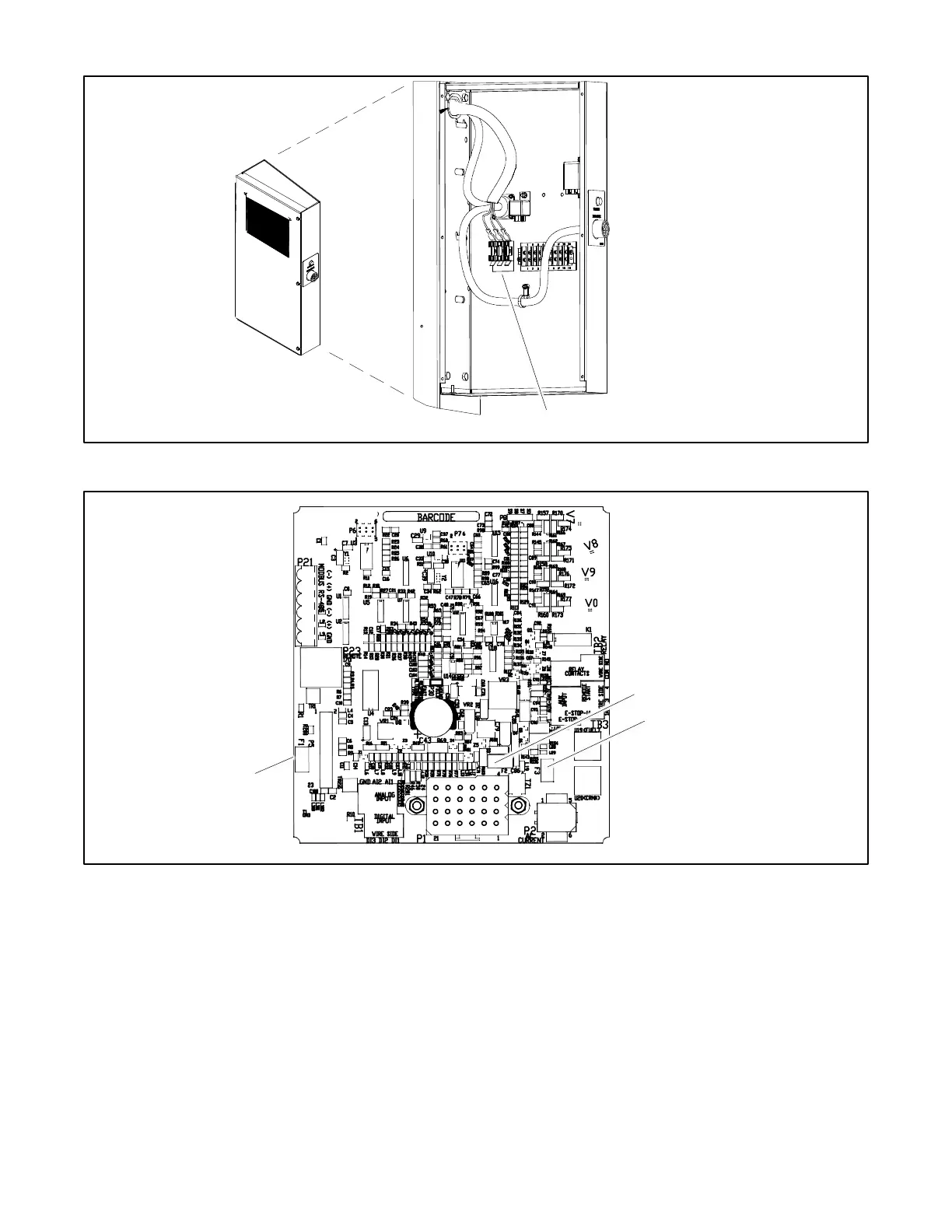

Figure 8 AC Circuit Fuses in Control Box
Figure 9 Controller DC Fuses
1.3 Controller Logic Specifications
The controller logic specifications section is an overview of the various features and functions of the controller. Certain features
function only when optional accessories are connected. See the section titled: Operation, for details.
The default selection time delays and digital outputs are factory set and adjustable. Data entries require using a PC and
SiteTech™ software. See the SiteTech™ software operation manual for details.
Inhibit Time Delay. The inhibit time delay is the time period following crank disconnect during which the generator set stabilizes
and the controller does not detect a fault or status event. Select the desired inhibit time delay from 0 to 60 seconds.
Time Delay (Shutdown or Warning). The time delay follows the inhibit time delay. The time delay is the time period between
when the controller first detects a fault or status event and the controller warning or shutdown lamp illuminates. The delay
prevents nuisance alarms. Select the desired time delay from 0 to 60 seconds.
